corresponding axes will move a fixed length, unless the scope is overstepped.
8.3.5 Laser set+

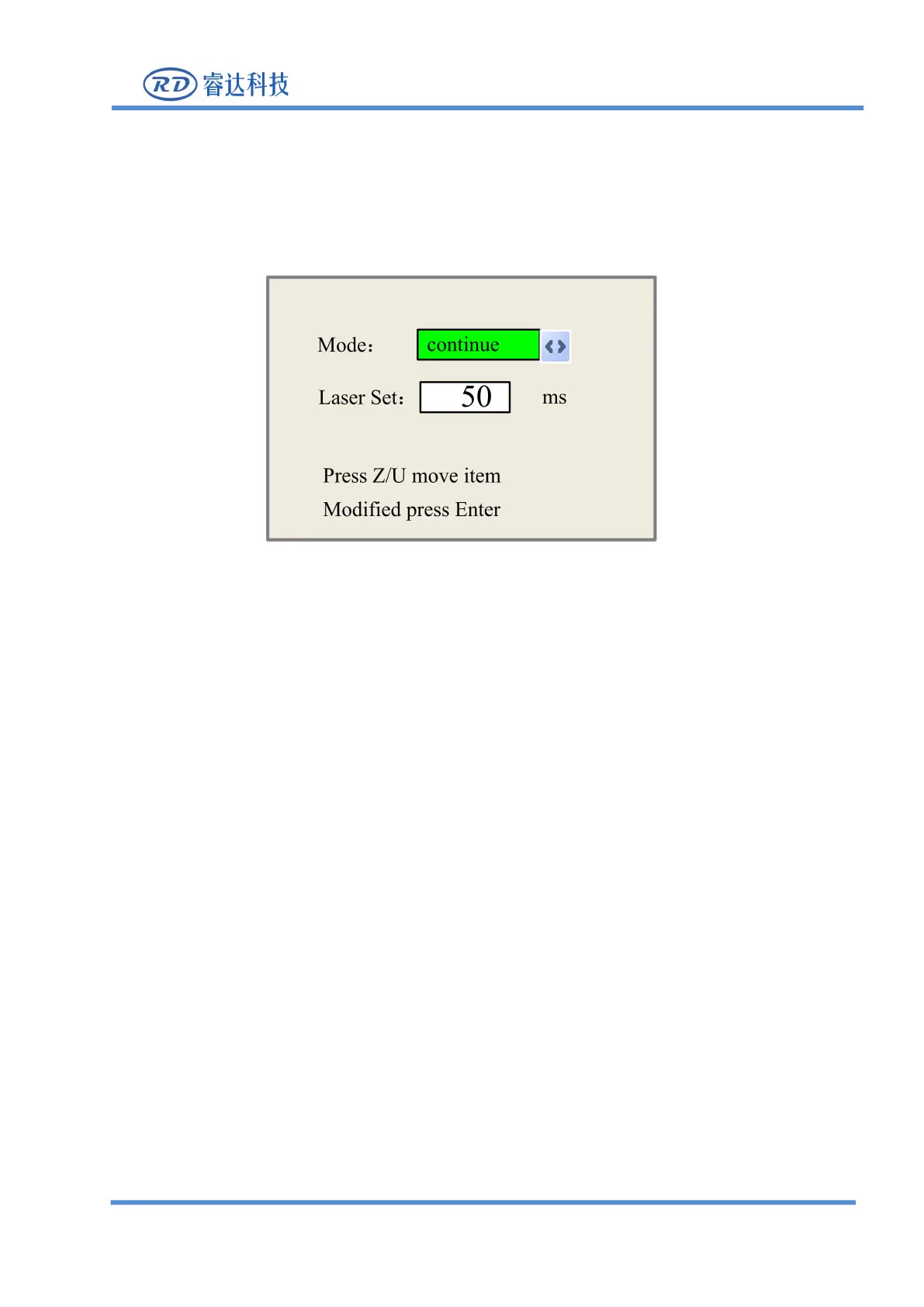

When the green block is on this item, push the
“
Enter
”
key to show as below:
Push “Z/U” key to move the green block, and when the green block is on the “Mode” item, push
“X+-“ keys to select the anticipant value, “Continue” or “Manual”. When “Continue” item is
selected, then the
“
Laser Set
”
item is not valid, on that time, push the Laser key to splash the
enabled lasers, and when Laser key is loosed, then the lasers will finish splashing. When the
Mode item is “manual”, then pushing the Laser key one time, the enabled lasers will splash a
fixed time.
8.3.6 Origin set+
When the green block is on this item, push the “Enter” key to show as below:
Figure 8.3-4
