Push “Z/U” key to move the changing item, then push “X+/-” keys and “Y+/-” keys to
change the value, when all the IP value and the Gateway value are changed, push “Enter”
key to validate the change, or “Esc” key to invalidate the change.
8.3.12 Diagnoses

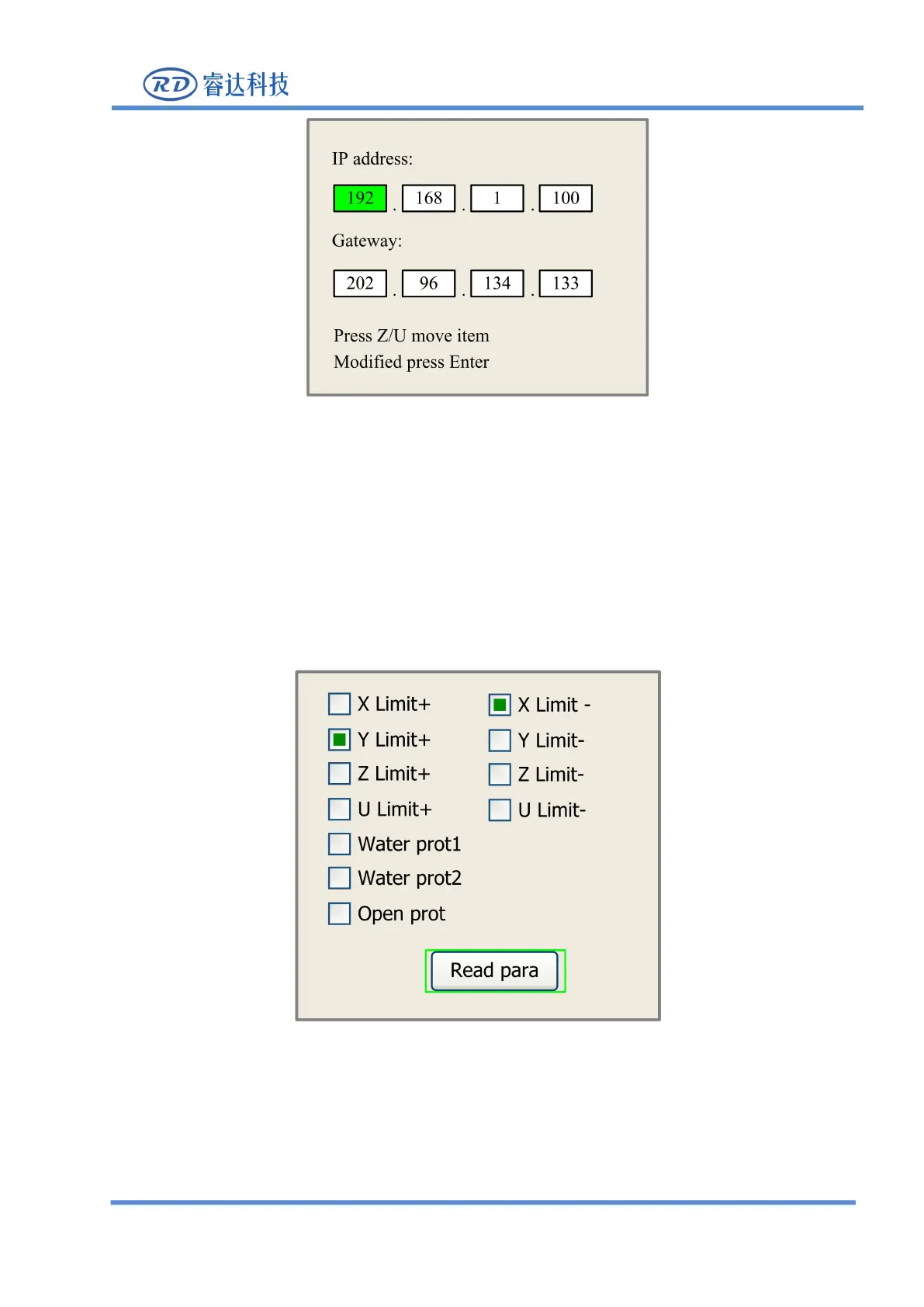

If the “Diagnoses” item is pressed, the system will show as below:
This interface shows some system input information, such as limiter status, the status of the
water protecting, and the status of the foot switch etc.. When the input is validated, the color
frame will be green, otherwise it’s gray.
Figure 8.3-8
Figure 8.3-9
