RuiDa RDC644XG User Manual

User
’
s Manual of RDC644XG Control System
SHENZHEN RUIDA TECHNOLOGY
34

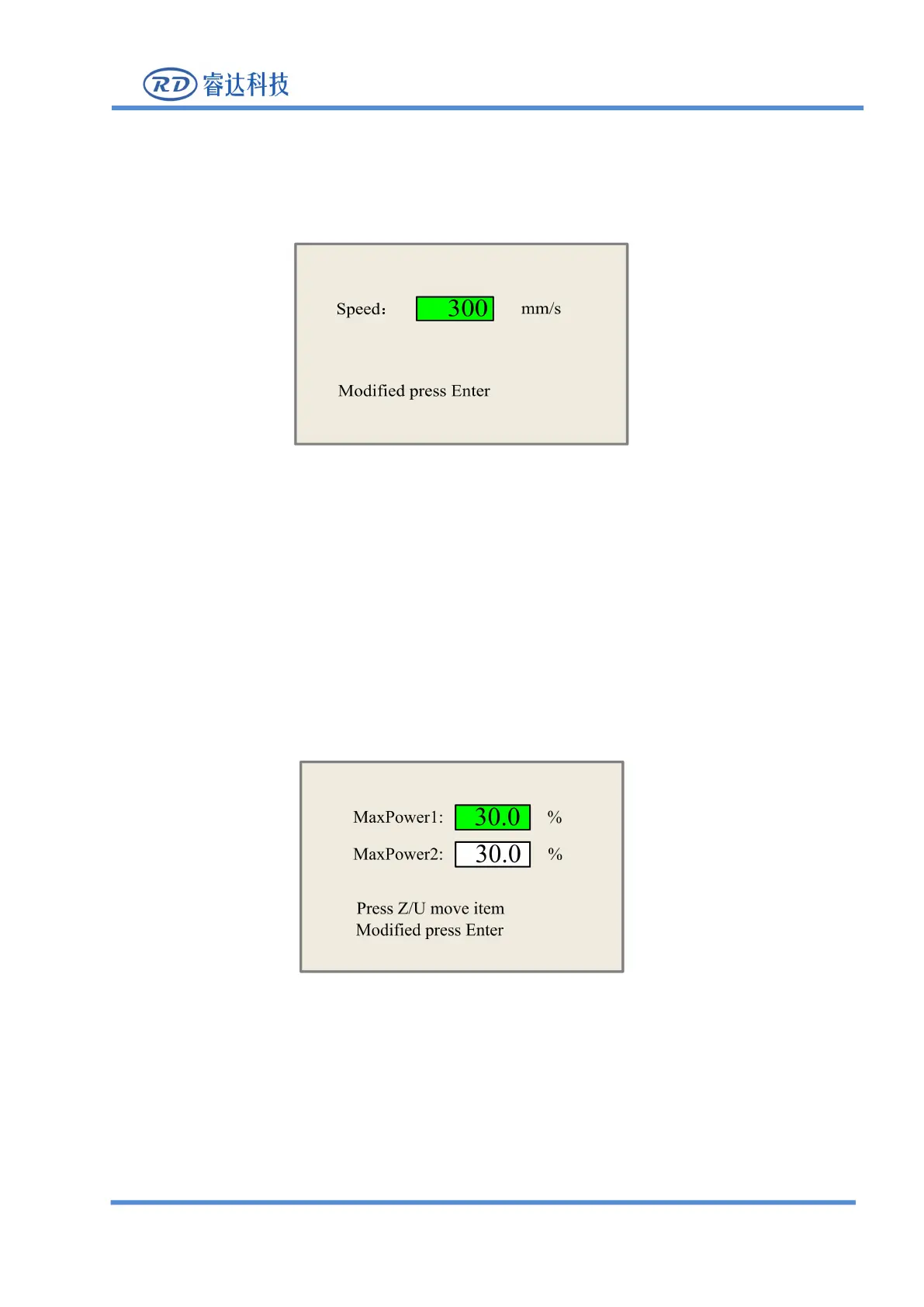

8.2.2 Speed key
Push the
“
Speed
”
key when the screen is on the main interface, it will show as below:
Push the “X+/-“ Keys to move the cursor in the numeral area, and push the “Y+/-” keys to
change the value, then push the “Enter” key to save the change, push the “Esc” key to invalidate
the change.
8.2.3 Max/Min power keys
Push the “Max Power” or the “Min Power” keys when the screen is on the main interface, it will
show as below:
Figure 8.2-2
Figure 8.2-3

RuiDa RDC644XG Specifications

General

Brand	RuiDa
Model	RDC644XG
Category	Controller
Language	English
