Web-based Configuration Guide Basic Management
35

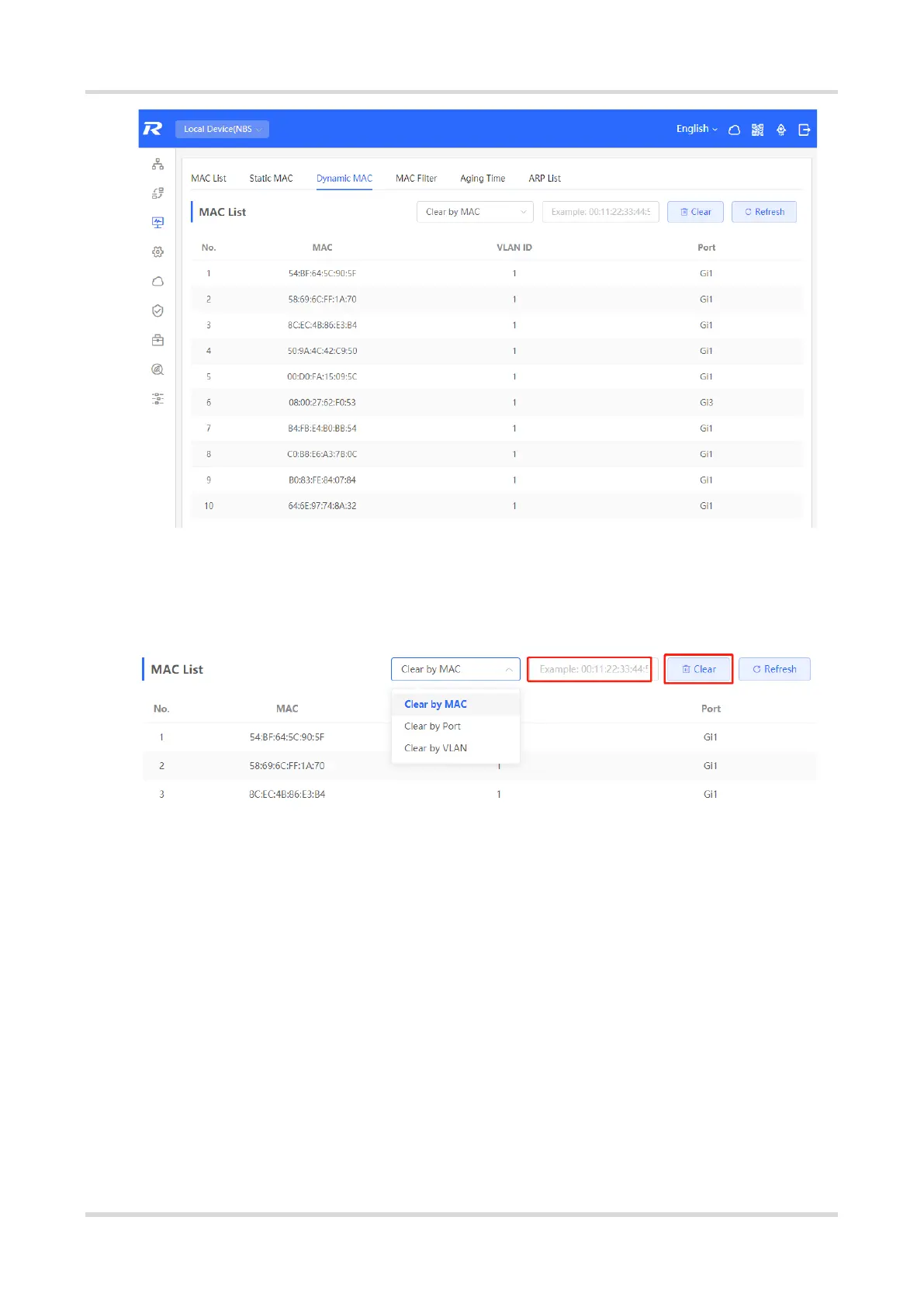

Delete dynamic MAC address: Select the clear type (by MAC address, by VLAN, or by port), enter a string for
matching the dynamic MAC address entry, and click Clear. The device will clear MAC address entries that meet
the conditions.
3.3.4 Configuring Static MAC Binding
The switch forwards data based on the MAC address table. You can set a static MAC address entry to manually
bind the MAC address of a downlink network device with the port of the device. After a static address entry is
configured, when the device receives a packet destined to this address from the VLAN, it will forward the packet
to the specified port. For example, when 802.1x authentication is enabled on the port, you can configure static
MAC address binding to implement authentication exemption.
