45

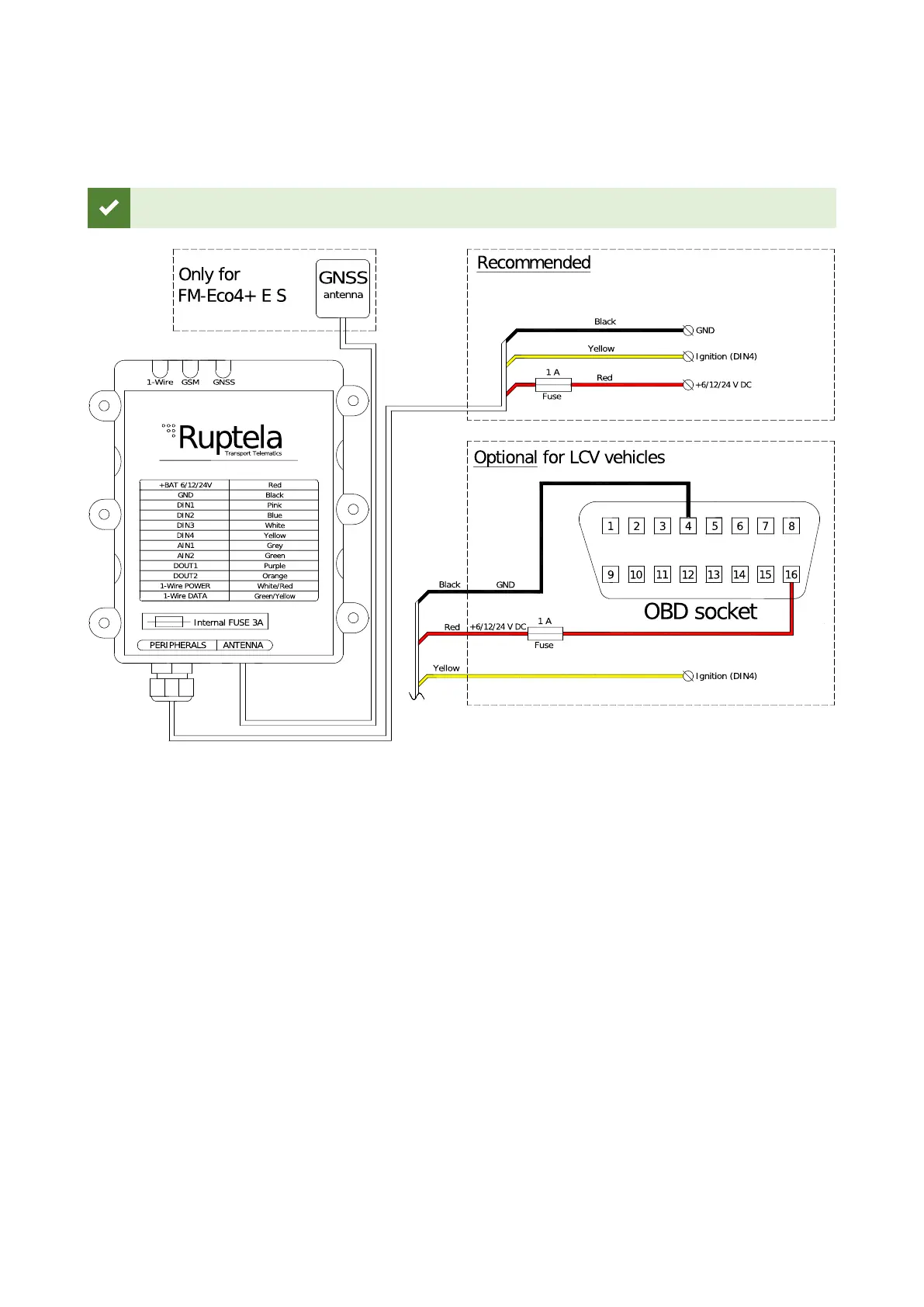

8.5 Wiring Diagram (IP67 Housing)
Power input: 6-31.5 V DC.
We recommend using an external 1 A fuse.
