O&M Manual –90E1720004
Section 5 Installation Page 18 of 52
Starting from
inside, wrap
cable outwards
2. Wrap the rope several times (Figure 8) until the space between the conductors are
completely filled.
a. Weave the final rope loop underneath the
previous loop.
b. Bring the rope through the right-hand space.
c. Pull the rope taut.
3. Wrap the rope several times until the space
between the conductors (Figure 9) are
completely filled.
a. Weave the final rope loop underneath the
previous rope loop.
b. Pull the rope taut.

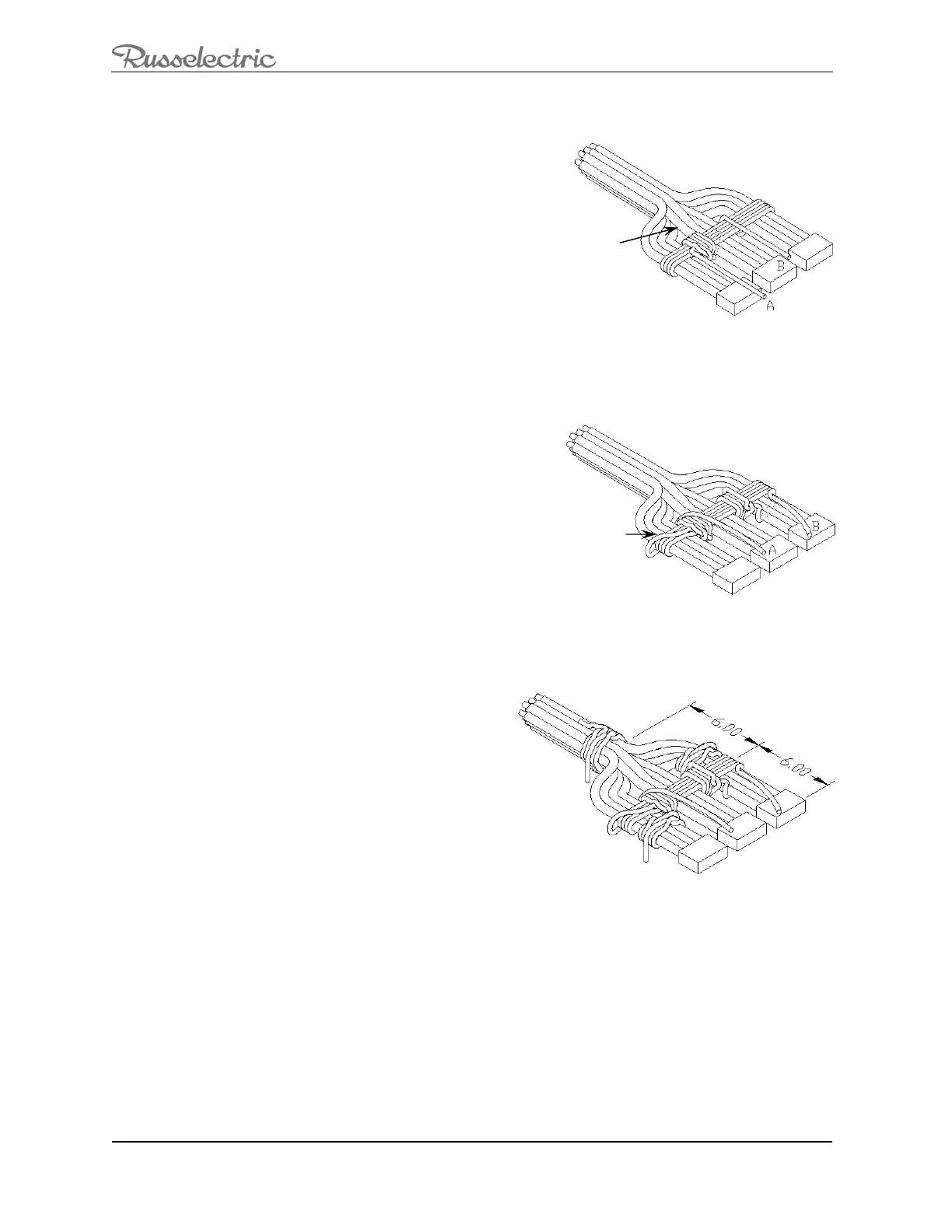

Figure 8: Wrapping the Space between Cables
4. Continue wrapping the cables every 6
inches until the cables exit the switch
(Figure 10).
5. If cable supports are provided (optional)
wrap cable supports (Figure 11)
6. Tie the rope ends together (Figure12)
until they are taut. Cut off excess rope,
and tape ends to prevent fraying.
7. Recheck torques of wire binding screws
after securing the conductors.
Figure 9: Finish Wrapping the Space between Cables
Figure 10: Continue Wrapping the Cables
Starting from
inside, wrap
cable outwards
Loop end (A)
under cables
To Next Page
