O&M Manual –90E1720004
Section 8 Operation Page 31 of 52
Withdrawing the Transfer Switch 100-800A
Once the transfer switch is isolated it can then be withdrawn from the enclosure.
1. Grasp the rails on either side of the cradle near the bottom and slide them out see
figure 19.

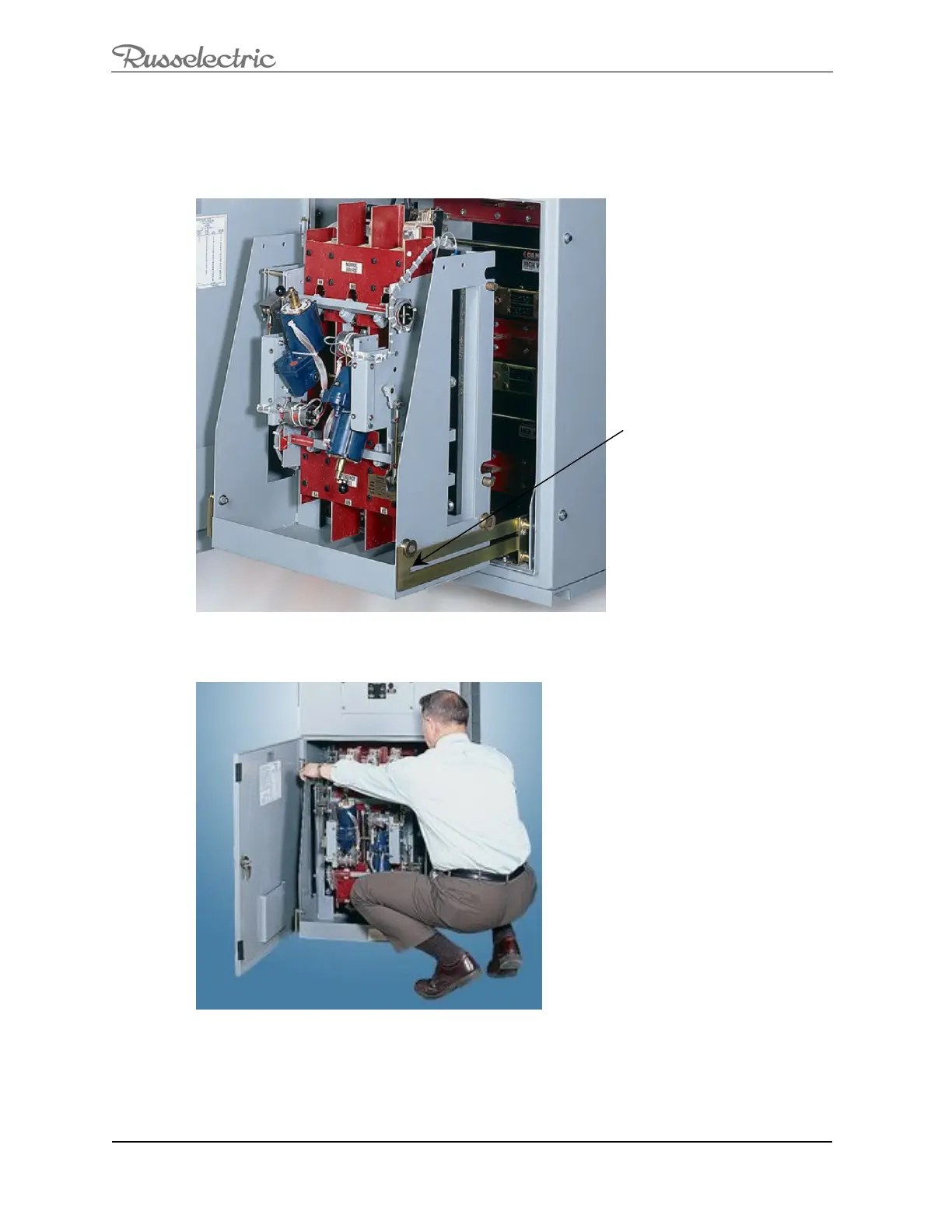

Figure 19: Sliding out the cradle rails.
2. Pull the transfer switch out onto the rails see figure 20.
Figure 20: Withdrawing the Transfer Switch 100-800A
Withdrawing the Transfer Switch 1000-4000A
The transfer switch cradle/carriage roll-out stops are supplied in front of the guide track at the
bottom of the enclosure. The rollout stop allows the transfer switch to move forward enough to
Slide rails are located on
the lower left and right of
the cradle
