RYCO RY20C - GENERAL; Machine Transporting and Base Mounting

9MOBILE AND WORKSHOP SERIES OPERATION MANUALOctober 2018 | Version: v1-0
SAFETY
Transporting
1. Before installation, ensure the area has sufcient space.
2. The ares selected for the machines installation should be at and rigid.
3. After the machine is position. Level by using a horizontal level and
adjustable absorbing base.
4. The anchorage and leveling work should be carried out by qualied
personnel.
5. It is recommended to screw the machine to the oor using four M12
expanding anchors (A) shown in Figure.3 and bore holes in the oor
Ø12 mm x depth 55 mm.
Base Mounting
GENERAL
1. Please refer to instruction manual in specications and machine weight
to arrange handling equipment.
2. Be sure to use a competent, licensed operator to lift the machine.
3. Forklift should only be operated by qualied personnel.
4. Before handling, ensure all movable parts are secured in their positions
and all movable accessories are removed from machine.
5. Make sure that the lifting capability of the forklift is sufcient to handle
the weight of the machine.
6. During handling, ensure people are excluded from the path of
machine movement.
7. The equipment is top heavy, pay attention to the balance of
the machine.
8. Only use marked forklift position to transport machine, please refer to
Figure. 1
9. The machine can be lifted from the four lifting eyes after it has been
unpacked, refer to Figure. 2
10. To avoid damage to the machine do not lift from the oil tank or the
crimper head.
The machine should only be moved by qualified personnel.

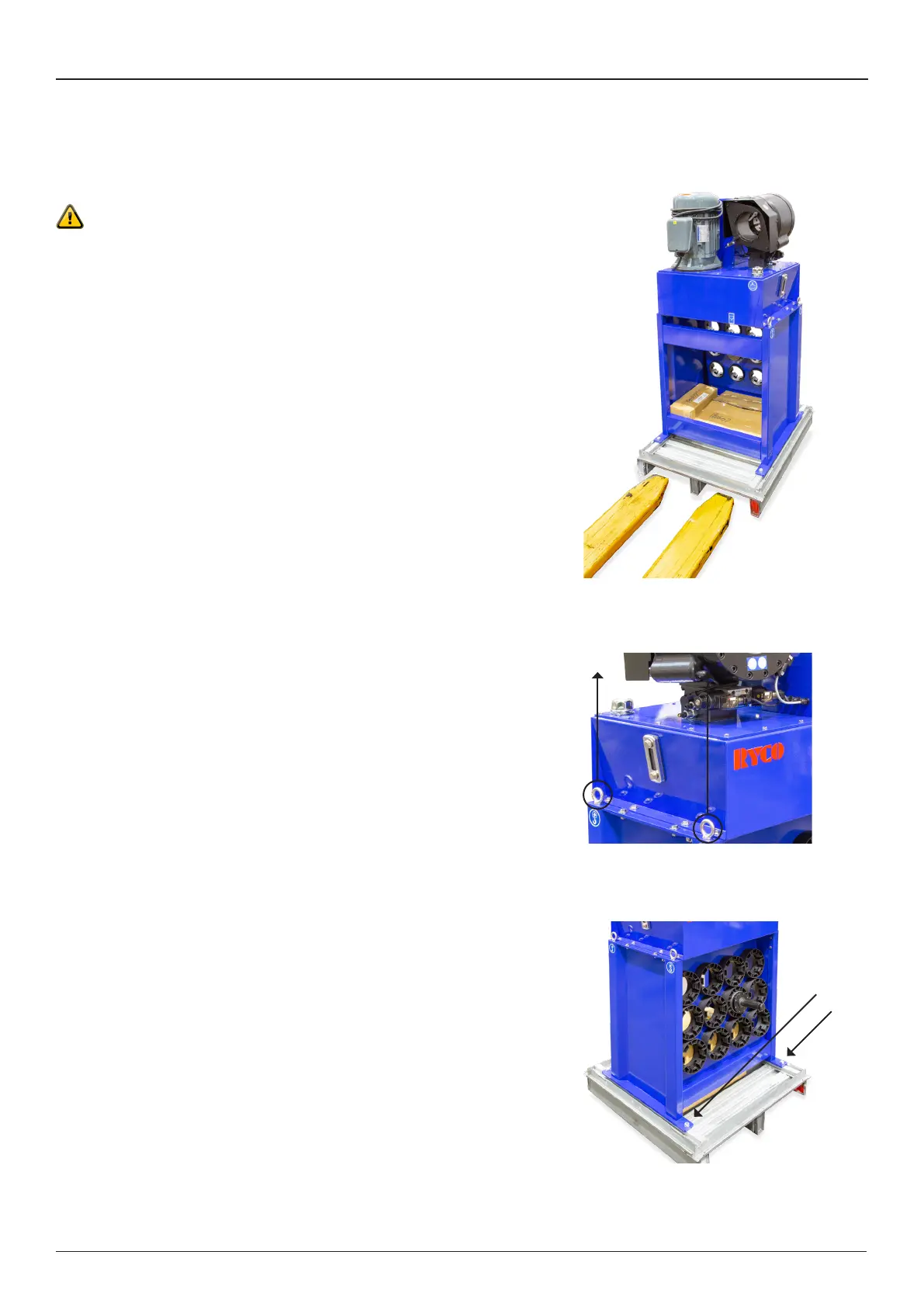

Figure. 1 - Transport via Forklift
Figure. 2 - Lifting Eyes
Figure. 3 - Anchorage
(A)
