30 MOBILE AND WORKSHOP SERIES OPERATION MANUAL
October 2018 | Version: v1-0
TECHNICAL
ASSEMBLY
Item Qty Description Specification
1 1 Motor/Pump/Tank
RY20 1600W/1.5CC/REV /5L
RY32 2200W/ 3CC/REV /5L
2 1 Control Panel
3 1 Hydraulic Pipe
4 1 Return Pipe
5 1 Breather Filters 2GG1P07R
6 1 3/4 Solenoid Operated Valve (1/4”)
RY20 WE-3C6-02G-D1-30T(DC12V)
RY32 WE-3C6-02G-D2-30T(DC24V)
7 1 Oil Passage Board
8 1 Insertreducing Valves 9CT6 CMR-09230
9 1 Insertreducing Valves 9CT6 CMR-09230
10 1 Insert Type Pilot Operated Check Valves X833033

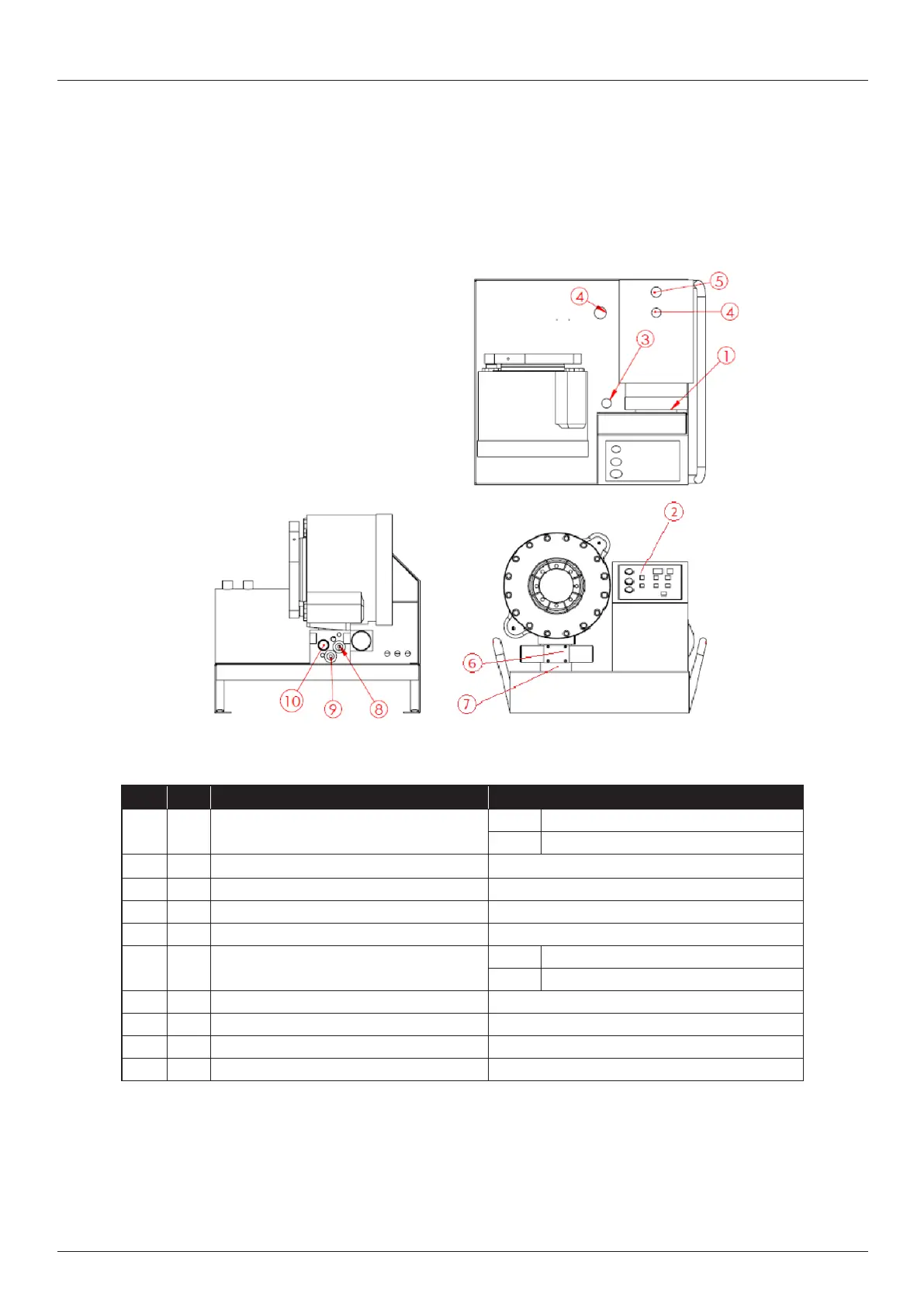

Assembly of RY20C/32C
