STEERING REPAIR
7 - 6 2/12/97
4. Align marks on sector gear and pinion gear as
steering pinion shaft (D) is installed from the
bottom of the tractor.
5. Install washers (E) and cotter pin (C).
6. Install and fasten tie rods (Long leg of tie rod is
installed in axle spindle).
7. Install steering wheel on top of steering shaft (D)
and fasten with mounting hardware.
8. Turn steering left-to-right several times to test
steering response and feel.
9. Repeat adjustment procedure until minimum
backlash without binding is achieved.

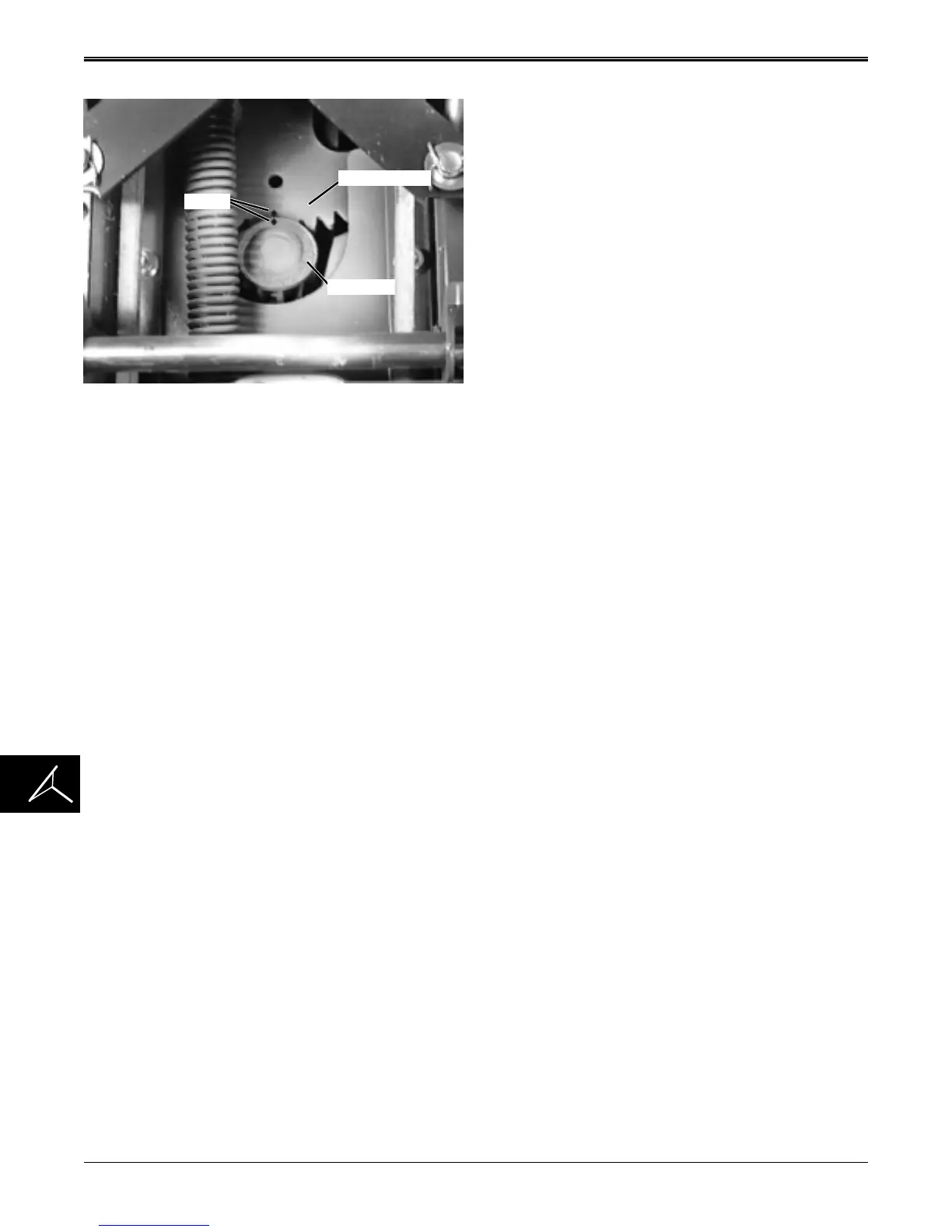

Sector Gear
Marks
Pinion Gear
