REPAIR ELECTRICAL
3/5/97 4 - 27
REPAIR

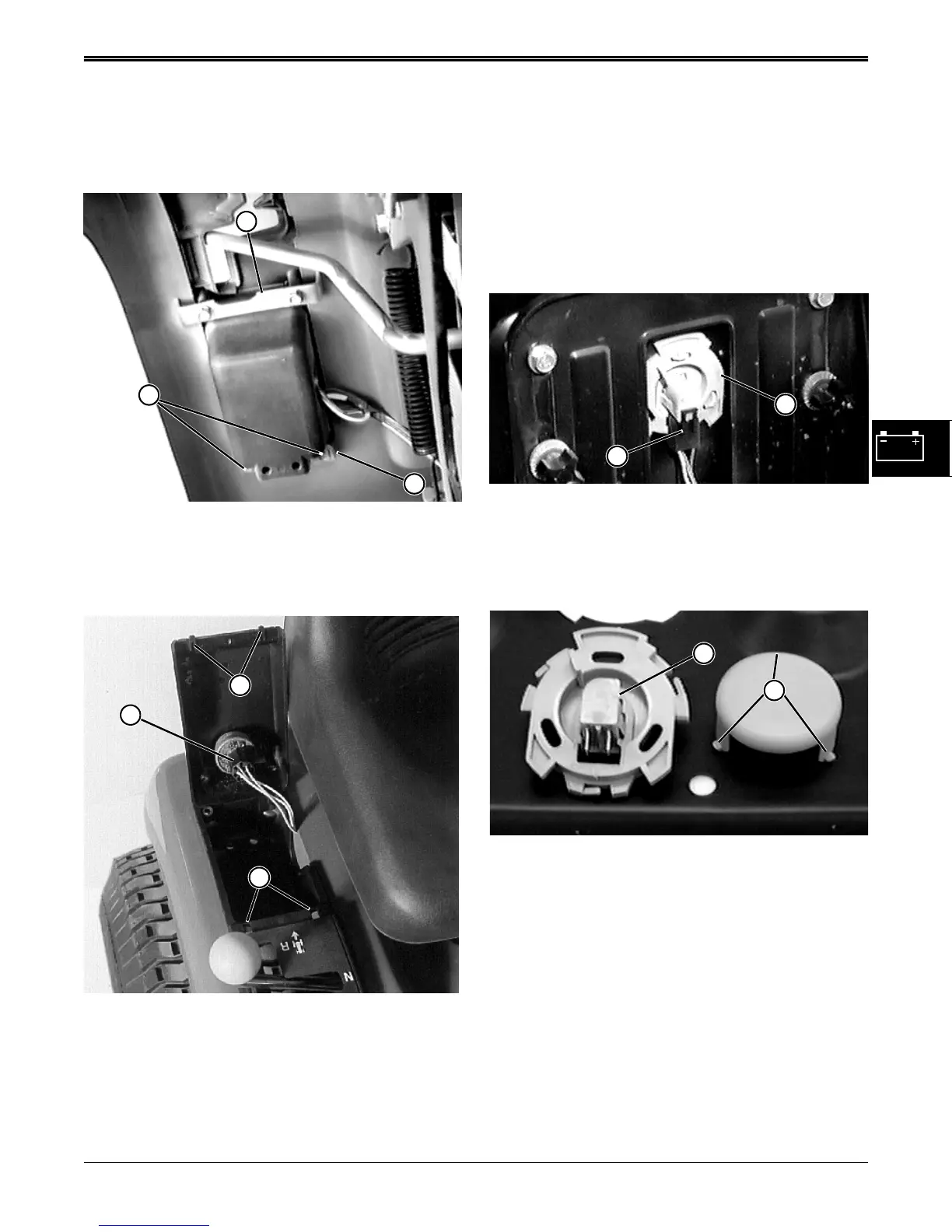

IGNITION SWITCH REMOVAL &
INSTALLATION
1. Remove rear retaining screws (A) and Bracket (B).
NOTE: Front bracket (F) does not have to be removed.
2. Remove ignition switch connector (C).
3. Check and/or replace ignition switch as required.
4. Install new switch and replace cover by inserting
lugs (D) into slots (E). Secure from underside of
tractor fender with two screws (A) and bracket (B).
DO NOT overtighten screws, they are threaded
into plastic.
B
A
F
C
D
E
SEAT SWITCH REMOVAL &
INSTALLATION
NOTE: Seat switch connector has an internal spring
which will short cavities of connector together
when it is disconnected from seat switch. This
prevents operator from defeating seat switch
by leaving connector disconnected.
1. Tilt seat forward.
2. Disconnect connector (A).
3. Rotate switch assembly (B) counterclockwise to
remove switch from seat pan.
4. Depress tabs (D) of cover and remove.
5. Unsnap switch (C) from housing.
6. Assemble in reverse order of disassembly.
A
B
C
D
