COMPONENT LOCATION HYDROSTATIC POWER TRAIN
2/12/97 6 - 11

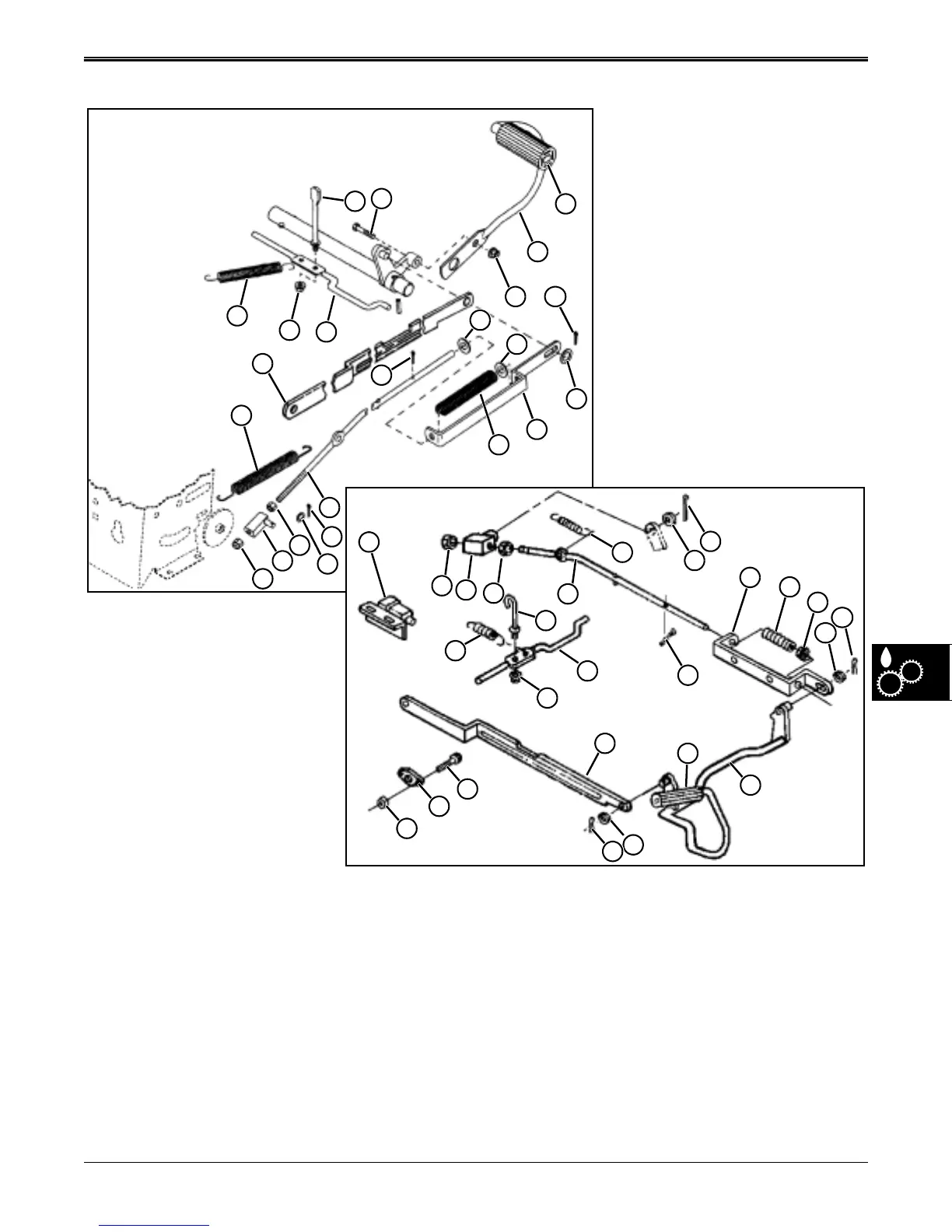

PEDAL LINKAGE ASSEMBLY COMPONENT LOCATION
1. Neutral Switch
2. Lock Nut, 9.525mm
3. Pivot
4. Nut, 3/8 in.
5. Rod
6. Washer
7. Cotter Pin
8. Brake Rod Return Spring
9. Brake Spring Strap
10. Brake Compression Spring
11. Washer
12. Park Brake Lever
13. Extension Spring
14. Flange Nut
15. Rod, Parking Brake
16. Cap Screw, M8x35 (K55)
17. Lock Nut M8 (K55)
18. Brake Pedal (K55)
19. Pad
20. Shaft, Brake (K51)
21. Strap, Return to Neutral
22. Screw, M8x20 (K51)
23. Bracket (K51)
24. Lock Nut, M8 (K51)
K–55 TRANSAXLE
K–51 TRANSAXLE
1
2
2
3
4
3
4
5
5
6
7
6
7
7
7
7
7
6
6
7
6
8
8
9
9
10
10
11
11
11
12
12
13
14
15
13
15
14
16
17
18
19
19
20
21
21
22
23
24
