Sabre 1638 Hydro - Shift Linkage Component Location-K-51 Transaxle

COMPONENT LOCATION HYDROSTATIC POWER TRAIN
2/12/97 6 - 13

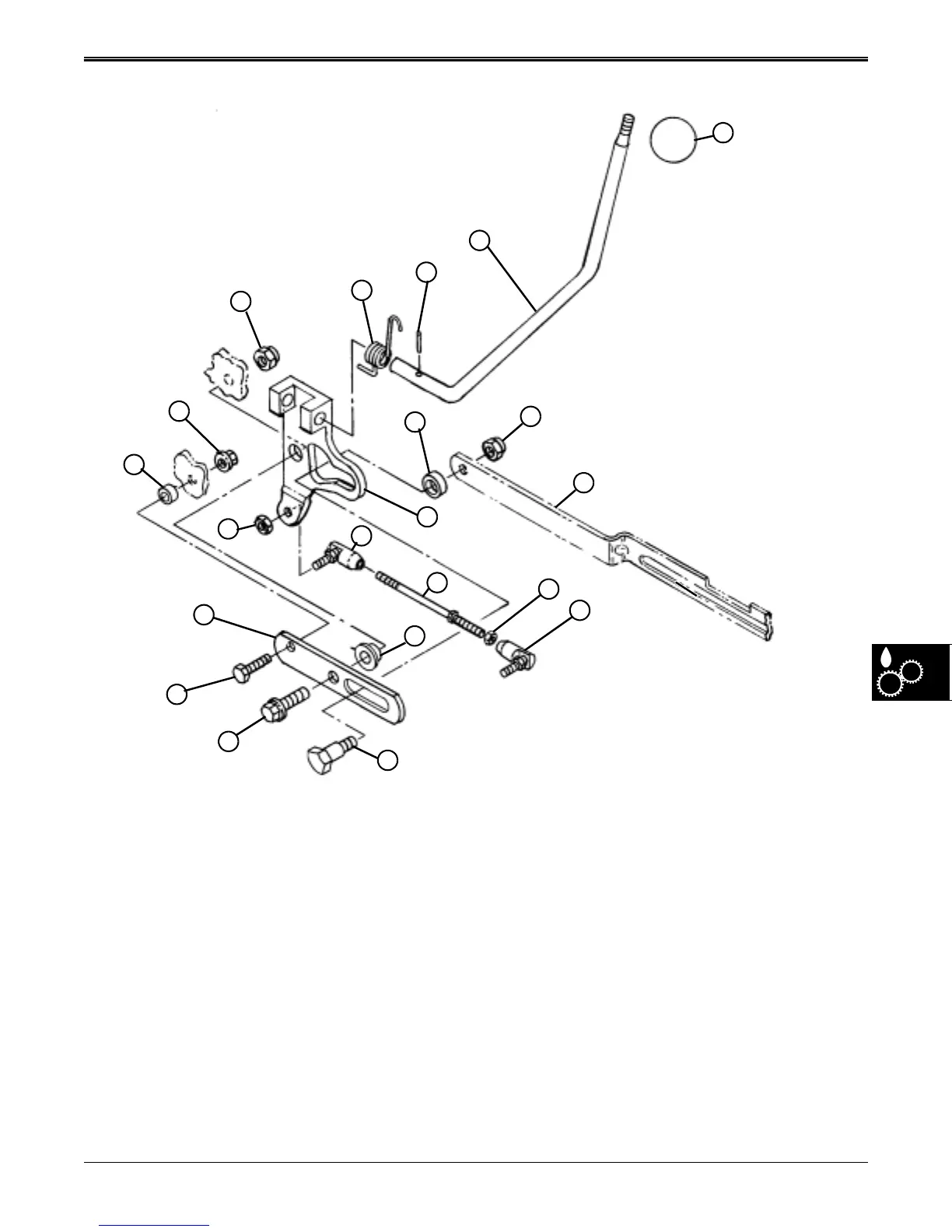

SHIFT LINKAGE COMPONENT LOCATION—K–51 TRANSAXLE
1. Torsion Spring
2. Spring Pin (4 x 20 mm)
3. Gearshift Lever
4. Knob
5. Lock Nut
6. Strap
7. Roller
8. Bracket
9. Ball Joint
10. Stud, Adjusting
11. Nut, (5/16”)
12. Ball Joint
13. Bushing
14. Shoulder Bolt
15. Screw M10 x x25
16. Screw M8 x 25
17. Support
18. Lock Nut (5/16-24 UNF 3B)
19. Spacer
20. Flange Nut, M8
21. Flange Nut, M10
8
12
10
9
7
5
13
14
15
16
17
18
19
20
1
4
2
3
11
21
6
