TESTS AND ADJUSTMENTS ELECTRICAL
3/5/97 4 - 25
IGNITION SWITCH TEST
Reason:
To verify ignition switch functions are operating
properly.
Equipment:
• Ohmmeter or Continuity Tester
Procedure:
1. Park machine on level surface and turn ignition
switch OFF.
2. Shift lever in NEUTRAL and park brake LOCKED.
3. Remove ignition switch cover (see Repair Section
page 27 for Ignition Switch Removal & Installation)
4. Disconnect ignition switch connector.

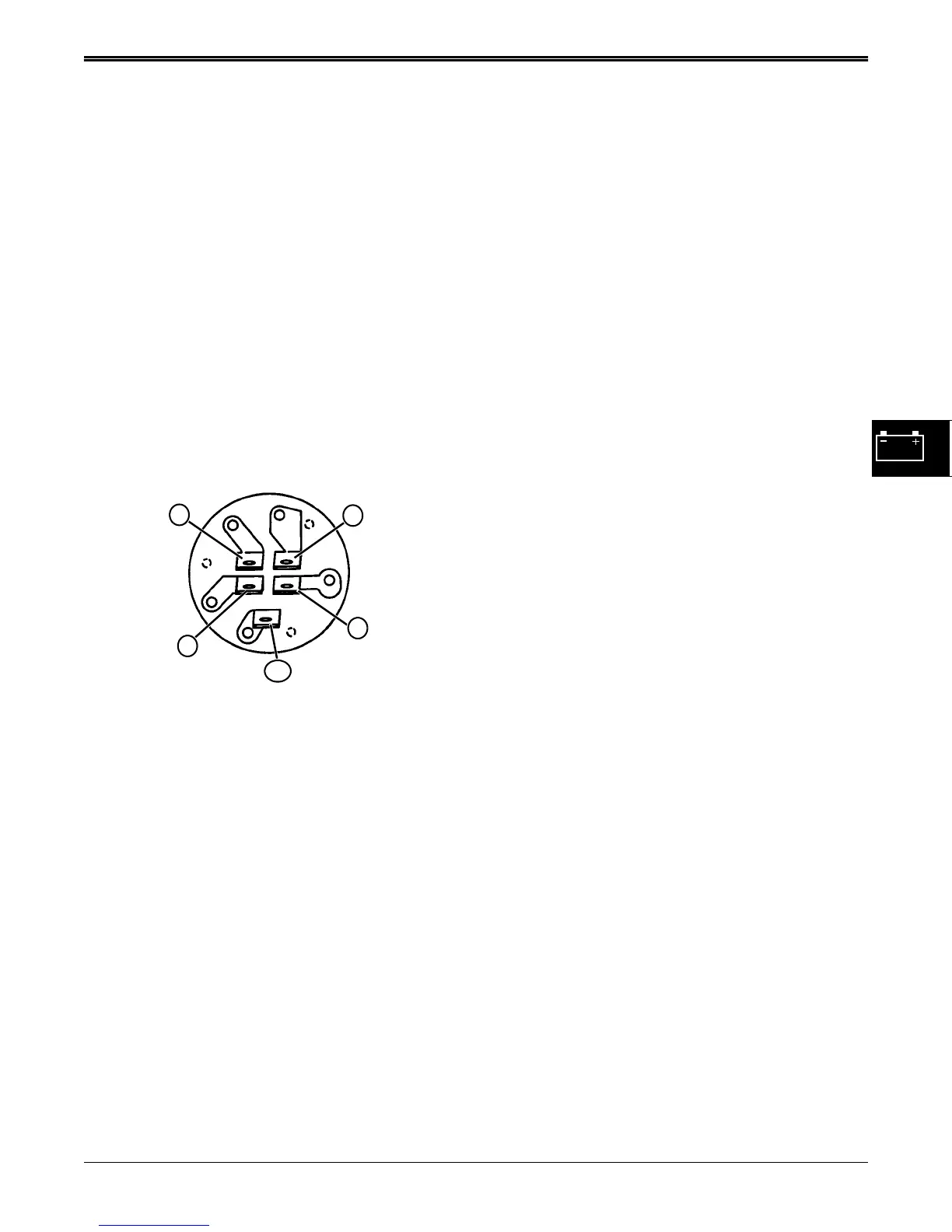

NOTE: Ignition switch terminals are identified to
coincide with electrical schematic
designations.
5. Use an ohmmeter to test ignition switch continuity in
OFF, RUN, and START positions.
Ignition Switch Continuity
Switch Position Terminal Continuity
OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (G and M)
RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (A and B)
START . . . . . . . . . . . . . . . . . . . . . . . (A and B and ST)
Results:
• If any continuity is NOT correct, replace ignition
switch.
G
A
B
M
ST
