REPAIR ENGINE
2/12/97 3 - 5
12. Remove four cap screws. Remove engine.

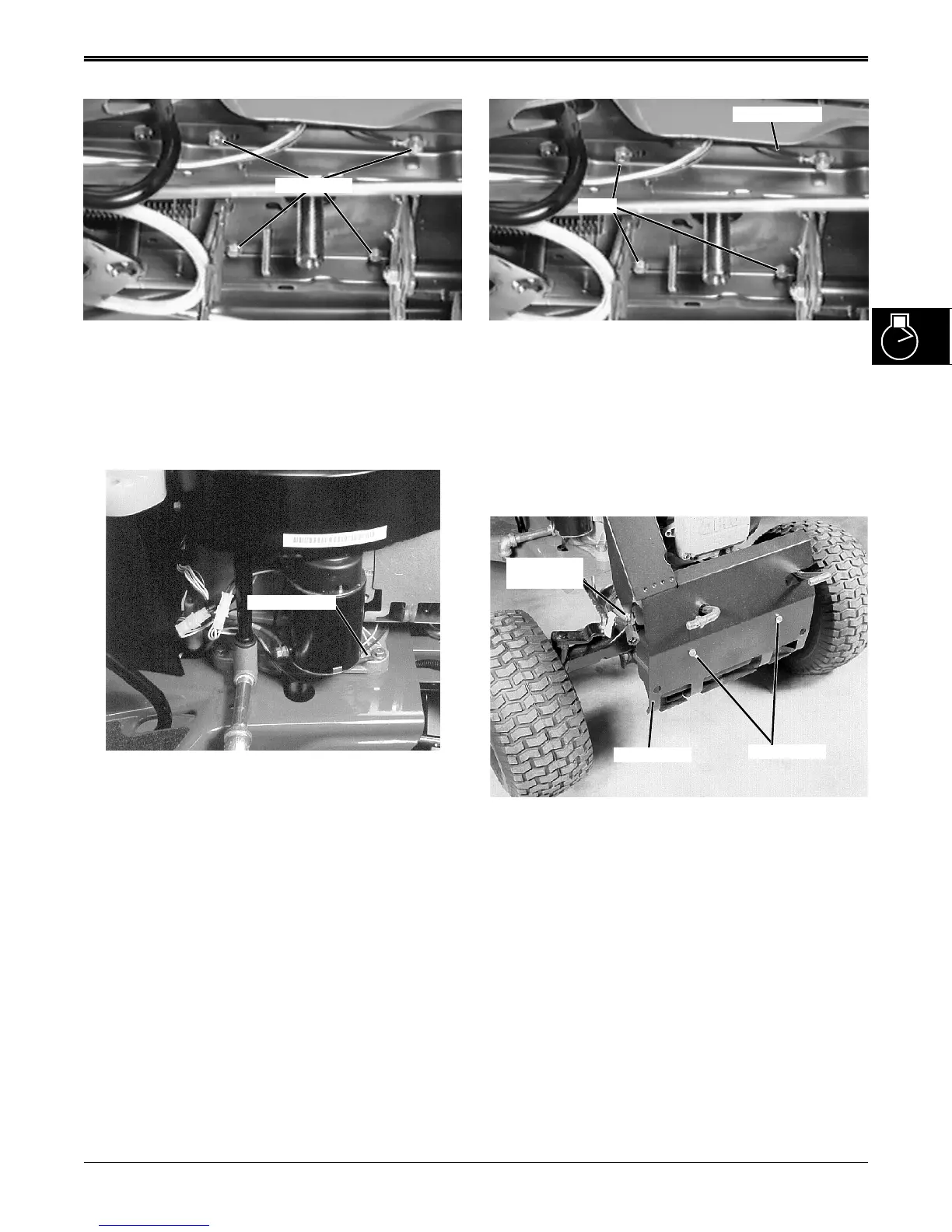

ENGINE INSTALLATION
1. Install engine in mower frame.
2. Put ground lead connector on top of front right hand
engine mounting flange, and insert capscrew
through connector, engine, and frame.
Capscrews
Ground Wire
3. Install lower engine ground connector on capscrew
installed in step 2, and secure with washer and
nut.
4. Install other three capscrews, washers, and nuts.
Torque to 32 N•m (24 lb-ft).
5. If muffler was removed inspect muffler flange for
flatness. Install muffler with new gasket. Torque
mounting bolts to 24•m (18 lb-ft).
6. Install heat shield. Secure with two capscrews to
front frame mounting brackets. Install capscrew
and nut on side of heat shield.
Nuts
Ground Wire
Capscrews
Heat Shield
Capscrews
And Nut
