ENGINE REPAIR
3 - 6 2/12/97

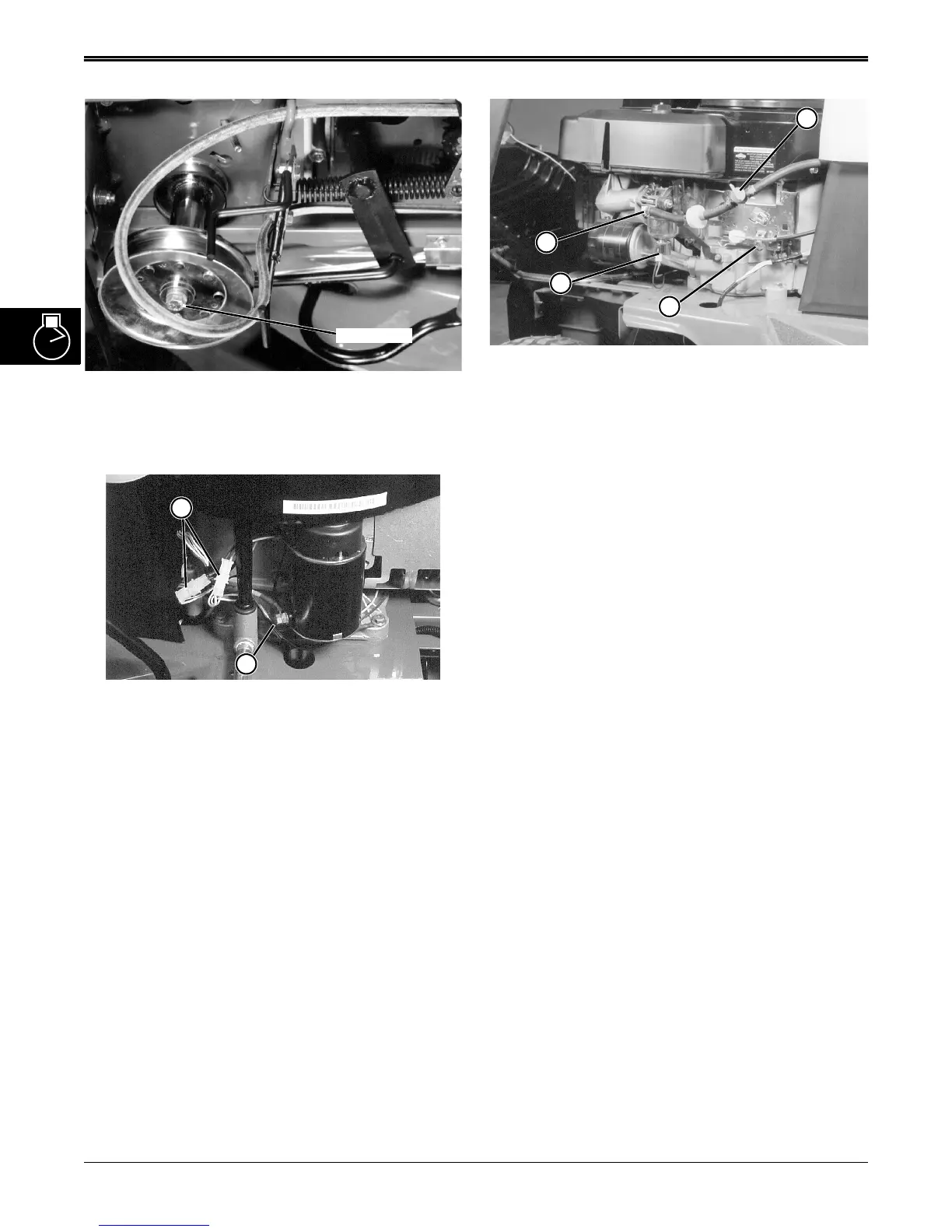

7. Install engine output shaft key and pulley assembly.
Secure with washer, lock washer and capscrew.
Torque to 75 N•m (55 lb-ft).
8. Connect wires to starter terminal (F).
9. Connect two (2) harness connectors (H).
Capscrew
F
H
10. Connect and adjust throttle cable (C) to obtain full
throttle and choke when lever is full forward, and
idle when lever is rearward.
11. Connect fuel solenoid wire (N) (16 horsepower
only), and fuel line and clamp (E).
12. Open fuel shutoff valve (B) (early models only), or
remove clamp from fuel line.
B
C
E
N
