REPAIR GEAR POWER TRAIN
2/12/97 5 - 21

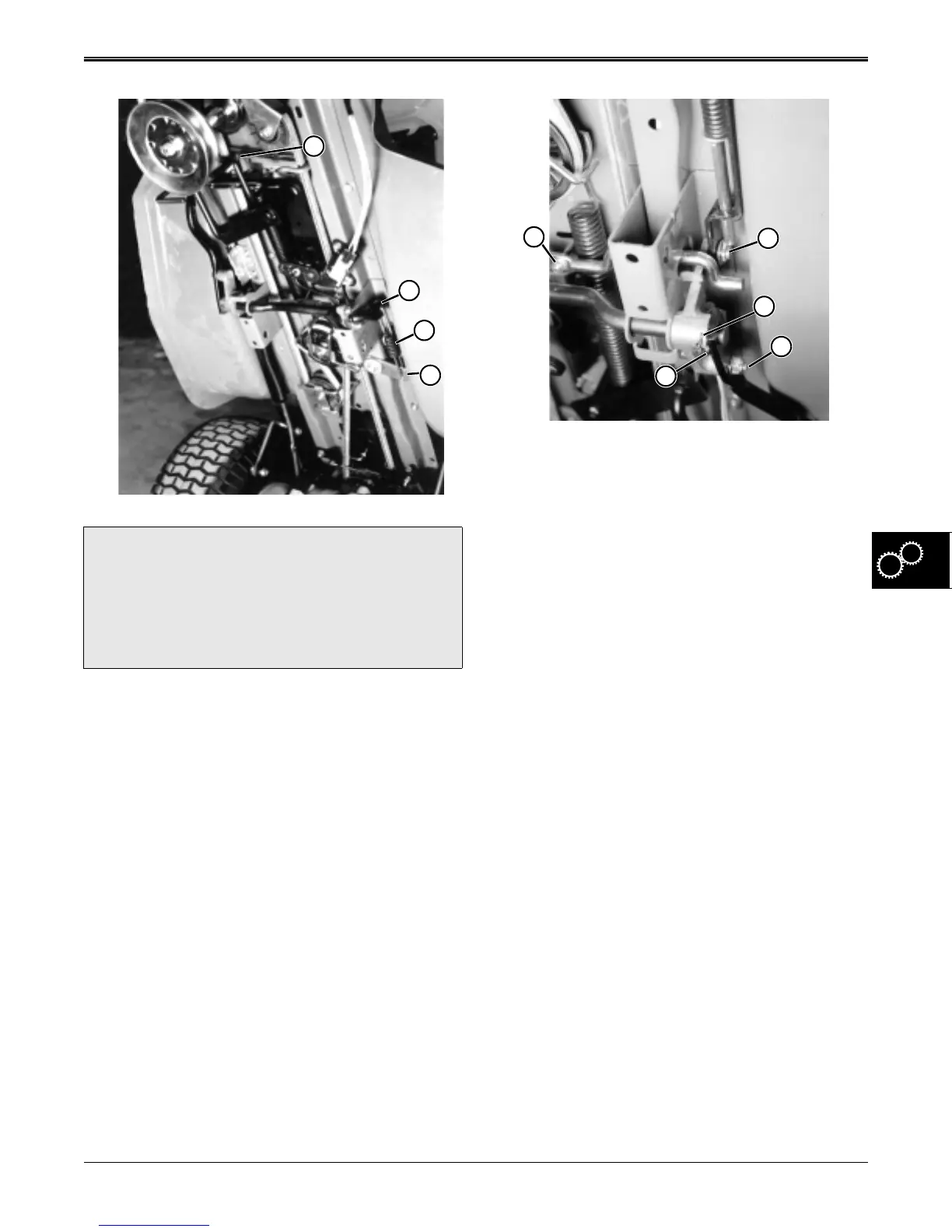

6. Thread one end of a three foot long piece of starter
rope under the front hook of clutch tension spring
(C). Pull rope half way through spring until ends
meet, and wrap ends around a bar several times to
make a temporary handle. Pull handle until spring
hook is free from frame, and release tension from
spring. Tension is now off traction drive system and
it may be worked on safely.
7. Remove clutch actuating spring (D) from clutch
bellcrank (E) and cross shaft (F).
?
CAUTION
Clutch tension spring is capable of causing
extreme injury if allowed to be released quickly
from mower frame. Protect your face, eyes and
hands before releasing spring.
C
D
F
E
8. Remove clutch/brake pedal by removing mounting
nut (G) and pulling pedal through frame.
9. Remove brake bracket from bellcrank by removing
cotter key and washer (H).
10. Remove bellcrank from clutch shaft by removing
safety wire (I) securing roll pin, then driving out roll
pin (J) and removing bellcrank.
11. Remove two bolts and nuts through retainer plate
holding left end of clutch shaft, and remove shaft
from frame.
12. Remove nut (K) holding parking brake lock lever to
parking brake locking rod.
13. Remove spring from frame to parking brake locking
rod and slide rod out of frame.
14. Bellcrank assembly is held to frame with one bolt
and bushing.
G
H
K
I
J
