SAGEMCOM FAX 4575 - OVERVIEW; DEVICE OVERVIEW; CONNECTIONS ON THE REAR SIDE

Overview · Device Overview 7
EN
2 OVERVIEW

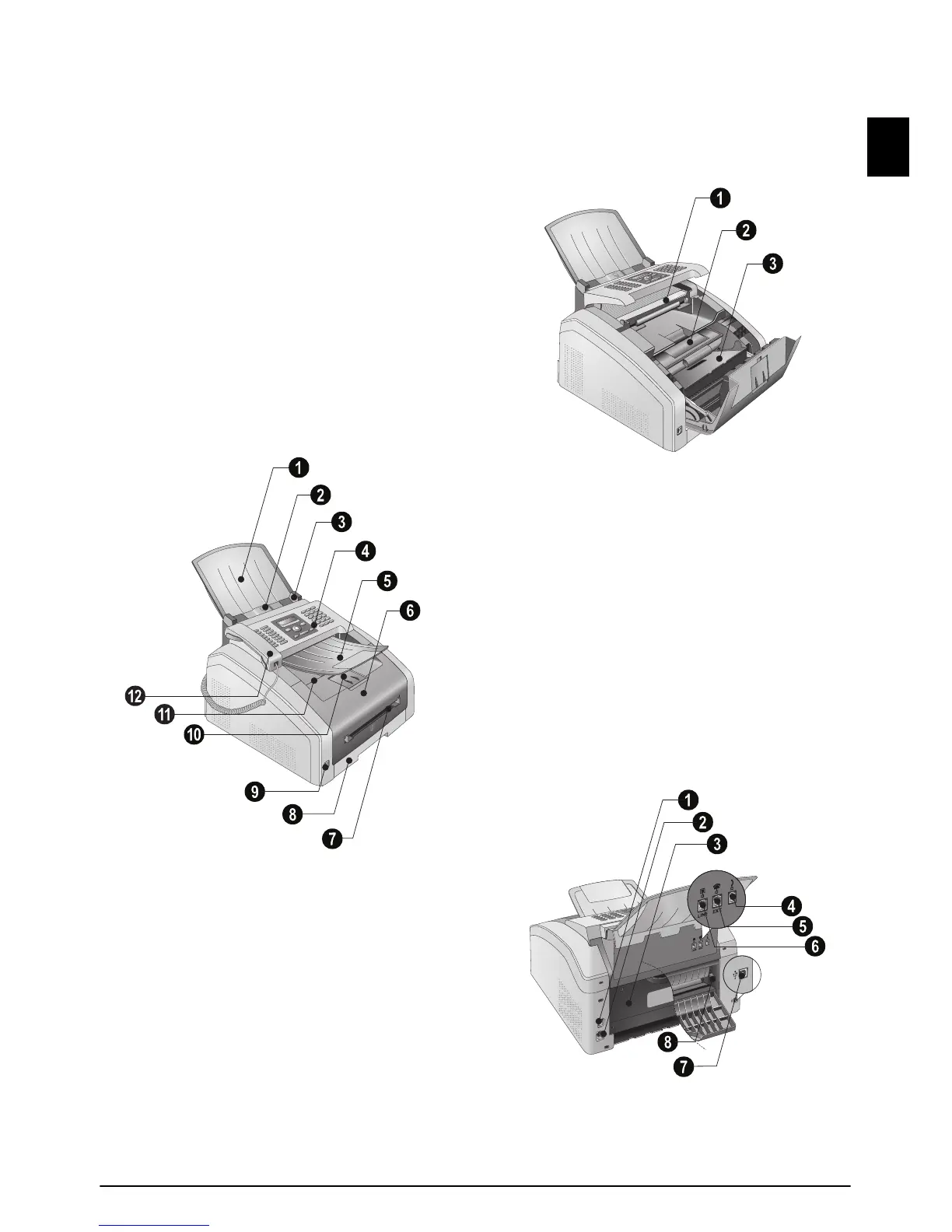

DEVICE OVERVIEW
Document Support
‚ Document support
Document Feed Slot
ƒ Document feed slot
Document Guide
„ Document guide
Panel with Display
… Panel with display
Document Outlet Tray
† Document outlet tray
Device Cover
‡ Device cover
Manual Paper Feed
ˆ Manual paper feed
Paper Tray
‰ Paper tray
USB Host Connection
Š ý- Socket—USB Host connection for storage
medium
Printer Output Tray
‹ Printer output tray
Print Output
ΠPrint output
Telephone Handset with Spiral Cable (Type 3)
÷ Telephone handset with spiral cable (FAX¦4565,
FAX¦4575)
Vorderansicht nummeriert
Spaltenumbruch
Scanner glass
‚ Scanner glass
Toner Cartridge
ƒ Toner cartridge
Paper Jam Door (Print Unit)
„ Paper jam door (print unit)
Gerät offen nummeriert
CONNECTIONS ON THE REAR
SIDE
On/Off Switch
‚ On/Off switch
Mains Cable Socket
ƒ Mains cable socket
Paper Jam Door (Fuser Unit)
„ Paper jam door (fuser unit)
Telephone Handset Socket (Type 3)
… Ð socket—Connection socket for the telephone
(FAX¦4565, FAX¦4575)
EXT Socket
† Ï/EXT. socket—Connection socket for addi-
tional devices
LINE Socket
‡ Î/LINE socket—Connection socket for telephone
cable
USB Connection for the Computer
ˆ ý socket—USB connection for the computer
Tension lever of the fixer unit
‰ Tension lever of the fixer unit (Two levers!)
Rückseite nummeriert
