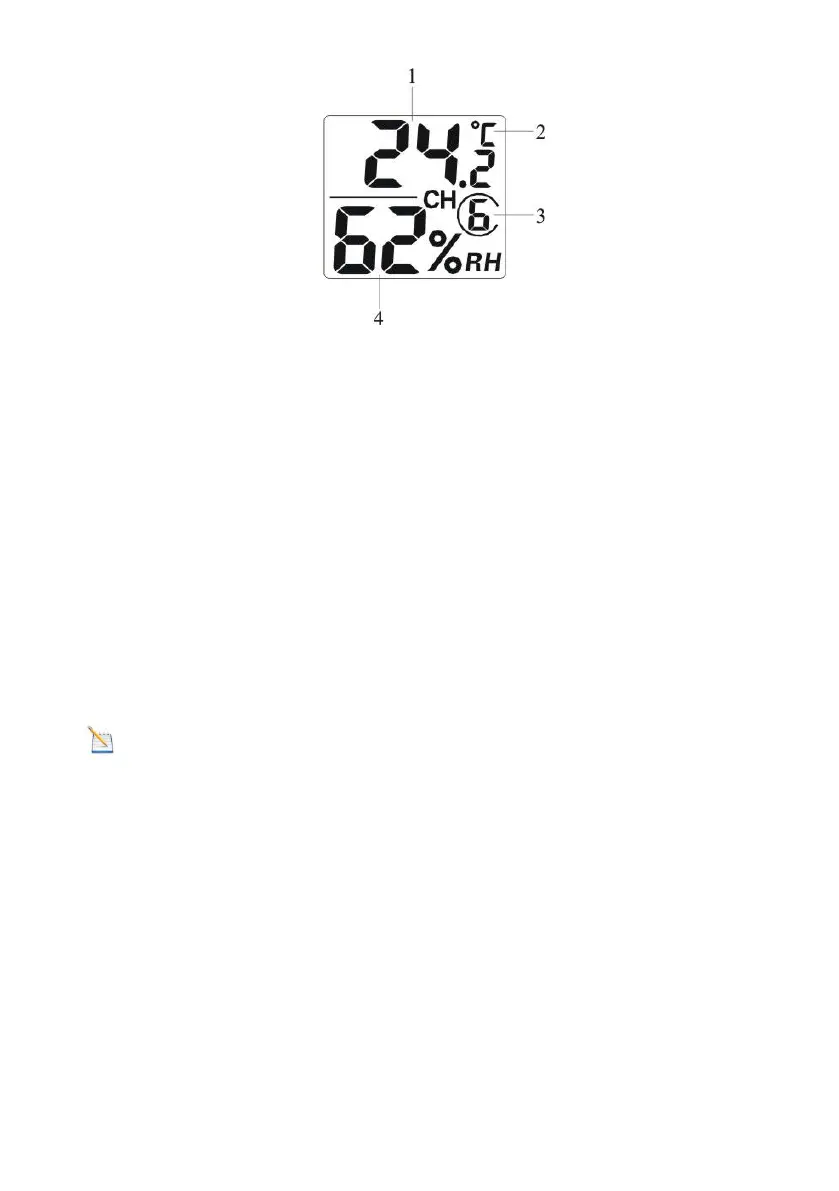

Figure 9
(1) temperature
(2) temperature units (°F vs. °C)
(3) channel number
(4) relative humidity
7. Close the battery cover. Make sure the gasket (around the
battery compartment) is properly seated in place prior to closing
the door. Tighten the set screw.
3.4 Display Console
3.4.1 Display Console Layout
The display console layout is shown in Figure 10
Note: The following illustration shows the full segment LCD display
for description purposes only and will not appear like this during normal
operation.
