Southern Hemispheres

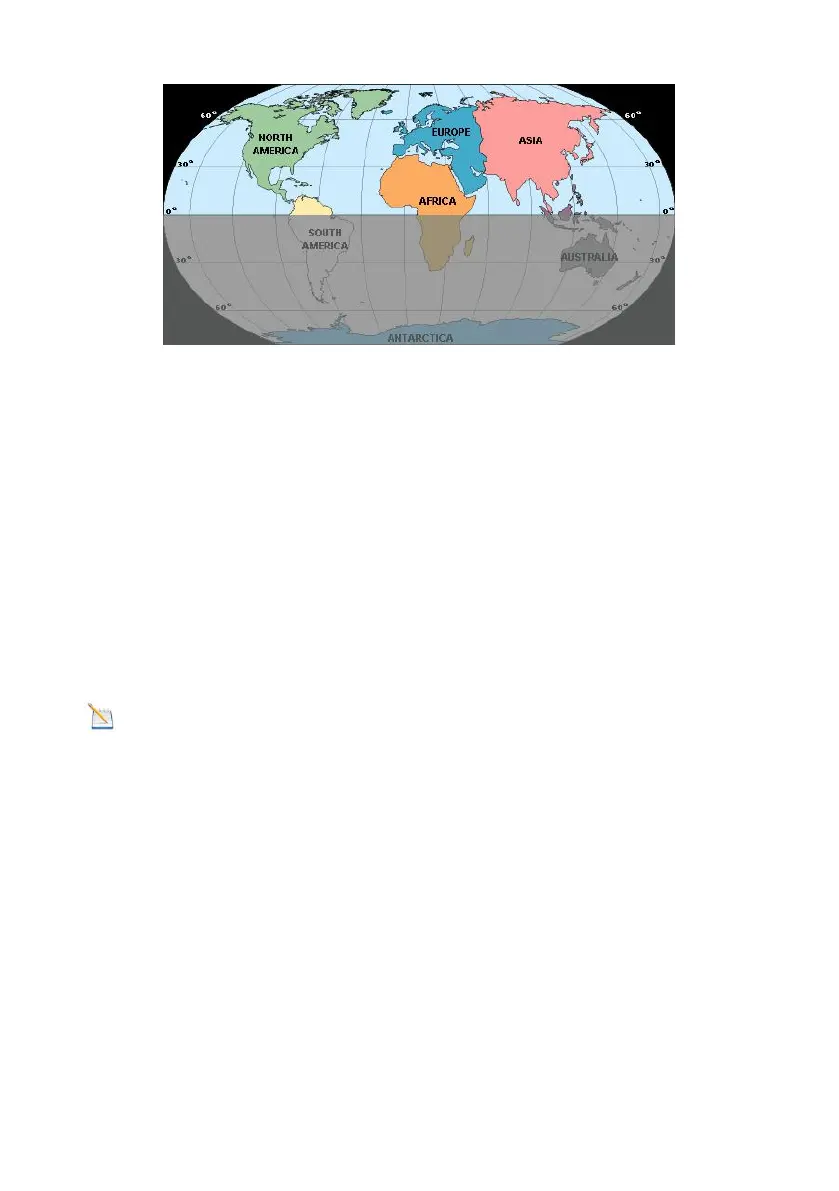

Figure 14
5.2. Southern Hemispheres (SOU).
For Southern Hemisphere installations, ignore these(N, S, E, W) and
face the solar panel to the North (and in a sunny position) when
installing the Integrated outdoor transmitter.
Step 1: Install the Integrated outdoor transmitter and face the solar
panel North.
Step 2: Console operation is set to Southern Hemispheres ( SOU in the
time area) in Location division.
Note: Console has to be location division setting so that the
directions on the sensor are matching with your real location.
Permanent wind direction error（read approximately 180º）will be
introduced when the wind direction sensor is not positioned correctly
during installation.
Fasten the integrated transmitter to mounting pole brackets with foot-
mounting, two ￠3 bolts and M3 nuts , as shown in Figure 15
