8000m Series
- 17 -
Chapter 2 Installation and Wiring
2.1 Installation
2.1.1 Installation Environment
◎The ambient temperature exerts great influences on the service life of the VFDs
and is not allowed to exceed the specified temperature range (-10℃ to 40℃ ).
◎A VFD is easy to generate large amount of heat during operation. Thus VFDs
should be mounted vertically with screws on the surface of incombustible objects,
with sufficient spaces nearby for heat sinking.
◎VFDs should be mounted in the place without vibration or with vibration of less
than 0.6G, especially away from those kinds or machine such as punch.
◎The inverter should be mounted in locations away from direct sunlight, high
humidity, condensate, corrosive gas, explosive gas, oil dirt, dust, and metal powder
etc.
2.1.2Installation Orientation & Clearance

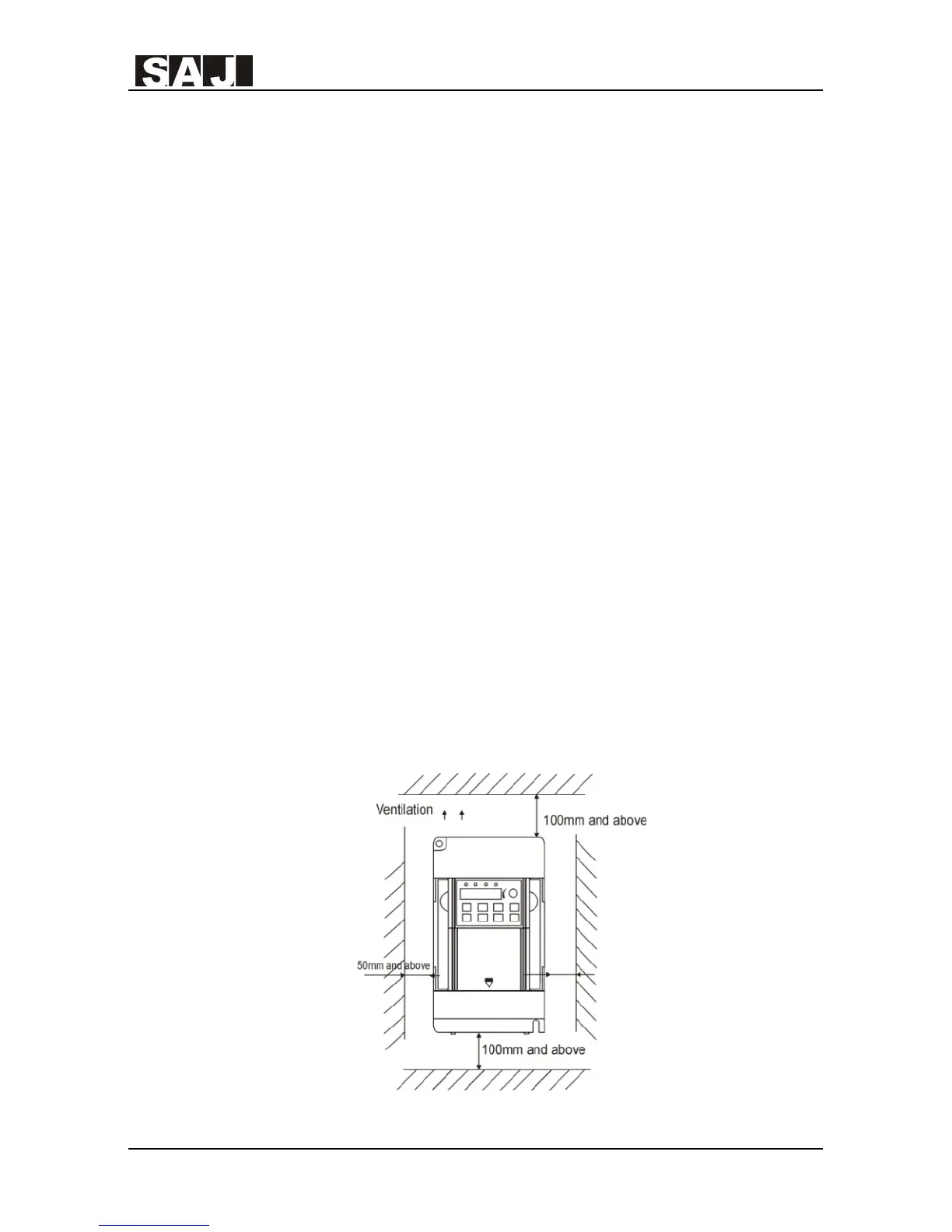

Single Drive & multi drives (Side by Side) Installation
