8000m Series
- 95 -
calculated as the upper or lower input limits reached.

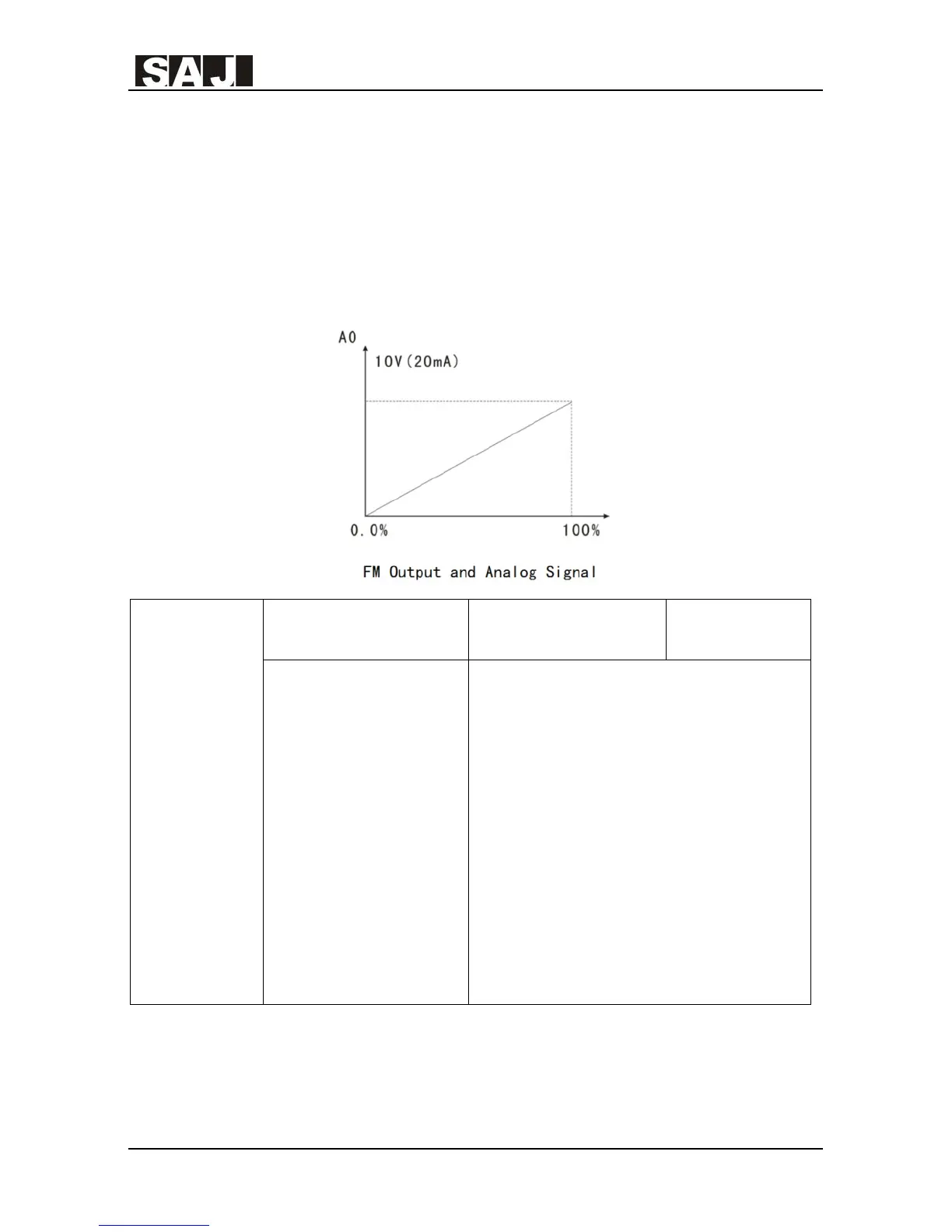

When the analog output is current output, 1mA current corresponds to 0.5V
voltage.
In different applications, 100% of analog output corresponds to different nominal
values. For details, refer to the description of different applications.
F6.14
User defined output
variability option (EX)
Factory Setting 0
Setting Options
0:Running frequency
1:Setting frequency
2:DC bus voltage
3:Output current
4:Output voltage
5:Sign of start and stop status
6:Sign of control status
7:Counter value
8:Counting meter value
9:Inverter module temperature
10:AVI input value
11:Reserved
This parameter is used as the selection of reference variable for the user defined
output. The selected EX is used as the comparison value.
