4.2 Installation Method and Position
4.2.1 Installation Position and Clearance
This device is cooled by natural convention and suggested an indoor installation or an installation under a
sheltered place to prevent the product from exposure to direct sunlight, rain and snow erosion.
Please reserve enough clearance around the product to ensure a good air circulation at the installation area.
Because poor air ventilation will affect the working performance of internal electronic components and shorten
the service life of the system.

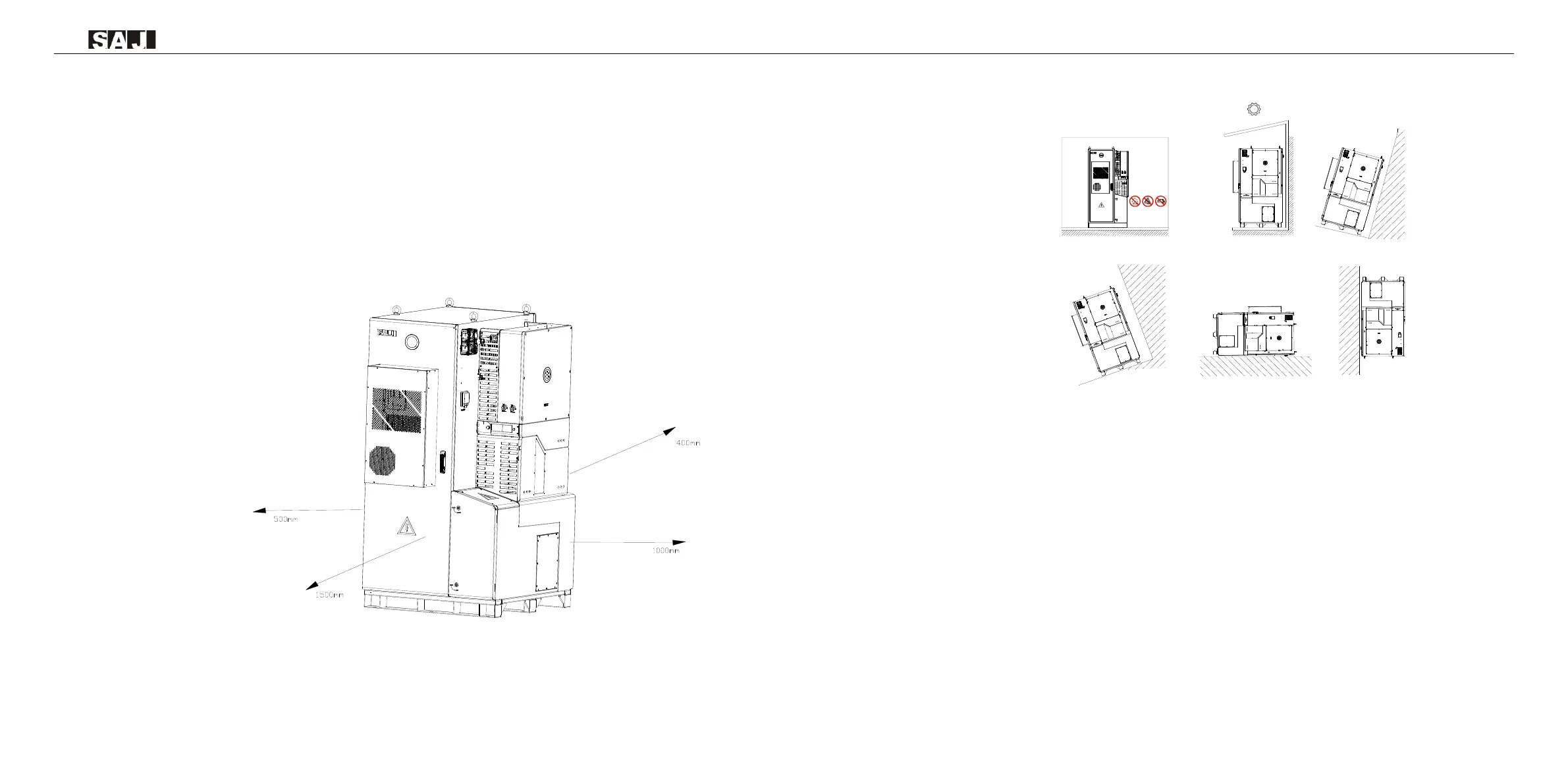

Figure 4.2
Installation clearance
4.2.2 Mounting Method
Figure 4.3
Mounting method
① The equipment employs natural convection cooling, and it can be installed indoor or outdoor.
② Mount vertically. Never install the device tilted forwards, sideways, horizontally or upside down.
③ The ground should be flat and no inclination. The load-bearing capacity of the ground should reach 1.5
tons.
Installation Environment Requirements
• The installation environment must be free of inflammable or explosive materials.
• Install the device away from heat source.
• Do not install the device at a place where the temperature changes extremely.
• Keep the device away from children.
• Do not install the device at daily working or living arears, including but not limited to the following areas:
