4.1 Unpacking and Inspection
4.1.1 Checking the Package
Although SAJ’s product have thoroughly tested and checked before delivery, it is uncertain that the product
may suffer damages during transportation. Please check the package for any obvious signs of damage, and if
such evidence is present, do not open the package and contact your dealer as soon as possible

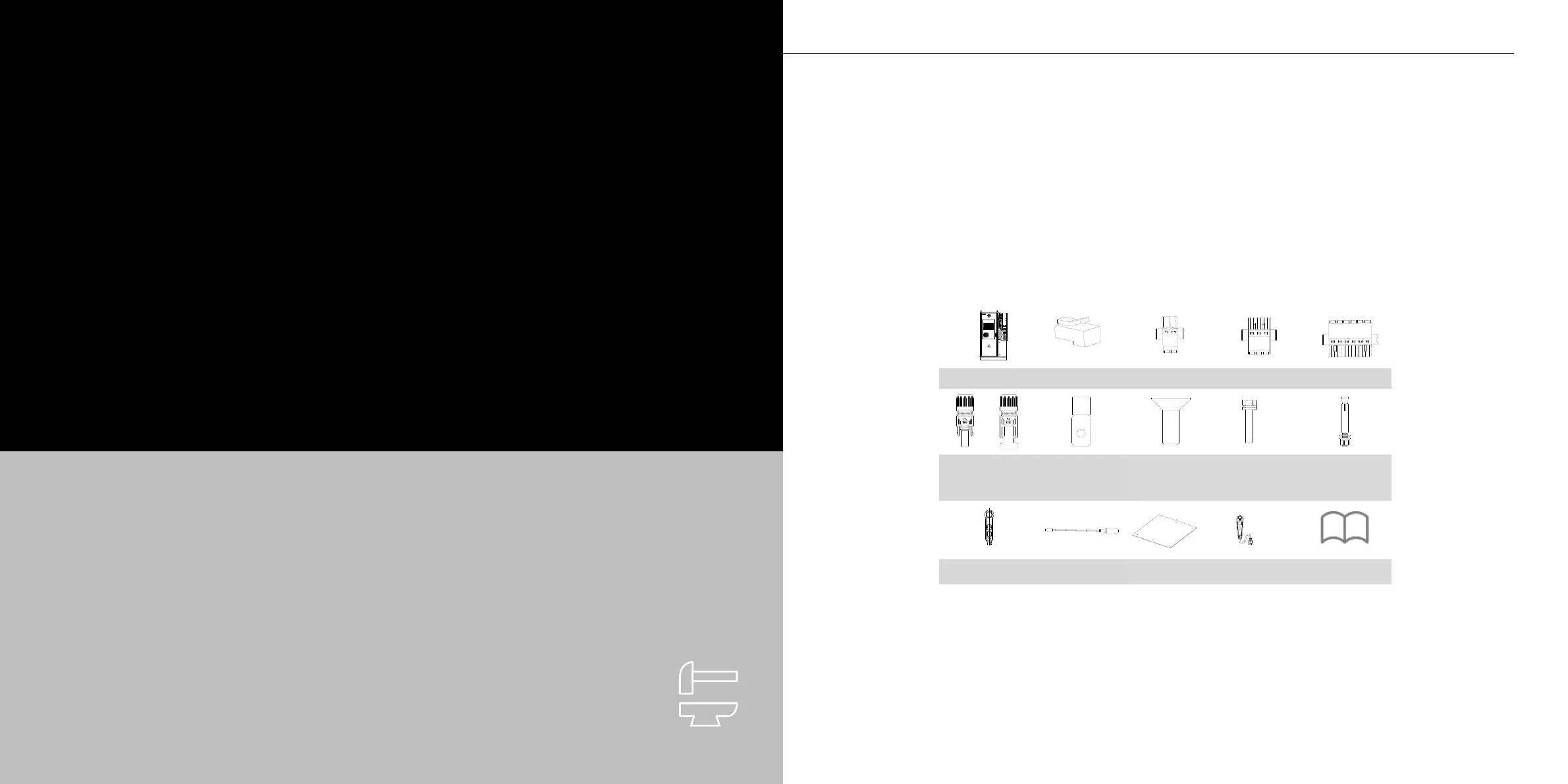

4.1.2 Scope of Delivery
Please contact after sales if there are missing or damaged components.
Inverter Package
CHS2 Inverter*1
RJ45 plug*10
Plug(2P)*4
Plug(3P)*2
Plug(6P)*4
PV terminal
T4*8*2
T5*10*2
T6*12*2
Terminals
(RNBS 38-8)*2
(M4*10) flat head
screw *4
(M8*16) screw*2
(M6*12) screw*1
expansion screw
(M12*80)*6
D4 Disassembly and
assembly tool*1
socket wrench *1
marking-
off template*1
Communication
module*1 (Optional)
Documents
The documents include the user manual, quick installation guide and packaging list.
