CHS2 Series

5.7 Install Decorative Panels

Reinstall the removed decorative panel onto the machine.

Install the metal plate above the outlet hole back.

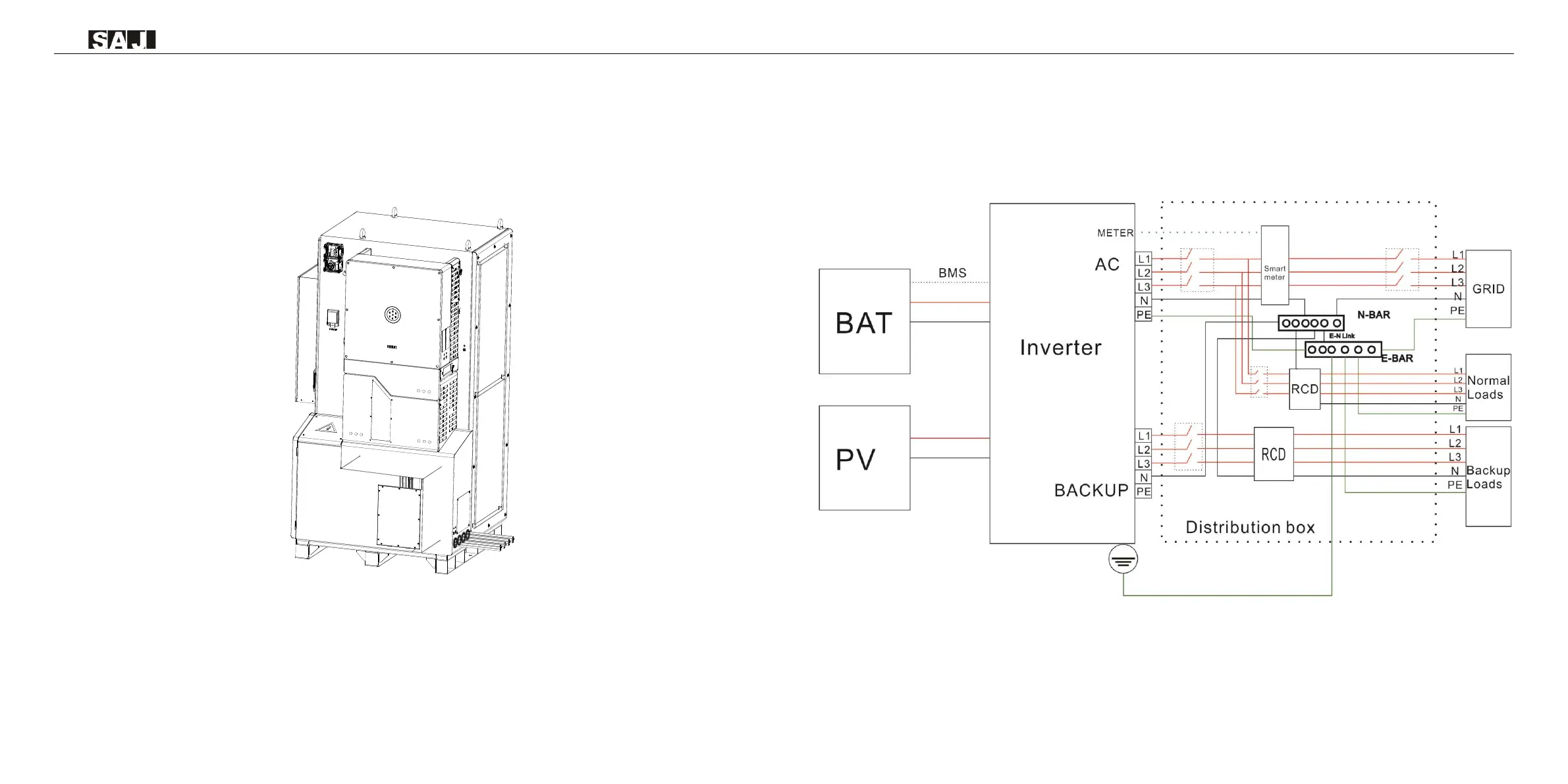

Figure 5.24

Install Decorative Panels

5.8 System Connection

The system connection in Australia and New Zealand is as below, the neutral cable of AC and backup side

must be connected together for the safety reason.

Note: DO NOT connect the PE terminal of BACKUP side.
