SAJ VM1000B User Manual

VM1000B
- 9 -

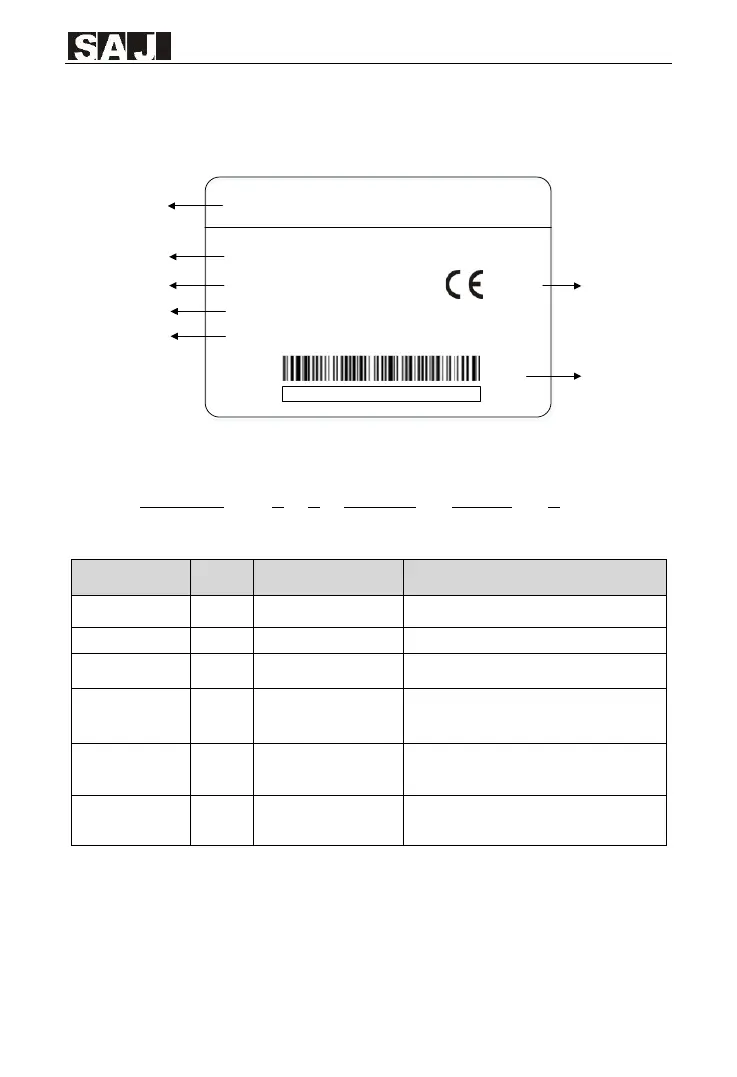

1.2 Product nameplate
IP20
Product model
Power
Input specification
Product barcode
Certification /
Protection level
MODEL: VM1000B-4T18R5GB/022PB-E
POWER: 18.5kW/22kW
INPUT: 3PH AC 380V±15% 38.5/46A 50/60Hz
OUTPUT: 3PH AC 0-380V 37/45A 0-1000Hz
S/N:
Output specification
Guangzhou Sanjing Electric Co., Ltd.
manufacturers
Figure 1-2-1 Product nameplate
1.3 Model description
VM1000B – 4 T 18R5GB / 022PB - E
① ② ③ ④ ⑤ ⑥
Field
No.
Identification
Description
Product series
①
Product series
VM1000B: general vector series
Voltage grade
②
Voltage grade
2: 220VAC； 4: 380VAC
The input
power
③
Power phase
identification
S: single ； T: three-phase
Rated power 1
④
The power range of
G type
18R5-18.5kW，R is the decimal point
G—Constant torque load
B—Built-in brake unit
Rated power 2
⑤
The power range of
P type
022-22kW
P—Variable torque load
B—Built-in brake unit
Product model
suffix
⑥
Supported language
English
Table 1-3-1 VM1000B series model field comment
