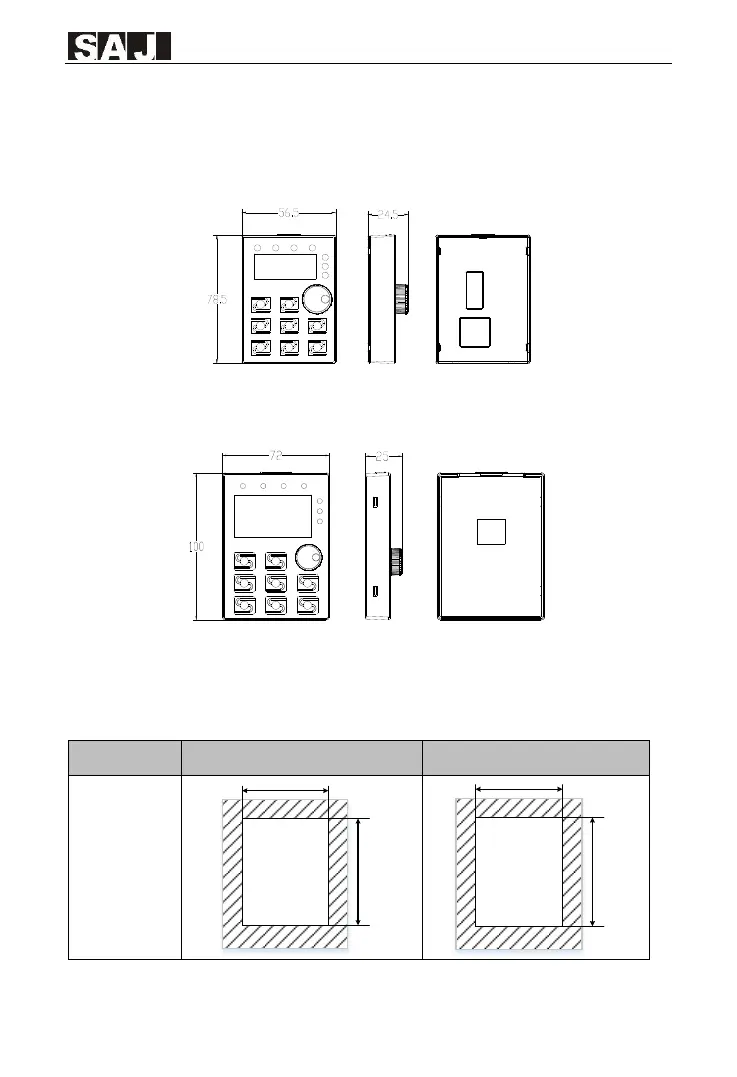

2.2 Keypad structural dimension diagram
■ Keypad size（Unit: mm）
Figure 2-2-1 0.75kW-7.5kW Keypad structure size
Figure 2-2-2 11kW-110kW Keypad structure size
■ Keypad bracket （Unit：mm）
Power range
0.75kW-7.5kW
11kW-110kW
Hole size
69
98.5
85
121
Table 2-2-1 The keypad bracket mounting hole size
