Sako SKI600 - Appendix 3: 610 Series Guide for Rapid Debugging of CNC Machine

171
5"
5#
5$
#SBLF
SFTJTUPS
1
1#
345
5ISFFQIBTFWQPXFSTVQQMZJOQVU
(/%
"*
'8%
3&7
$0.
678&
(SPVOEXJSF
$PNNPO
QPSU
3FWFSTF
὇.Ὀ
'PSXBSE
὇.Ὀ
%$_7
*OQVU
$/$
/VNFSJDBM
DPOUSPM
TZTUFN
.PUPS

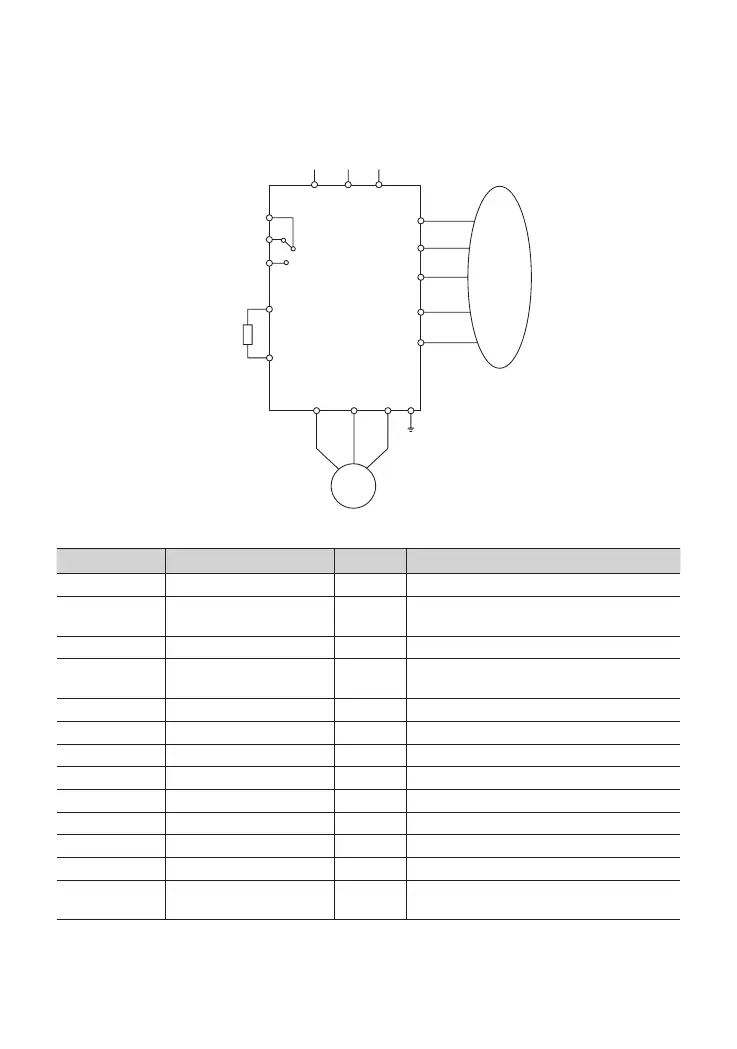

Appendix 3: 610 Series Guide for Rapid Debugging of CNC Machine
Wiring
Parameter setting
Function Code Name Set Value Parameter Description
F0.05 Control mode 2 Open loop current vector control(SVC)
F0.06
Operation command
channel
1 Terminal run command channel
F0.07 Main frequency source A 4 AI2 analog set(DC 0 ～ 10V)
F0.15
Maximum output
frequency
100 Maximum output frequency is 100HZ
F0.16 Upper limit frequency 100 Upper limit frequency is 100HZ
F0.19 Acceleration time 1 3 Acceleration time is 3S
F0.20 Deceleration time 1 3 Deceleration time is 3S
F0.21 Running direction 0 Forward
F2.01 Motor's rate power - Set according to actual motor parameter
F2.02 Motor's rate freq. - Set according to actual motor parameter
F2.03 Motor's rate speed - Set according to actual motor parameter
F2.04 Motor's rate voltage - Set according to actual motor parameter
F2.16 Motor tuning -
0: no action; 1: static tuning;
2: no-load complete tuning
Note: 610 series frequency inverter has been set with the special parameters of CNC machine tools when it leaves
the factory. It only needs to align the system speed; if the actual speed and system speed do not correspond, set
the F0.15 and F0.16 these two parameters.
