Sako SKI600 - Page 91

085
F1.20
Frequency setting of forward jog
operation
0.00 ～【F0.16】upper
limit freq.
5.00
F1.21
Frequency setting of reverse jog
operation
0.00 ～【F0.16】upper
limit freq.
5.00
F1.22
Jog Acc time
0.1 ～ 3600.0s
Depending
on model
F1.23
Jog Dec time
0.1 ～ 3600.0s
Depending
on model
F1.24
jog interval time
0.1 ～ 100.0s 0.1
F1.13
Accelerating time 2
0.1 ～ 3600.0
Depending on
model
F1.14
Decelerating time 2
0.1 ～ 3600.0
Depending on
model
F1.15
Accelerating time 3
0.1 ～ 3600.0
Depending on
model
F1.16
Decelerating time 3
0.1 ～ 3600.0
Depending on
model
F1.17
Accelerating time 4
0.1 ～ 3600.0
Depending on
model
F1.18
Decelerating tirrLe 4
0.1 ～ 3600.0
Depending on
model
There are four kinds of Acc/Dec time to be
defined, make different combination of
control terminals to choose acc/dec time 1 ～4
during VFD running, check F7.00 ～ F7.07 for
de󽗉nition of acc/dec time terminal function.
Notice:
Acc/Dec time 1 is defined in F0.19 and F0.20.
0: second
1: minute
2: 0.1s
This function code defines dimension of
Acc/Dec time.
F1.19
Acc/Dec time unit
0～2 0
F1.20 ～ F1.24 defines relevant parameters
of jog running. As showed in figure F1-5, t1
and t3 are accelerating time and decelerating
time respectively of actual running; t2 is
jog time; t4 is jog interval time (F1.24); f1 is
forward jog running frequency (F1.20); f2 is
reverse jog running frequency (F1.21). The
jog accelerating time of actual running t1 is
determined by the following formula:
t1=F1.20*F1.22/F0.15
The jog decelerating time of actual running t3
is de󽗉ned as follows:
t3=F1.21*F1.23/F0.15
F0.15 is the maximum output frequency.

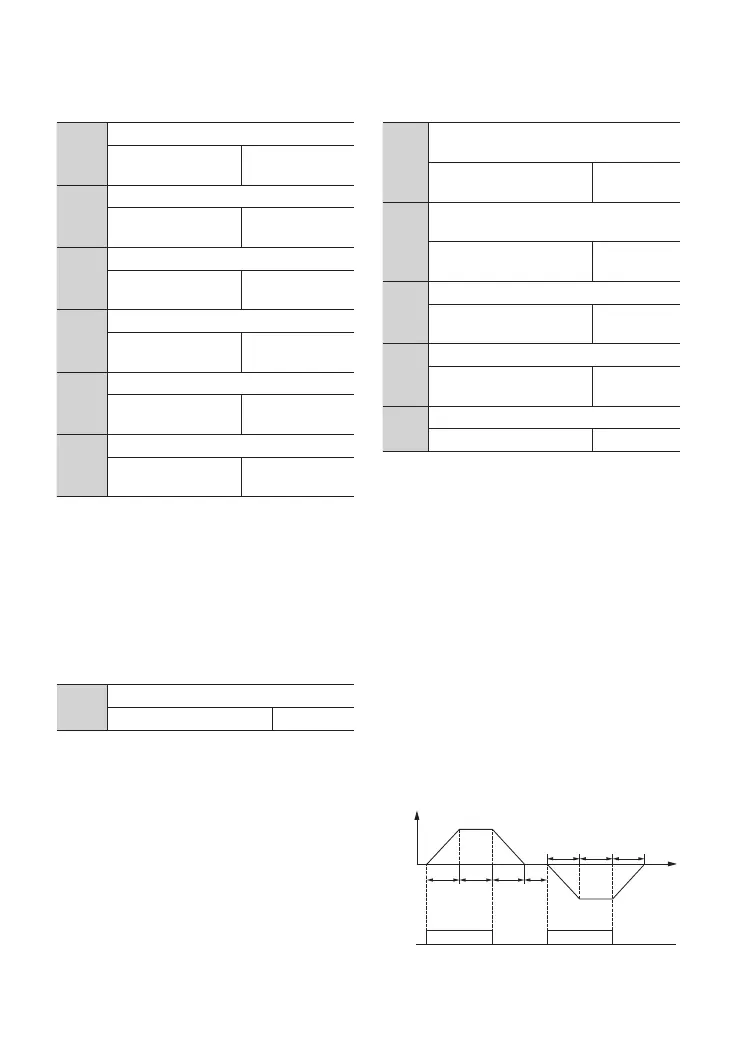

Fig. F1-5 Jog Run
5JNF
'PSXBSE+PH
$PNNBOE
3FWFSTF+PH
$PNNBOE
'SFR
G
G
U
U
U
U
U
U
U
4.2 Detailed Function Description
