Module 5 – Connected Fan Coil Controls
Operation
Section 8

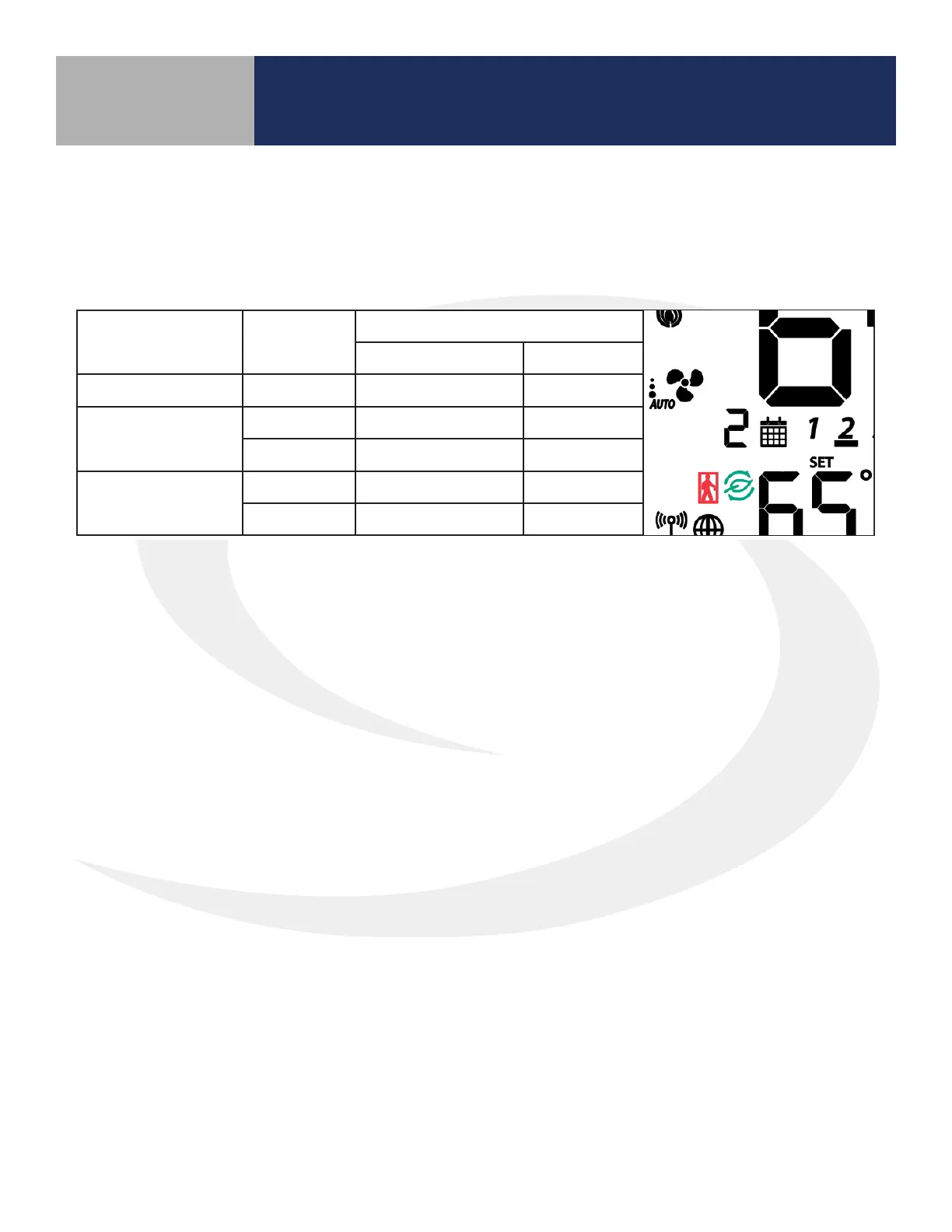

AWAY Mode
Fan Coil Thermostat terminals Ts and Tc are used to initiate or terminate an Away state in the device. The
Ts/Tc contact closure is congured by P16 as a Normally Open or Normally Closed contact, or as an input
to be ignored.
P16
Ts/Tc
Status
P21
0 (Setback Mode) 1(Off Mode)
0 (Disabled) Ignored Inactive Inactive
1 (Normally Closed)
Open Setback Off
Close Inactive Inactive
2 (Normally Open)
Open Inactive Inactive
Close Setback Off
A contact state change detected between the two terminals will initiate the Away timers (P19 or P20)
and once the timers expire, the device will enter or exit AWAY mode (indicated by the “person in
doorway” icon). The timers are canceled if the contact input changes while the timers are active.
If Setback is selected when in AWAY mode (P21), the Setback set points (P17 and P18) will be in eect
(indicated by “leaf” icon), overriding any schedules.
