9 Exploded Views and Parts List
9-4 SAM4S ER-5200 Series
9-1 Main Set
9-1-2 Parts List

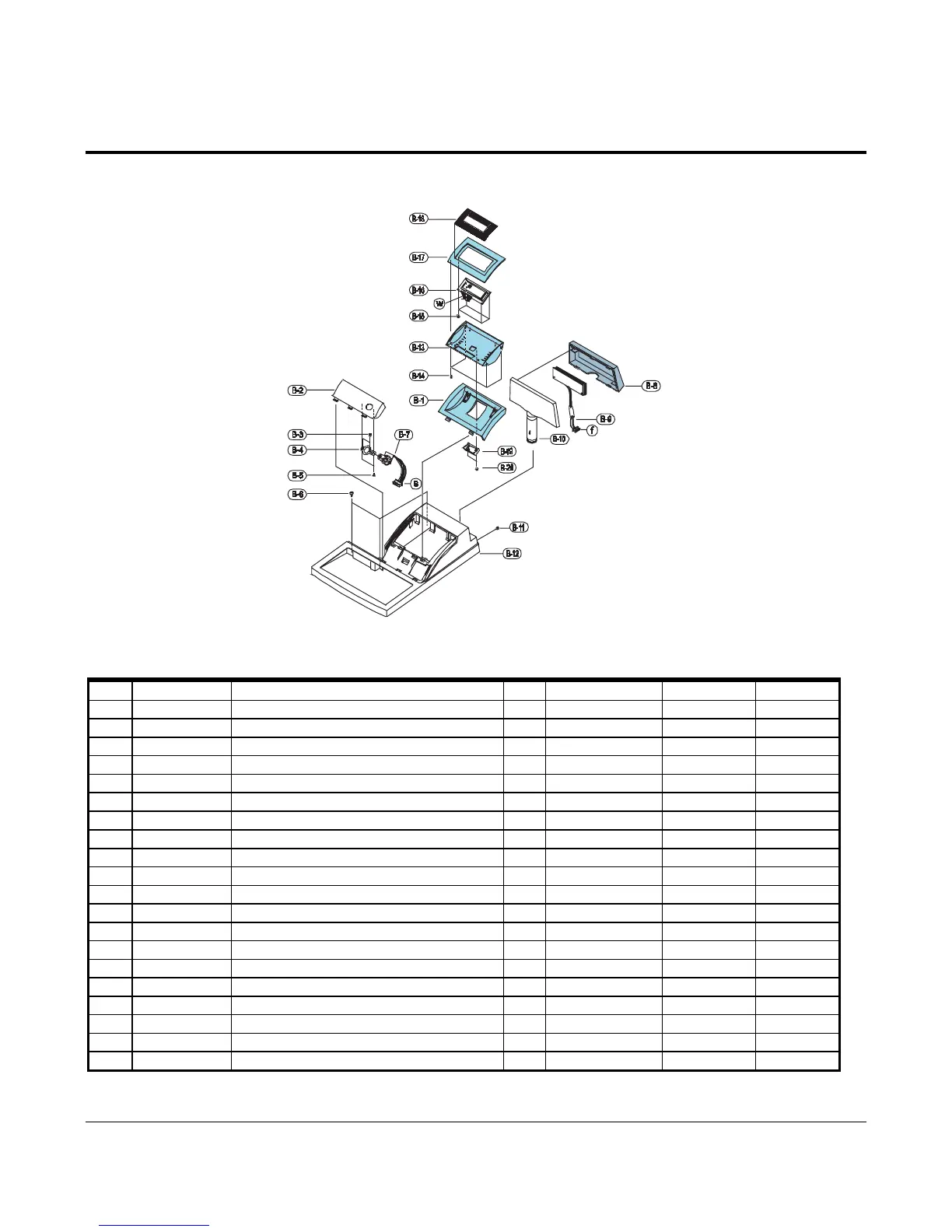

Figure9-4 Case Upper Assembly(ER-5200M)
9-1-2-(b) Case Upper Assembly(ER-5200F(LCD))
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
B-1 JK72-20018A PMO-WINDOW BOTTOM:ER-5500,ABS 1
Y
B-2 JK72-40357W PMO-COVER MODE S/W:ER-5200M,HIPS(VO) 1
Y
ER-5200M
B-3 6002-000319 SCREW-TAPPING:PH,+,2,M3,L8,ZPC(YEL) 2
Y
B-4 JK70-10004A IPR-BRKT MODE S/W:SBHG, T1.0 1
Y
B-5 6002-000319 SCREW-TAPPING:PH,+,2,M3,L8,ZPC(YEL) 2
Y
B-6 6002-100172 SCREW-TAPPING:PH,+,2,M4,L15,ZPC(YEL) 3
Y
B-7 3406-000116 SWITCH-ROTARY:12V,30mA,SP9T 1
Y
B-8 JK72-40359A PMO-WINDOW TURRET: PC 1
Y
B-9 JK92-00970B PBA SUB-TURRET: 10 DIGIT 1
Y
B-10 JK72-40358A PMO-TURRET BODY: HIPS(VO) 1
Y
B-11 6001-000367 SCREW-MACHINE: FH,+,M4,L10,NI 1
Y
B-12 JK72-40352A PMO-CASE UPPER;ER5100 1
Y
B-13 JK72-20019A PMO-WINDOW REAR:ER-5500 1
Y
B-14 JK70-50012A SCREW-TAPPING*PH,+,M2.6,L6,ZPC 4
Y
B-15 JK70-50012A SCREW-TAPPING*PH,+,M2.6,L6,ZPC 4
Y
B-16 JK96-01080E LCD ASS'Y:ER-5200M,2 LINE,STD 1
Y
B-17 JK72-20020A PMO-WINDOW FRONT:ER-5500 1
Y
B-18 JK72-20021C PMO-WINDOW VIEW:ER-5200M,ACRYL 1
Y
B-19 JK72-20022A PMO-HOLDER WINDOW:ER-5500,POM,NATURAL 1
Y
B-20 6002-000174 SCREW-TAPPING:PWH,+,2,M3,L10,ZPC(YEL) 2
Y
To Next Page
