Sam4s ER-5200 Service Manual

9 Exploded Views and Parts List
SAM4S ER-5200 Series 9-5
9-1 Main Set
9-1-2 Parts List

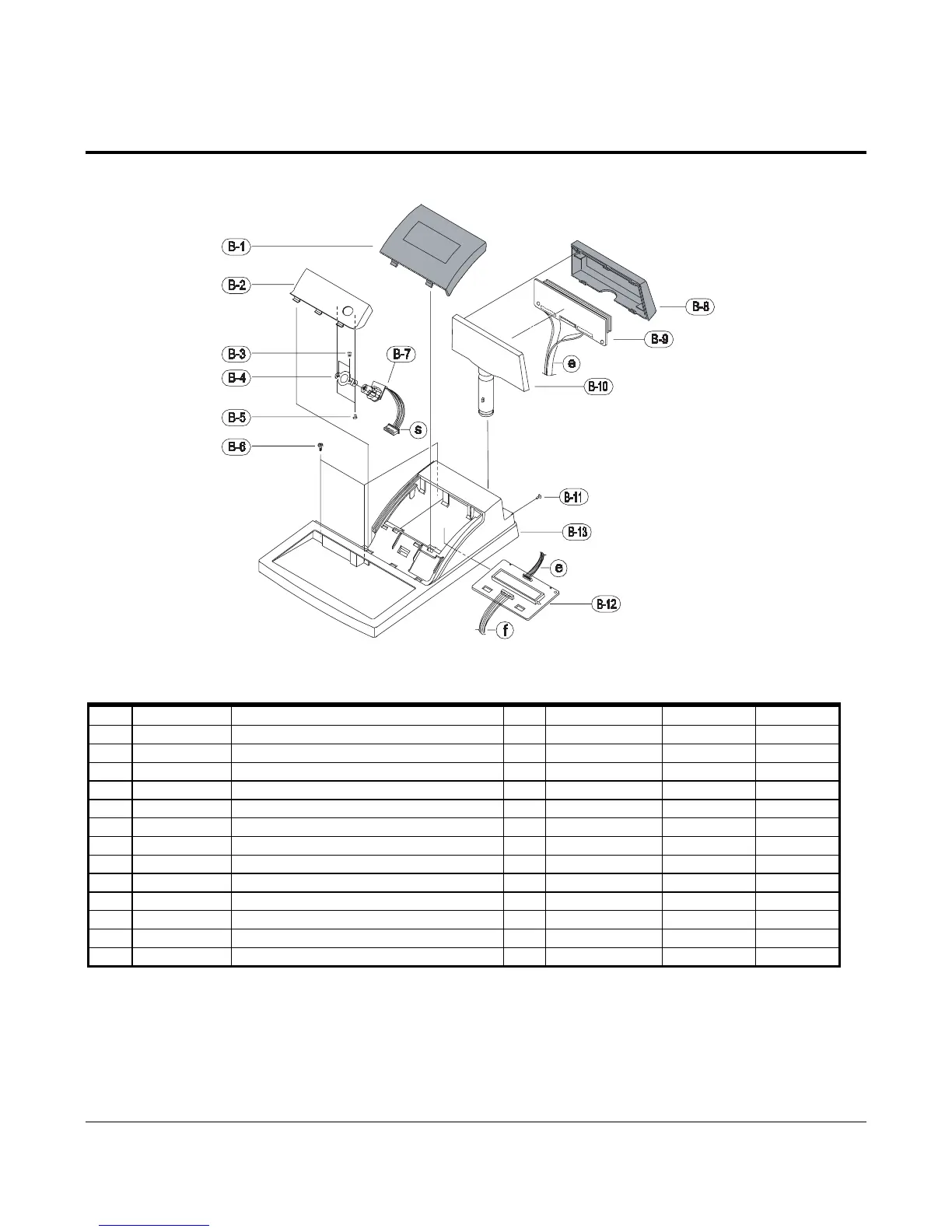

Figure9-5 Case Upper Assembly(ER-5200)
9-1-2-(b) Case Upper Assembly(ER-5200F(VFD))
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
B-1 JK72-40356G PMO-WINDOW DISPLAY:ER-5200,PC,STD 1 Y
B-2 JK72-40357N PMO-COVER MODE S/W:ER-5200,HIPS,IV30,V0, 1 Y
ER-5200
B-3 6002-000319 SCREW-TAPPING:PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-4 JK70-10004A IPR-BRKT MODE S/W:SBHG, T1.0 1 Y
B-5 6002-000319 SCREW-TAPPING:PH,+,2,M3,L8,ZPC(YEL) 2 Y
B-6 6002-100172 SCREW-TAPPING:PH,+,2,M4,L15,ZPC(YEL) 3 Y
B-7 3406-000116 SWITCH-ROTARY:12V,30mA,SP9T 1 Y
B-8 JK72-40359A PMO-WINDOW TURRET: PC 1 Y
B-9 JK92-00970B PBA SUB-TURRET:ER-450,WORLD,BASIC 1 Y
B-10 JK72-40358A PMO-TURRET BODY: HIPS(VO) 1 Y
B-11 6001-000367 SCREW-MACHINE: FH,+,M4,L10,NI 1 Y
B-12 JK92-01230B PBA SUB-DISPLAY:ER-5200F,STD,YH 1 Y
B-13 JK72-40352A PMO-CASE UPPER;ER5100 1 Y
