9 Exploded Views and Parts List
9-6 SAM4S ER-5200 Series
9-1 Main Set
9-1-2 Parts List

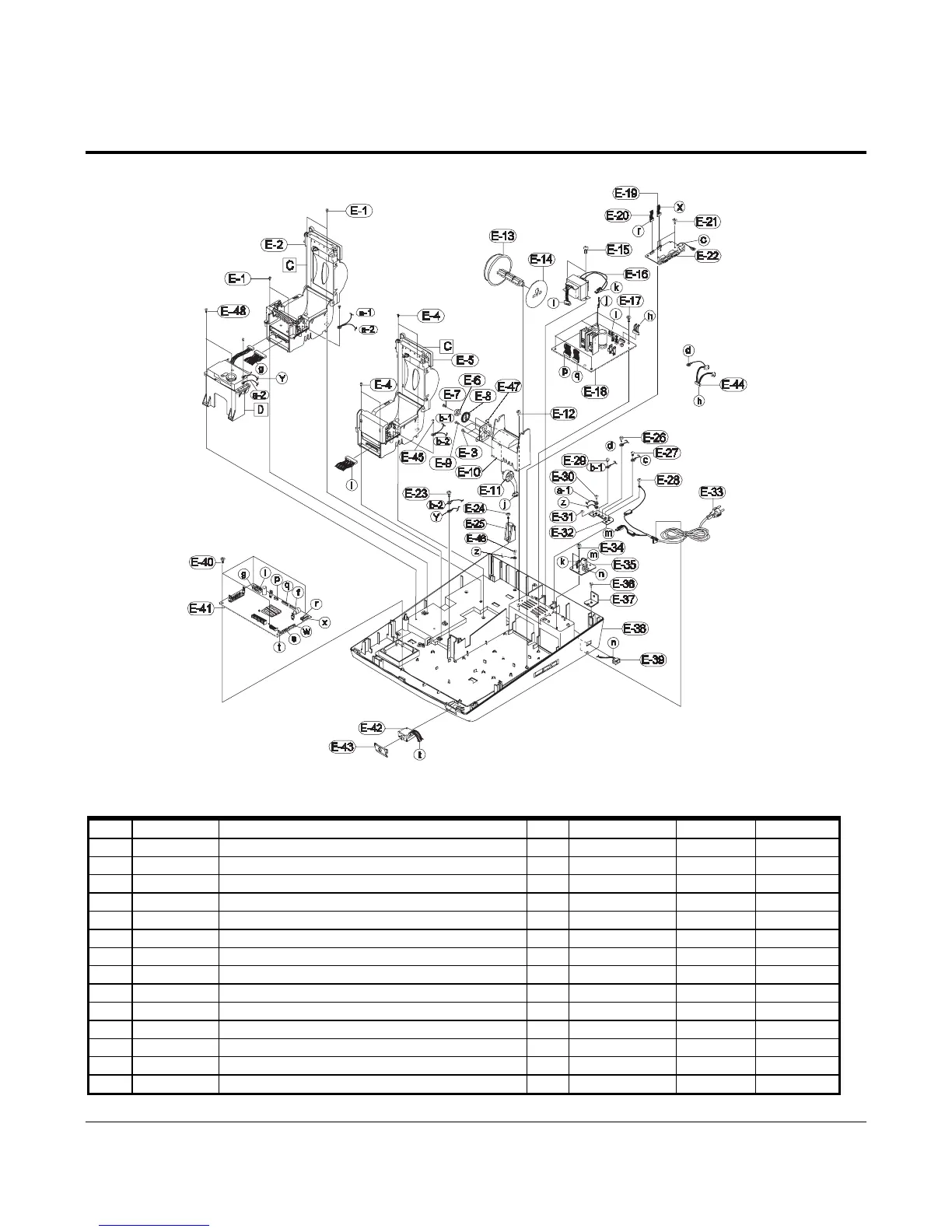

Figure9-6 Case Lower Assembly
9-1-2-(e) Case Lower Assembly
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
E-1 6003-000198 SCREW-TAPPING: PWH,+,2,M3,L12,ZPC(YEL) 4 Y
E-2 JK59-20001B UNIT-PRINTER:STM-210,RECEIPT: WITH AUTO CUTTER 1 Y
E-3 6002-000175 SCREW-TAPPING:PWH,+,2,M3,L8,ZPC(YEL) 3 Y
E-4 6003-000198 SCREW-TAPPING: PWH,+,2,M3,L12,ZPC(YEL) 4 Y
E-5 JK59-20001A UNIT-PRINTER:STM-210,JOURNAL; NON AUTO CUTTER 1 Y
E-6 JK70-60002A RMO-RUBBER SPOOL: URETHANE,BLACK 1 Y
E-7 6002-000175 SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL) 1 Y
E-8 JK72-20017A PMO-GEAR SPOOL: POM 1 Y
E-9 JK70-50013A SCREW-MACHINE: PWH,+,M2.6,L5.5 2 Y
E-10 JK72-20014A PMO-HOLDER SPOOL: ABS,BLACK 1 Y
E-11 JK97-10015A ASS'Y-MOTOR SPOOL: DC-MOTOR 1 Y
E-12 6002-000171 SCREW-TAPPING: PH,+,2S,M4,L10,ZPC(YEL) 1 Y
E-13 JK72-20015A PMO-SPOOL WINDING: HIPS(HB),BLACK 1 Y
E-14 JK72-20016A PMO-GUIDE WINDING: ABS/BLACK 1 Y
