SAME SILVER 100.6 - Page 416

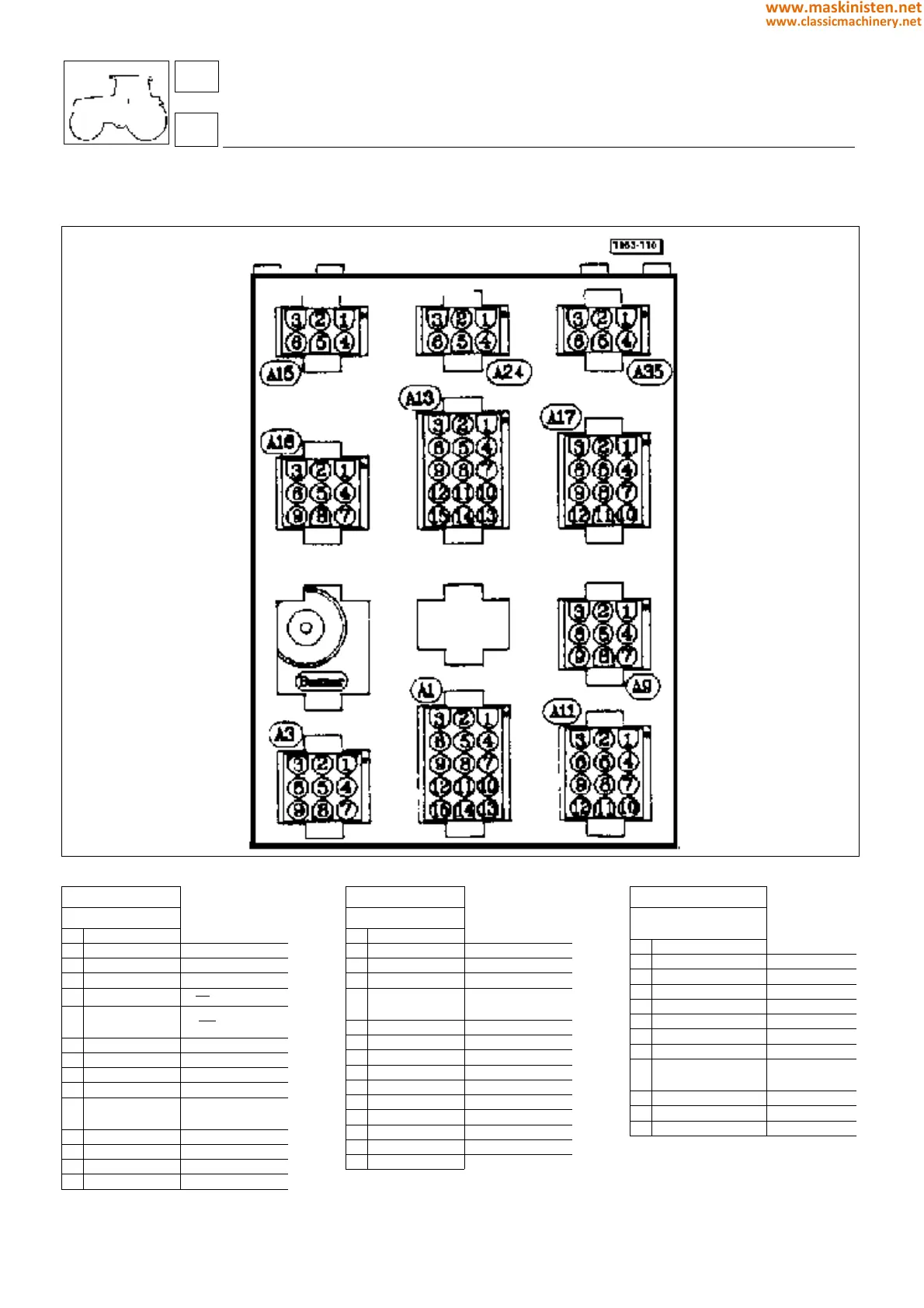

Connectors plugged into fuse box (see also page 417)
system
selectrical system
A 13
TO CHECK PANEL
1 POSITION LIGHTS GN 0.5
2 LOW BEAM LIGHTS VN0.5
3 +12 VOLT MB1
4 RESERVE LIGHT HN1
5 D+ GENERATOR
L1
L1
6
OIL ENGINE
PRESSURE
M1
M1
7 II TRAILER LIGHT Z1
8 DIRECTIONS RN 0.5
9 I TRAILER LIGHT AR0.5
10 GND N1
11
AIR FILTER
OBSTRUC.
B1
12 COLD START LIGHT S1
13 4 WHEEL DRIVE AR1
14 FRONT SIDE PTO MN1
15 +12 VOLT MB1
A 1
TO UNDERMAT WIRING
1 POSITION LIGHTS G1.5
2 POSITION LIGHTS GN1
3 +12 VOLT R1
4 HAND BRAKE NZ1
5
FRONT GLASS
WASHER
LR1
6 +12 VOLT MB1.5
7 +FRONT PTO MN1 /MN1
8 REAR PTO MV1
9 4WD LIGHT AR1
10 FUEL LEVEL C0.5
11 FUEL LIGHT HN1
12 "W" BR1
13 +12 VOLT M1
14 +12 VOLT M1
15 CLOSED
A 17
TO INSTRUMENTS
WIRING
1 POSITION LIGHTS GN 0.5
2 FUEL LEVEL INDICATOR C 0.5
3 +12 V FLASHING LIGHT VG1.5
4 BACK WORK LIGHTS RG 1
5 FRONT WORK LIGHTS GR 1.5
6 SPOT LIGHT HR 1
7 +12 VOLT MB 1
8 GND N 0.5
9
LOW FRONT
WORK LIGHTS
RV 1
10 "W" BR1
11 TEMPERATURE IND. R1 R1
12 OUT FLASHING LIGHT VG1.5
