SAMES KREMLIN 20F50 - Disassembly; Reassembly of Air Supply Assembly

582156110-EN-indC-Pump-20F50 pH.docx 20/11/2020
149
13.8 Disassembly / Reassembly of air supply assembly

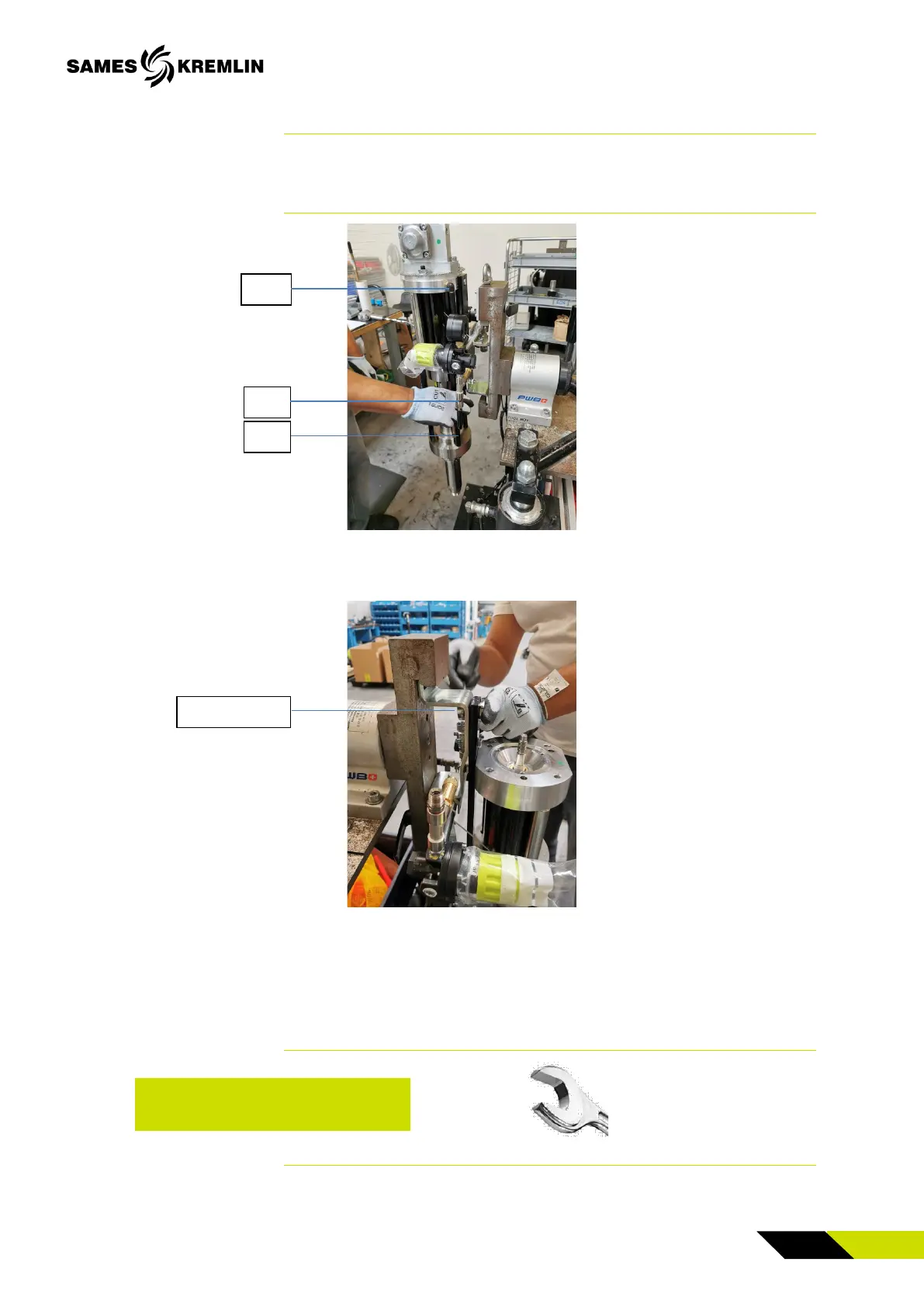

 Disconnect the hose (19) between connectors (11)
and (18).
 Unscrew the 2 screws (9) and the 2 nuts (16) using 2 flat
13 mm wrenches.
 Remove the 2 washers (14), the 2 screws (9), the 2
washers (15) and the 2 nuts (16).
Tools needed
11
19
18
9, 14, 15, 16
13 x2
