9 Installation
Pump
The pumps are designed to be installed in a paint booth or outside.
Connections subsets
Motor - fluid section
These fluid sections are intended to be coupled to pneumatic motors
of compatible stroke.
It is imperative to comply with a motor / fluid section combination
provided by SAMES KREMLIN.
Grounding
Coupled with a pneumatic motor, the fluid section will be
grounded via the earth cable of this motor.
This ground cable must be connected to a safe and solid ground.

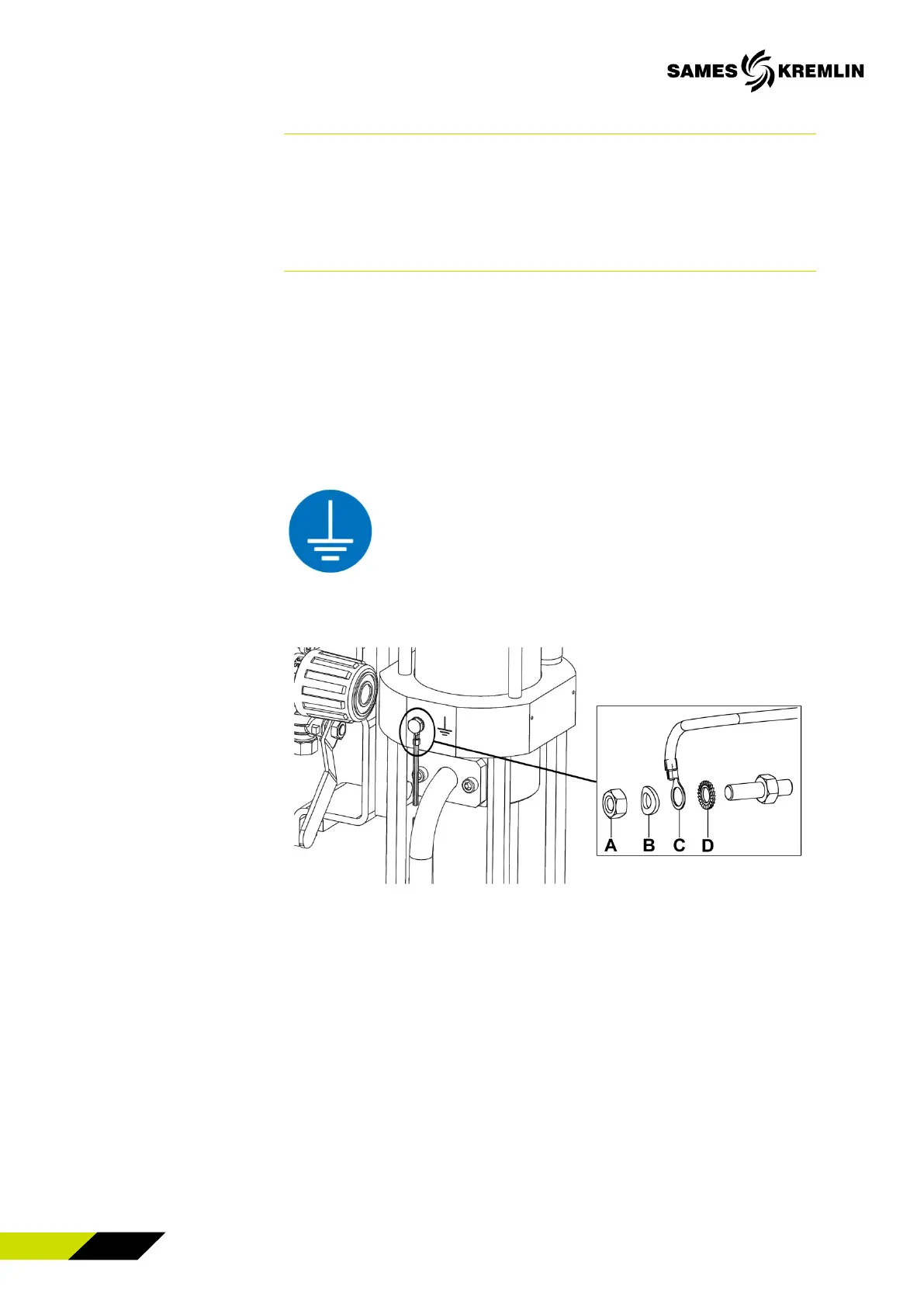

Loosen the lock nut (A), remove the washer (B), insert the lug
(C) with its ground wire (min. section: 1.5 mm2) between the
washer (B) and the washer (D).
Retighten the lock nut. Connect the other end of the wire to a
real "ground" that complies with the regulations of the country
and locality concerned.
Have the earth continuity checked by a qualified electrician.
