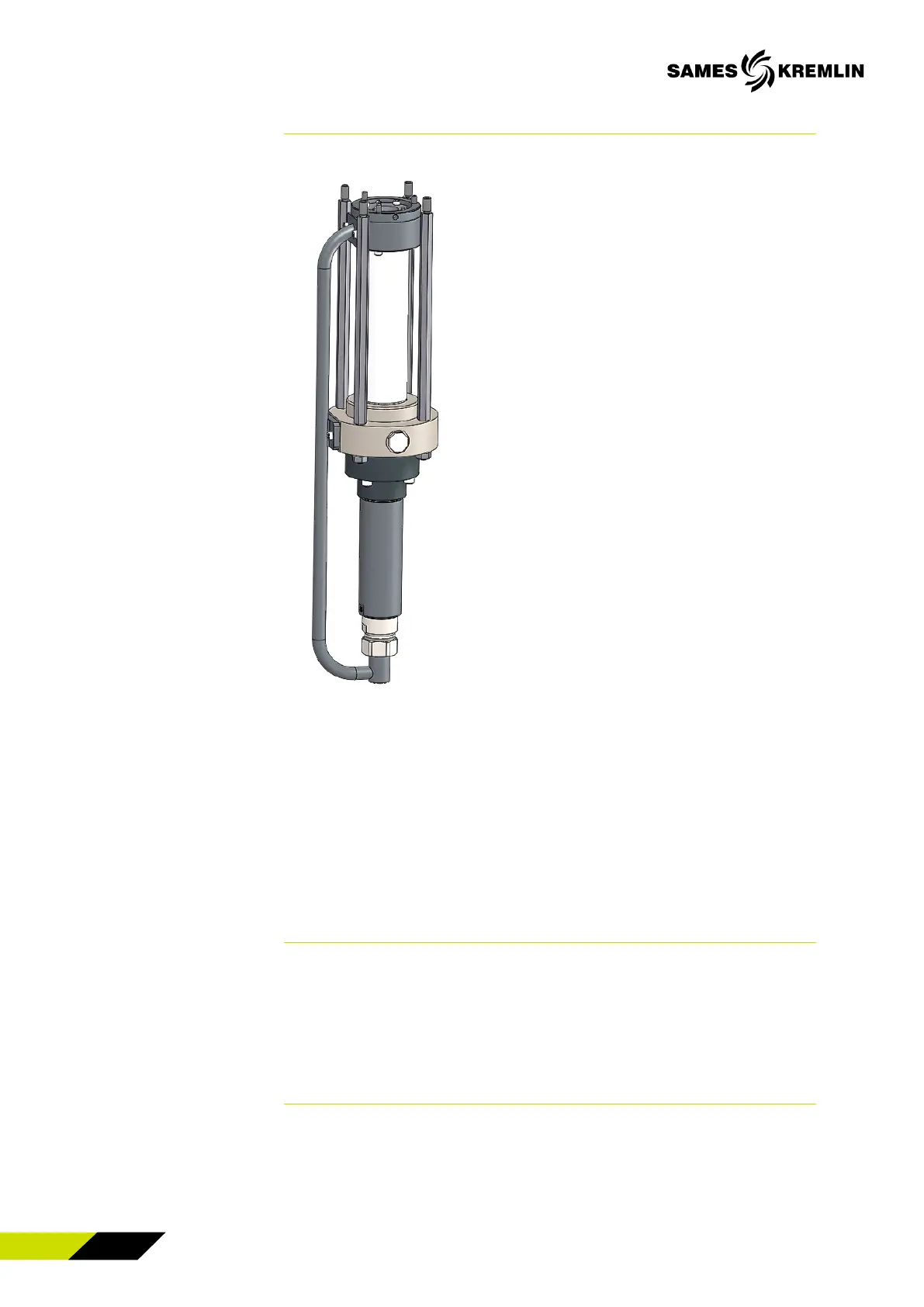

Fluid section, model F50 pH
Fluid section features:
 Flowmax F50 pH
 Hydraulic section : 2.5 cm² / 0.4 sq.in
 Fluid volume delivery per cycle : 50 cc / 1.76 oz
 Number of cycles : 20 per L / 76 per gal
 Fluid flow rate (30 cycles) : 1.5 L/mn / 0.4 US gal
Sealing gasket :
 Fixed : PTFE static O-rings and PE bellows,
 Upper : PE seal,
 Lower : PE seal.
