SECTION 5 | Battery Charging in Evolution™ Series
15
14
13
12
11
10
0
30
28
26
24
22
20
0
Battery Voltage, VDC
TIME
BATTERY CURRENT
(% VALUE = % OF BULK CURRENT “Io”)
100%
60%
0%
BULK
STAGE
ABSORPTION STAGE (*See NOTE 4)
Displayed as:
“4-Bulk Stage”
Displayed as:
“4-Absorption Stage”
V=”ABSORP VOLTAGE”
”
I ”
BULK CURRENT, I =” Io ”
24V Battery 12V Battery
LEGEND for Fig 5.4
—————
Voltage (V) Curve
•••••
Current (I) Curve
Io
Bulk Stage Current. Please see Section 5.7.1.1
"4-Bulk Stage",
"4-Absorption
Stage"
This coded information relates to the active Charging Prole and Charging Stage and is displayed in the 2
nd
line of the
Charging Mode Display Screens of EVO-RC-PLUS Remote Control. Please see Table 3.2 under Section 3.6.4.3 of EVO-
RC-PLUS Remote Control Manual
NOTES for Fig 5.4
1. Please see Srl. 1 of Table 5.3 for details of charging process
2. Voltage (V) and Current (I) curves show the battery voltage and current.
3. The Voltage (V) and Current (I) curves shown are based on the following operating conditions:
a) The battery is being charged exclusively by the Battery charging Section of EVO and that there is NO external charging source that is
charging the battery / battery bank
b) There is no external DC load on the battery / battery bank (the entire current delivered by the Charging Section of EVO is being used
to charge the battery / battery bank)
4. Please see Section 5.7.4 regarding conditions under which the charger will be forced to reset automatically and restart charging from the
1
st
Stage i.e. Bulk Stage of the programmed CHARGING PROFILE

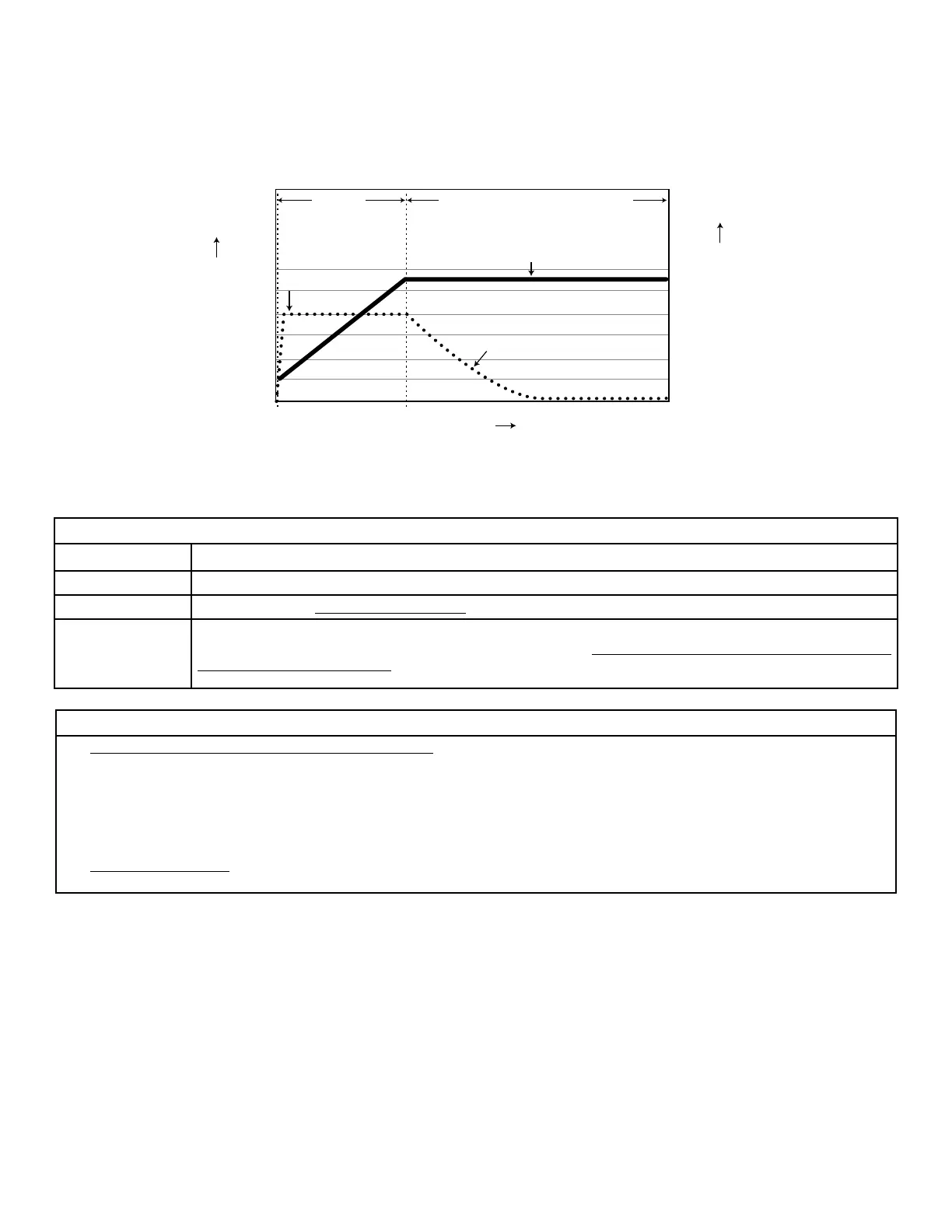

Fig 5.4 Voltage – Current (V-I) Curves for "2-Stage Type 2" Charging Prole
