Samlexpower Evolution Series - Installation; Safety of Installation

SAMLEX AMERICA INC. | 35
SECTION 3 | Installation
3.1 SAFETY OF INSTALLATION
WARNING!
Please ensure safety instructions given under Section 1 are strictly followed.
MISE EN GARDE
Se il vous plaît assurer consignes de sécurité fournies à la section 1 sont strictement suivies.
3.2 OVERALL DIMENSIONS

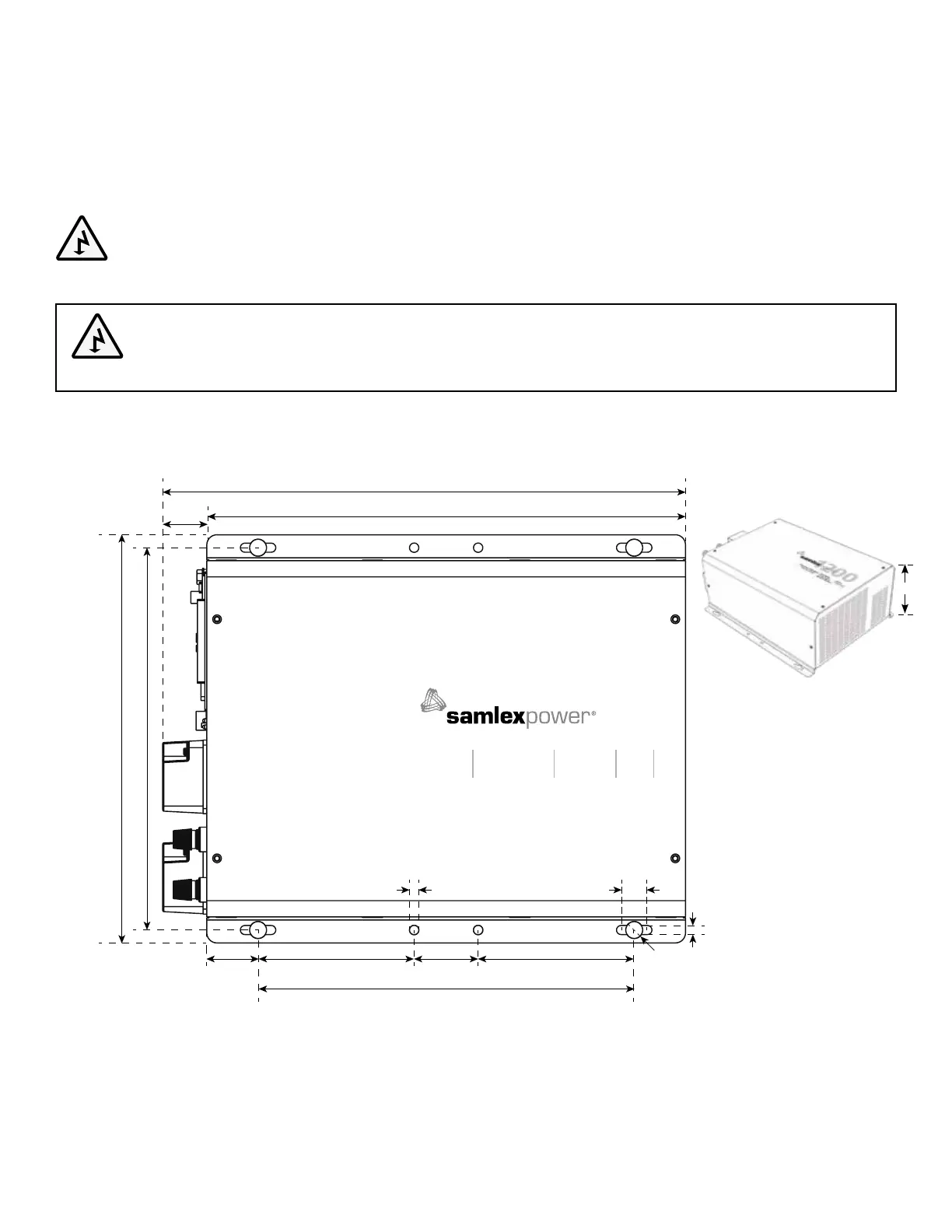

The overall dimensions and the location of the mounting holes are shown in Fig. 3.1.
1200
Model
EVO-1212F
Inverter Charger
Pure Sine Wave
120 0 Watts
12 VDC Input
120 VAC Output
380
415
35
303.5
324
40.7 123.90 50.80
298.6
123.90
7.40
dia
20.90
7.40
dia
Hole dia
13.40
Mounting Holes: 7.4 mm / 0.29”
Mounting Bolts: M6 or /”
Height: 148 mm
NOTE: All dimensions are in mm
Fig. 3.1 Mounting Dimensions
148
