36 | SAMLEX AMERICA INC.
3.3 MOUNTING OF THE UNIT
In order to meet the regulatory safety requirements, the mounting has to satisfy the following requirements:
• Mount on a non-combustible material
• The mounting surface should be able to support a weight of at least 60 Kg / 132 lbs. Use 4 pcs of 1/4" or M6
mounting bolts and lock washers
Cooling: The unit has openings on the front, bottom and back for cooling and ventilation. Ensure that these openings
are not blocked or restricted. Install in cool, dry and well ventilated area.
CAUTION!
Ensure there is OVER 200 mm clear space surrounding the inverter for ventilation.
ATTENTION!
Assurer qu’il y a PLUS QUE 200 mm d’espace DÉGAGÉ entourant l’onduleur pour faciliter
la ventilation.
Mounting Orientation:
• Mounting Arrangement 1:
Mount horizontally on a horizontal surface (e.g. table top or a shelf). Please see Fig. 3.2.

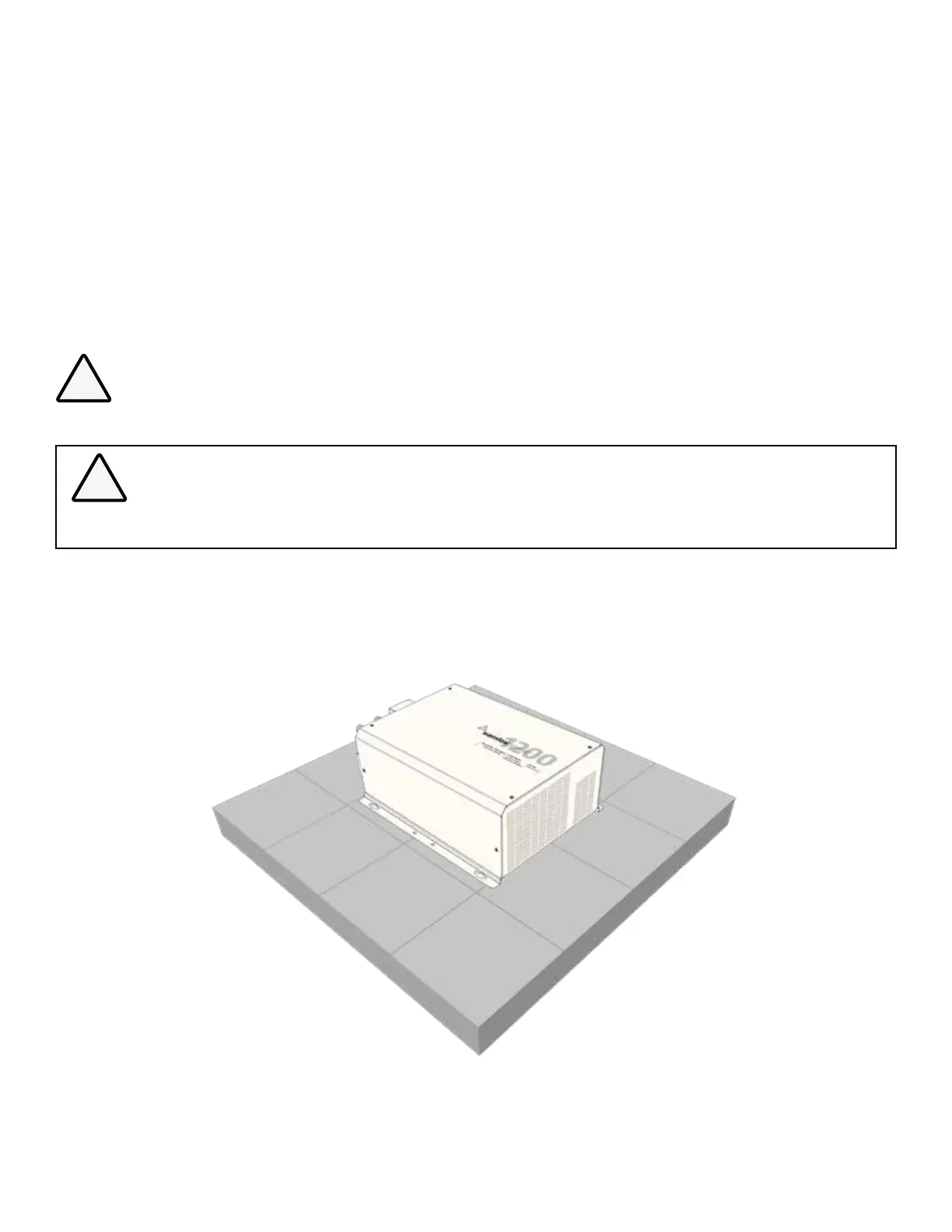

Fig 3.2 Mounting Arrangement No.1: Horizontally On Horizontal Surface
SECTION 3 | Installation
