• Mounting Arrangement No. 2:
Mount horizontally on a vertical surface (like a wall). Please see Fig. 3.3.

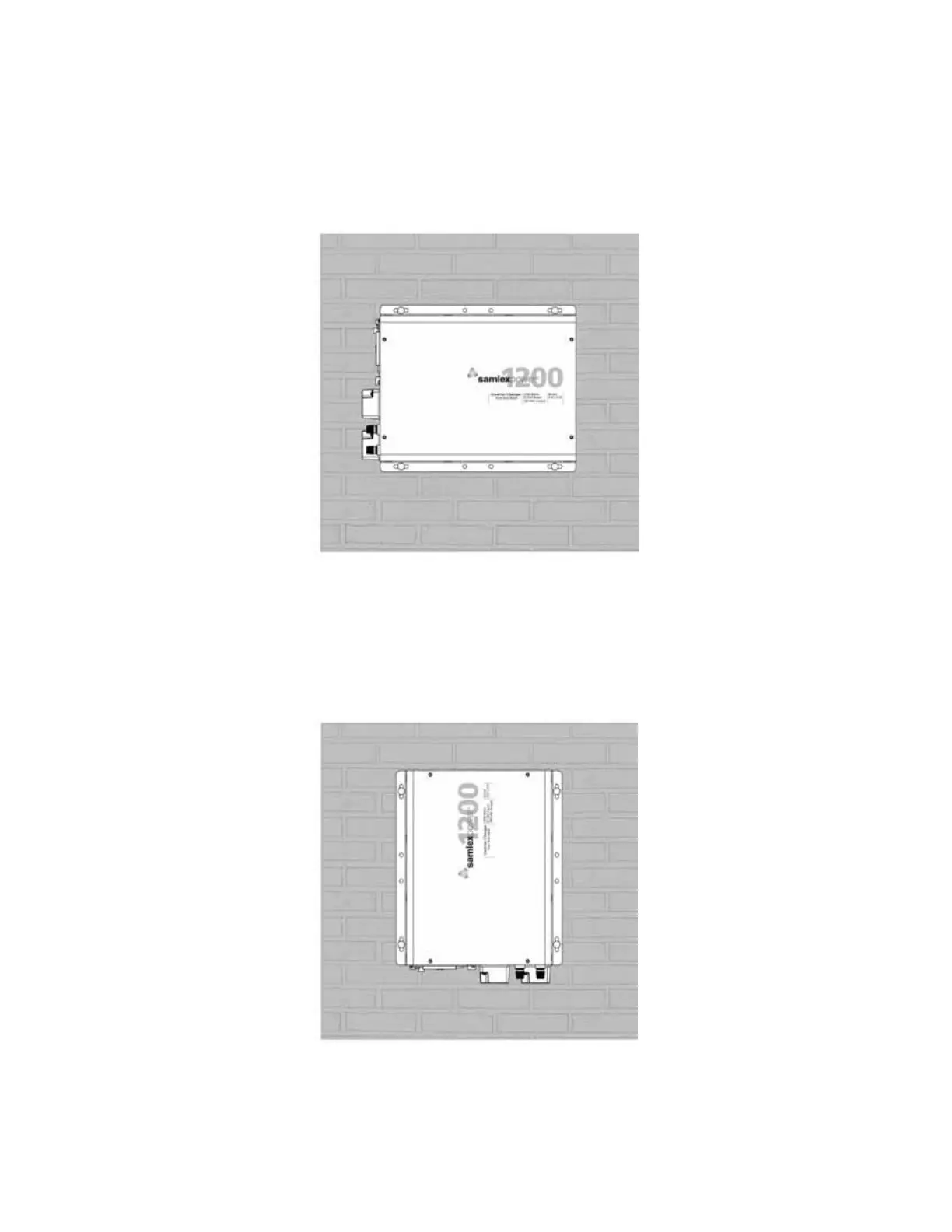

Fig 3.3 Mounting Arrangement 2: On Vertical Surface
• Mounting Arrangement No. 3:
Mount vertically on a vertical surface, see Fig. 3.4. Protect against possibility of small objects or water entering
the ventilation openings on the top. (If necessary, install a suitable sloping guard at least 200mm from the top
surface). Also, ensure there is no combustible material directly under the unit.
Fig 3.4 Mounting Arrangement 3: On Vertical Surface
