Design and principle of operation
1 Actuator housing with oil reservoir
2 Cylinder housing
3 Terminal compartment
5.1 Cylinder
5.2 Piston
5.4 Stem connector
5.6 Actuator stem
5.7 Compression spring
5.8 Compression spring
6.1 Motor
6.2 Gearpump
6.3 Check valve
6.4 Pilot valve
1
6.4
6.3
6.2
6.1
5.1
2
5.4
5.6
3
5.2
5.7
5.8

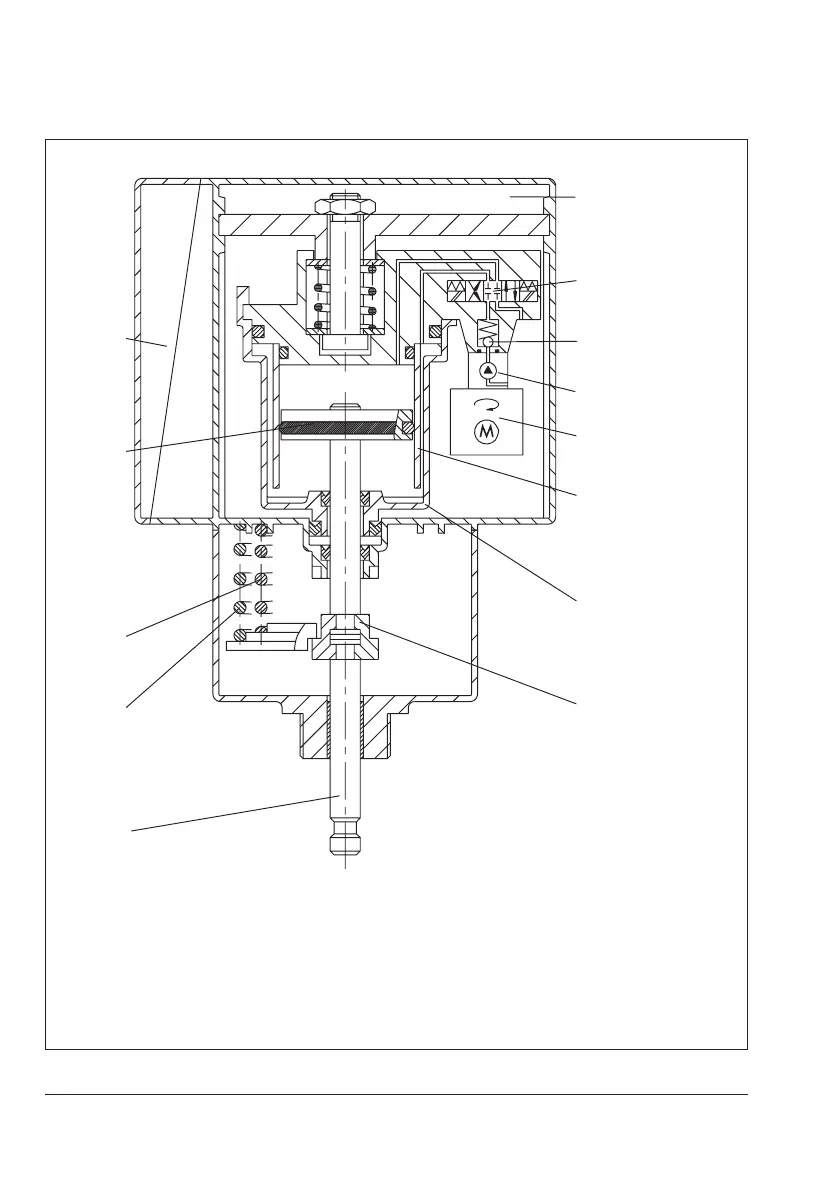

Fig.3-1: Design and principle of operation
