Samson 3274 - Page 51

EB 8340 EN 8-3
Operation
1
2
3
4
5
6
7
8
13
12
11
10
9
1 Tamper-proof seal
2 Motor electronics
3 Adjuster for version with
positioner
4 Gearsegment
5 Slide rod
6 Release button
7 Marking pin
8 Isolating terminal
9 Pushbutton (extend the actuator
stem)
10 Pushbutton (retract the actuator
stem)
11 Resistance transmitters
12 Limit contact(s)
13 Slider switch for version with
positioner
Red marking pin
Disconnect
isolating terminal
Connect
isolating
terminal
Release button

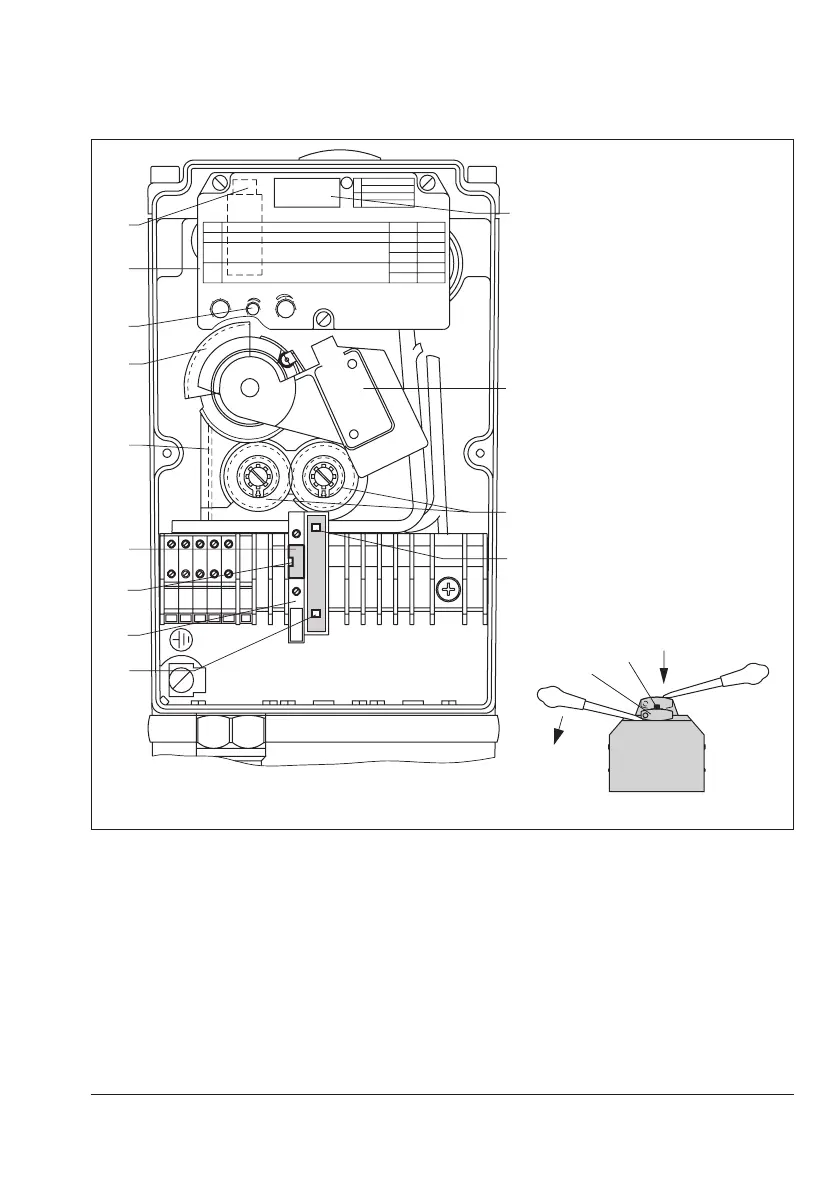

Fig.8-1: Terminal compartment with the side housing cover removed
