Samson 3372 - Operating the Handwheel of Version with Stem Retracts Direction of Action

6-6 EB 8313-3 EN
Start-up
6.3.2 Operating the hand-
wheel of version with
"stem retracts" direction
of action
1. Turn the handwheel clockwise. The actu-
ator stem extends causing a globe valve
to close.
2. Extend the actuator stem up to the re-
quired position.
A60 Upper actuator section
A62 Spindle
A64 Cover
A65 Pin
A66 Sleeve
A68 Retaining washer
A64
A68
A66
A65
A62
A60

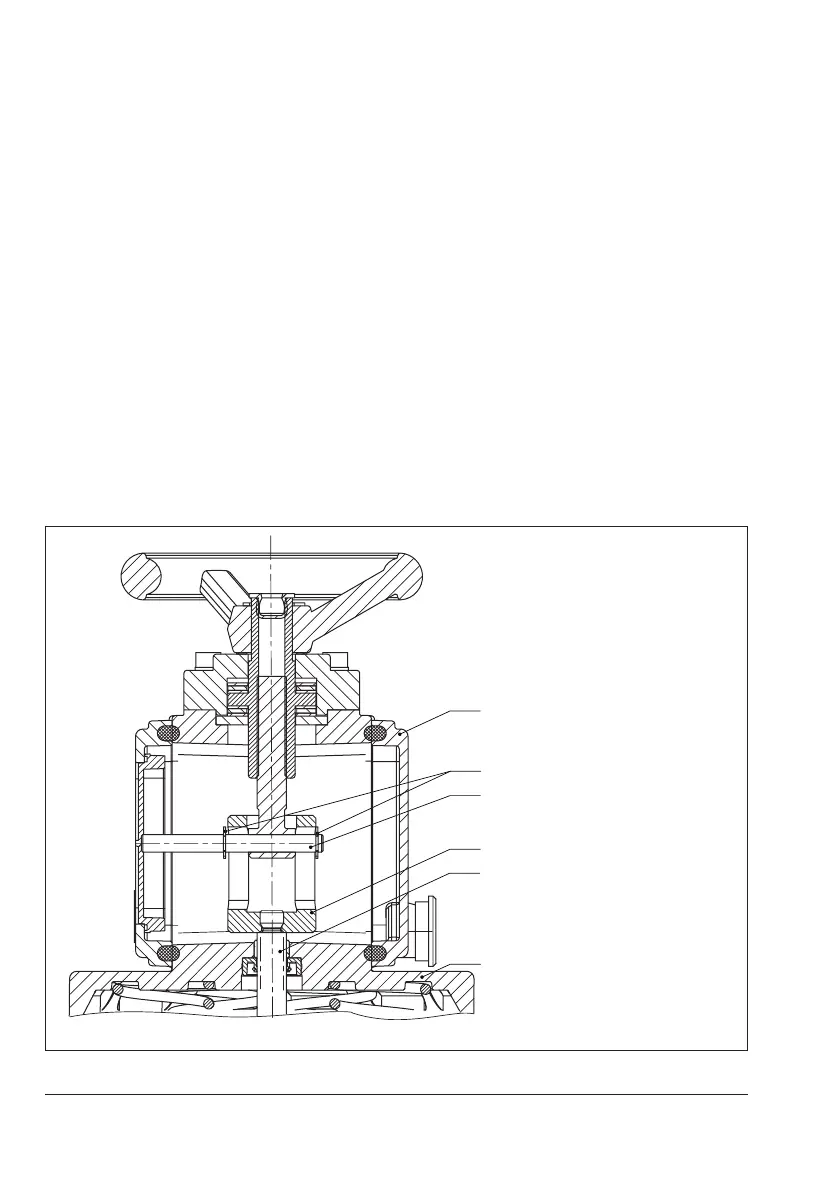

Fig.6-3: Handwheel with 120cm² version
