EB 8387-3 EN 23
Attachment to the control valve – Mounting parts and accessories
10
11
1
1
14.1
3
3.1
16
15
14
1
1.2
1.1
2
9.1
9
6
7
8
6.1

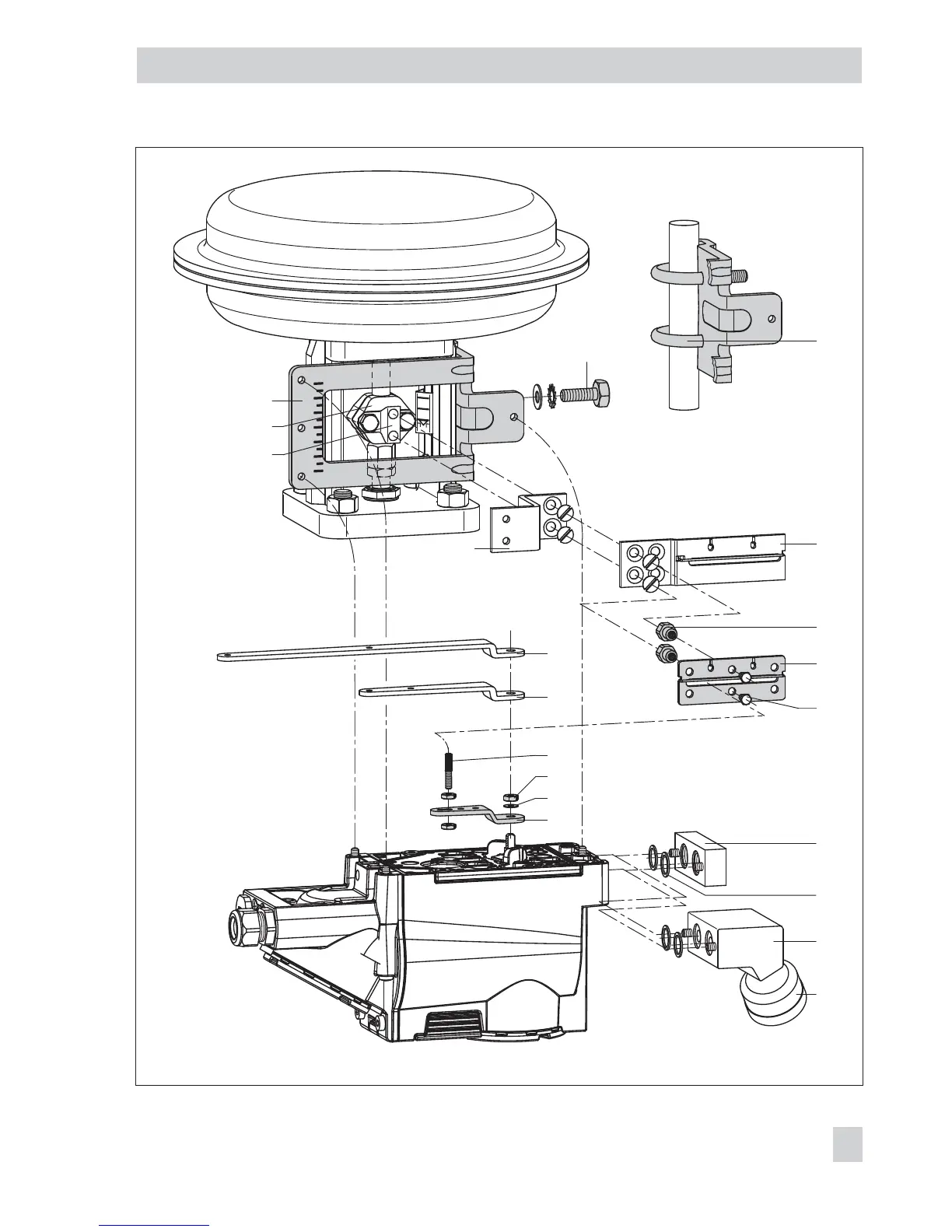

Fig. 6 · Attachment according to IEC 60534-6 (NAMUR)
1 Lever
1.1 Nut
1.2 Disk spring
2 Follower pin
3 Follower plate
3.1 Follower plate
6 Connecting plate
(only for G ¼)
6.1 Seal rings
7 Pressure gauge bracket
8 Pressure gauge
mounting kit
9 Stem connector
9.1 Bracket
10 NAMUR bracket
11 Screw
14 Bolt
14.1 Screw
15 U-bolt
16 Bracket
Additional bracket for
actuators with 2800 cm²
and travel
≥
60 mm
Fit screw restriction into output (38)
for actuators smaller than 240 cm²
Attachment to
NAMUR rib
Attachment to rod-type yoke
Rods with 20 to 35 mm Ø
XL and L lever
