Samson 3731-3 - Page 27

EB 8387-3 EN 27
Attachment to the control valve – Mounting parts and accessories
6
6.1
7
8
1
1.1
1.2
2
4.1
3
10.1
10
11
5
4.3
4
4.2
4.1
3
5.1
5
10.1
10
4.3
4
4.2

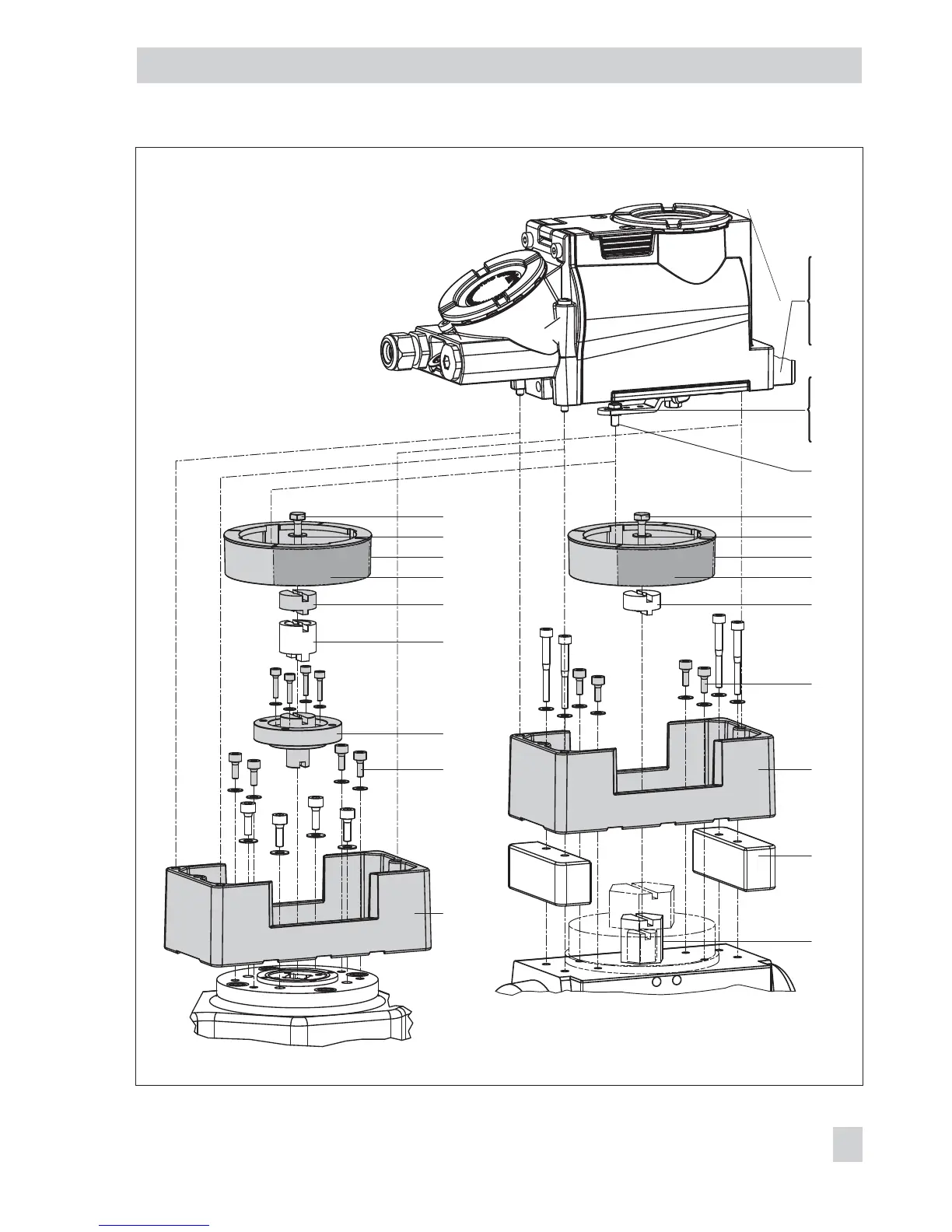

Fig. 9 · Attachment to rotary actuators
Fit screw restriction into signal pressure output for
actuators with < 300 cm³ volume
6 Connecting plate (only for G ¼)
6.1 Seal rings
7 Pressure gauge bracket
8 Pressure gauge mounting kit
10 Adapter housing
10.1 Screws
11 Spacers
1 Lever
1.1 Nut
1.2 Disk spring
2 Follower pin
3 Adapter
4 Coupling wheel
4.1 Screw
4.2 Disk spring
4.3 Adhesive label
5 Actuator shaft
or adapter
5.1 Adapter
Attachment acc. to VDI/VDE 3845
(Sept. 2010) level 1, size AA1 to AA4
(see section 12.1)
SAMSON Type 3278
VETEC S160, VETEC R
