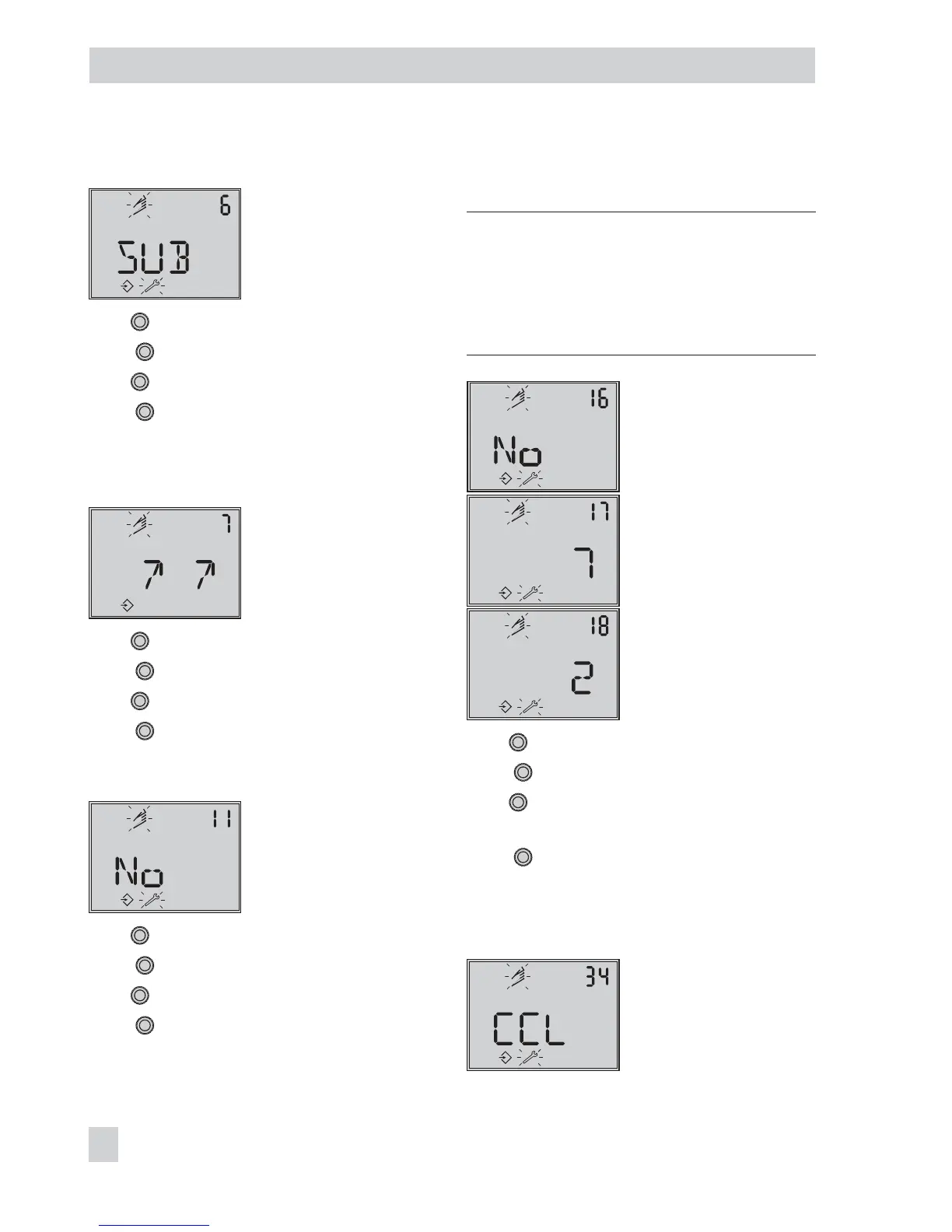

Select initialization mode:
Initialization mode
Default: MAX
Turn
→
Code 6
Press
Turn
→
SUB
Press to confirm the SUB initialization
mode.
Enter direction of action:
Direction of action
Default: ää
Turn
→
Code 7
Press , Code
7 blinks.
Turn
→
Direction of action (ää/äæ)
Press
Deactivate travel limit:
Travel limit
Default: 100.0
Turn
→
Code 11
Press , Code
11 blinks.
Turn
→
No
Press
Change pressure limit and control parame
-
ters:
Note: Do not change the pressure limit
(Code 16). Only change the control param
-
eters K
P
(Code 17) and T
V
(Code 18) if the
settings of the replaced positioner are
known.
Pressure limit
Default: No
KP stage
Default: 7
TV stage
Default: 2
Turn
→
Code 16/17/18
Press , Code
16/17/18 blinks.
Turn and set the selected control param
-
eter.
Press to confirm setting.
Enter closing direction and blocking posi
-
tion:
Closing direction
Direction of rotation causing
the valve to move to the
CLOSED position (view onto
positioner display)
Default: CCL (counterclock
-
wise)
56 EB 8387-3 EN
Start-up – Settings
