4

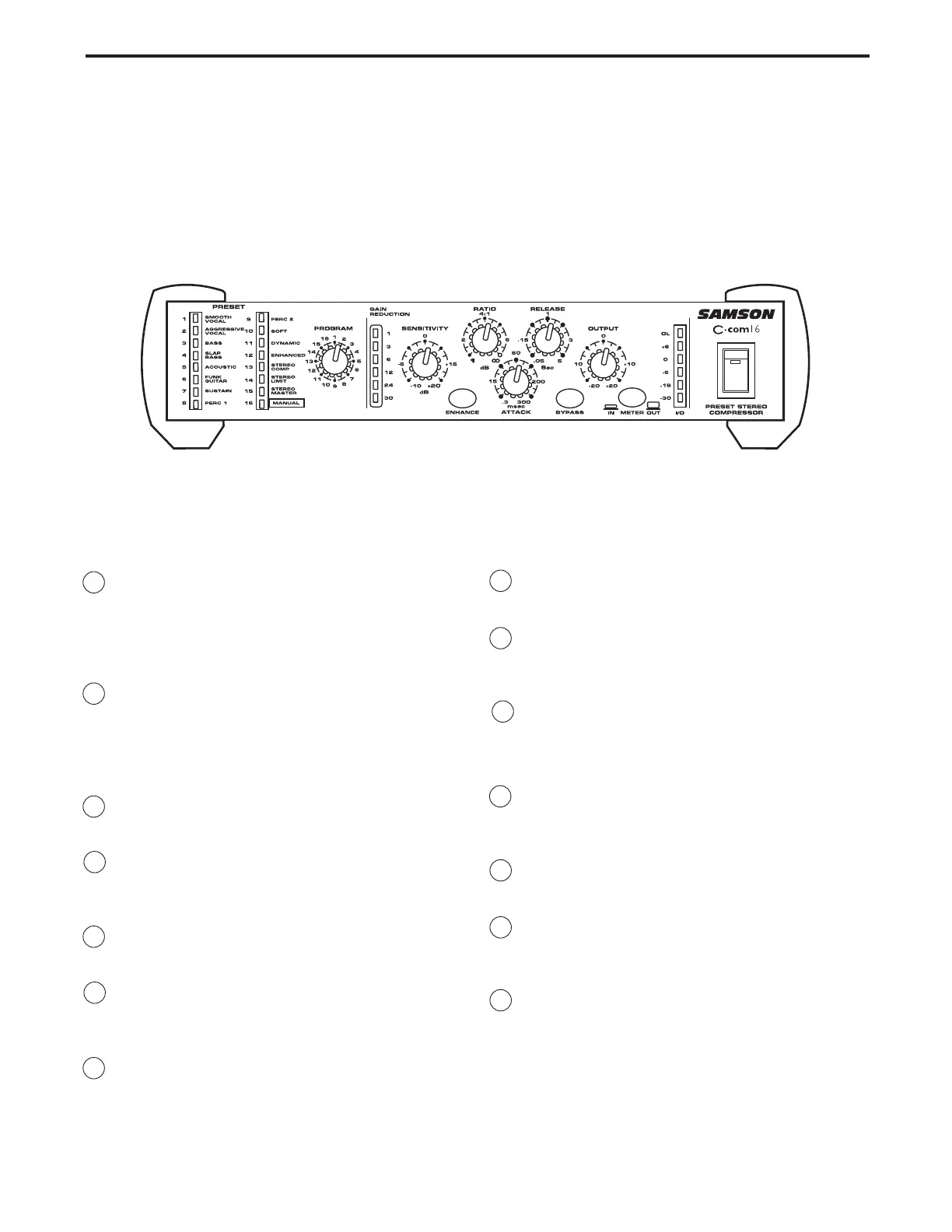

C com 16 Front Panel Layout
1 PROGRAM LED’S 1- 8 – When illuminated, indicates
the associated Program (1-SMOOTH VOCAL, 2-
AGGRESSIVE VOCAL, 3-BASS, 4-SLAP BASS, 5-
ACOUSTIC, 6-FUNK GUITAR, 7-SUSTAIN, 8-PERC 1) is
selected.
2 PROGRAM LED’S 9-16 – When illuminated, indi-
cates the associated Program (9-PERC 2, 10-SOFT,
11-DYNAMIC, 12-ENHANCED, 13-STEREO COMP,
14–STEREO LIMIT,15-STEREO MASTER,16-MANUAL)
is selected.
3 PROGRAM SELECTOR – Rotary encoder control
knob used to select the 16 Programs.
4 GAIN REDUCTION METER - Displays the amount of
Gain Reduction when Compressor circuit is activat-
ed.
5 SENSITIVITY - Used to set the minimum signal level
at which the Compressor circuit begins to function.
6 RATIO - Controls the amount of Gain Reduction in
proportion to the amount of signal over the selected
threshold level.
7 RELEASE - Selects the amount of time the com-
presssor takes to return the signal to the orignal
level.
8 OUTPUT - Used to set the final level after the com-
pression circuit is applied.
9 INPUT/OUTPUT METER - Six segment LED meter
displays the Input or Output signal level based on
the settings of the I/O meter switch.
10 MAINS POWER SWITCH -
When switched on, the
green LED will light, indicating the C com 16 is
powered on and ready for operation.
11 ENHANCER - Activates the C com 16’s Enhancer cir-
cuit which restores the high end loss resulting from
extreme Gain Reduction.
12 ATTACK - Adjusts the amount of time the compres-
sor takes to reach full gain reduction.
13 BYPASS - Used to switch the C com 16’s compres-
sion circuit on and off. The C com 16 is engaged
when the BYPASS LED lights green.
14 INPUT/ OUTPUT METER SELECT SWITCH - Selects
either Input or Output level to be displayed on the
Input/Output Meter.
C com 16 Front Panel Layout
