16
C Com 16 System Set-Ups

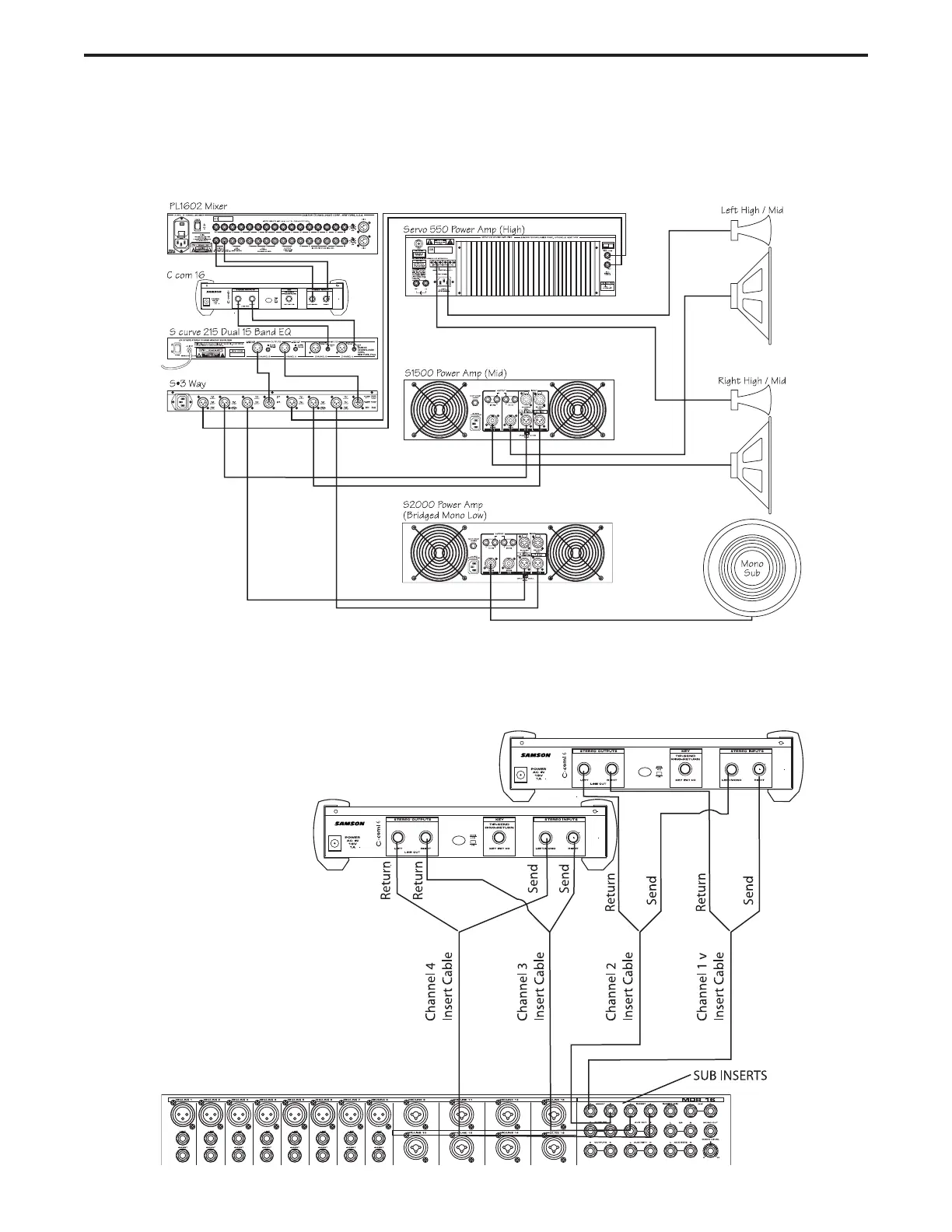

LIVE SOUND SYSTEM WITH STEREO COMPRESSION
In this example, the C Com 16 is inserted after the mixer and before the graphic equalizer,
thereby compressing the full range signal from the mixer.
COMPRESSION SUBGROUPS ON INSERT POINTS
In this example, two C Com 16’s are connected to the the mixer’s insert points on the subgroup outputs.
By assigning the channel inputs to the subgroups, you can individually compress a submix, such as the drums, and seperately
compress a second submix, like the vocals channels, using the subgroup insert points.
