5
AACINLET - The included AC power supply is con-
nected here.
B LEFT OUTPUT - 1/4-inch, TRS (TIP/RING/SLEEVE)
phone connector for the LEFT line-level, balanced
output.
CRIGHT OUTPUT - 1/4-inch, TRS (TIP/RING/SLEEVE)
phone connector for the RIGHT line-level, bal-
anced output.
D OPERATING LEVEL SWITCH - Switches the operat-
ing level from -10dB to +4dB.
EKEY INSERT – 1/4-inch TRS (TIP/RING/SLEEVE)
phone input/output connector used to exter-
nally process the compressors trigger signal.
F LEFT/MONO INPUT - 1/4-inch phone connec-
tor for the LEFT (in stereo operation) or
MONO line-level inputs.
G RIGHT INPUT - 1/4-inch phone connector for
the RIGHT line-level input.

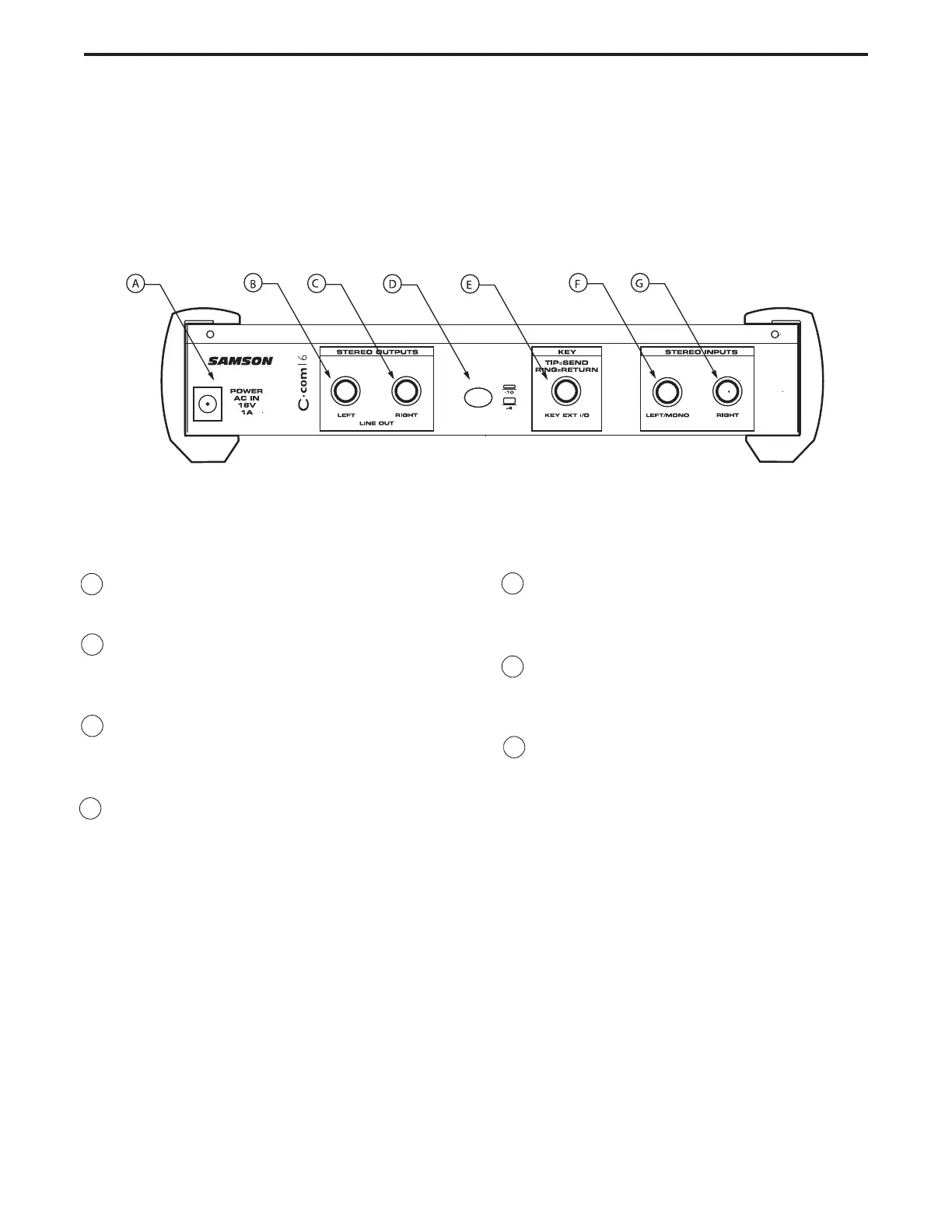

C com 16 Rear Panel Layout
C com 16 Rear Panel Layout
